Siemens 3VA9473-0JC23
Circular conduc. terminal TA2.4 2 x 2/0…600 kcmil for 2 cables with auxiliary conductor voltage tap 3 units…
- MPN
- 3VA9473-0JC23
- Category
- Accessories and Spare Parts
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

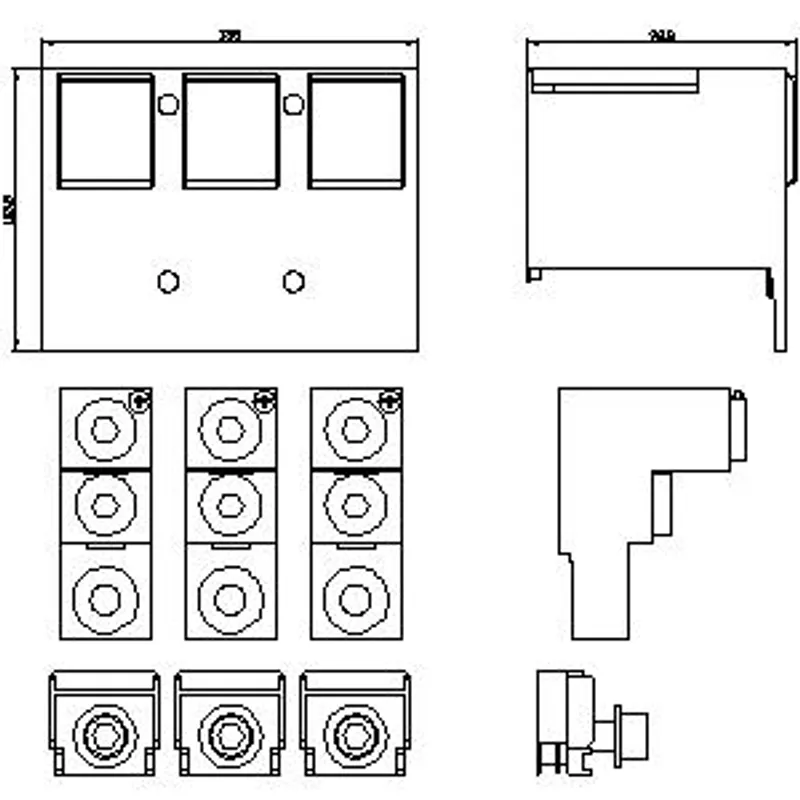

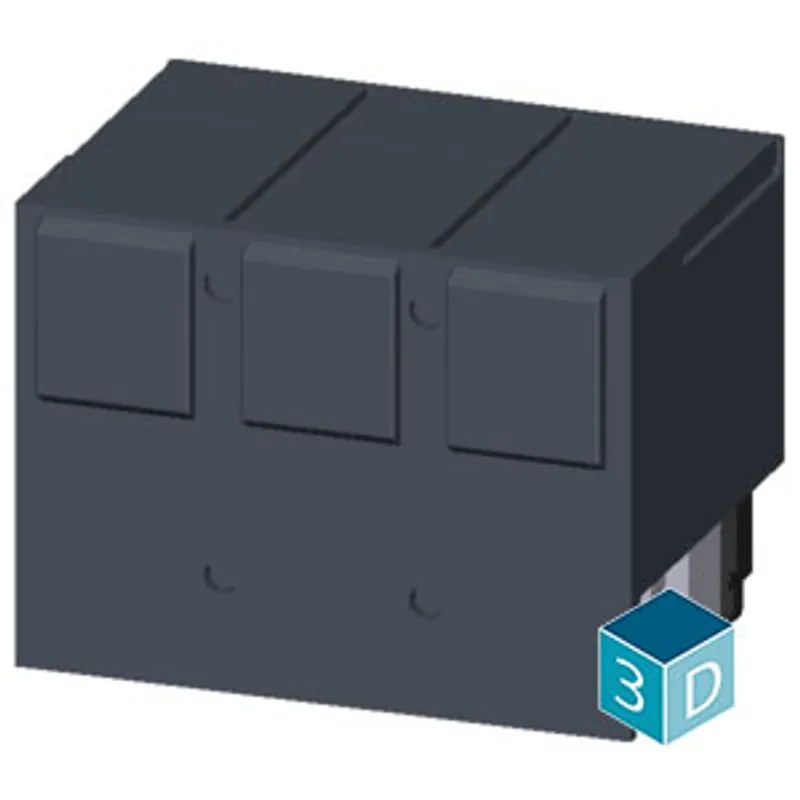

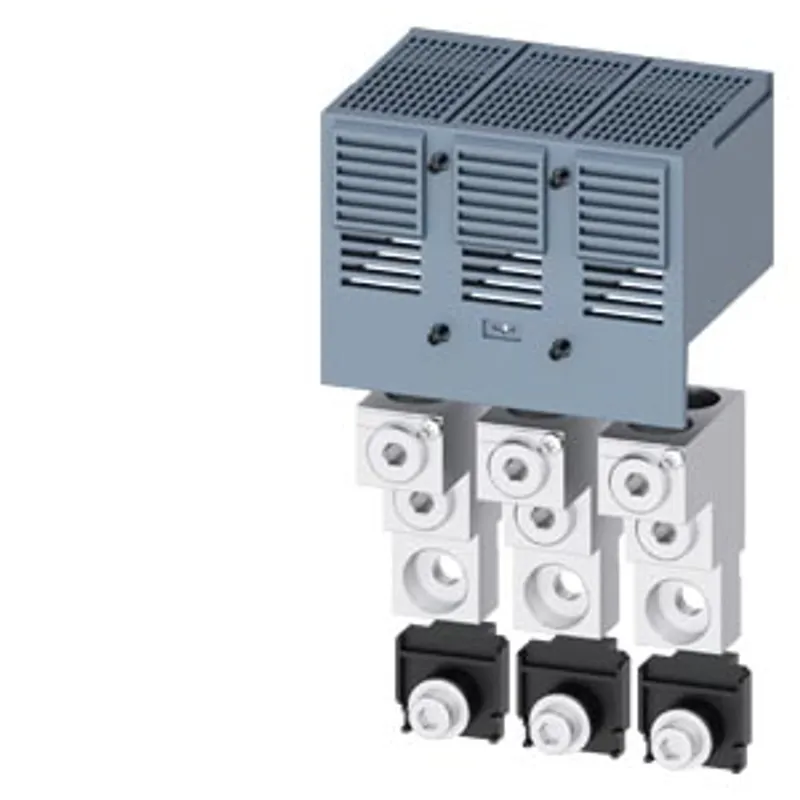

What is the Siemens 3VA9473-0JC23?
circular conduc. terminal TA2.4 2 x 2/0…600 kcmil for 2 cables with auxiliary conductor voltage tap 3 units accessory for: 3VA53/54; 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TA2.4 |
| type of electrical connection / with control wire tap | Yes |
Mechanical Design
| Net Weight | 1.046 kg |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 70 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 70 mm² |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 300 mm² |
| stripped length | 31 / 58,5 mm |
| tightening torque / when using copper cables — stranded | 70 - 300 mm²: 50.8 Nm |
| tightening torque / when using copper cables — finely stranded | 70 - 240 mm²: 50.8 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 70 - 185 mm²: 50.8 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.2 / 2.3 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 2/0 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 600 kcmil |
| connectable conductor cross-section — for aluminum cable / stranded / minimum | 2/0 AWG |
| connectable conductor cross-section — for aluminum cable / stranded / maximum | 600 kcmil |
| tightening torque / when using copper cables — stranded | 2/0 - 600kcmil: 450 lb-in |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
