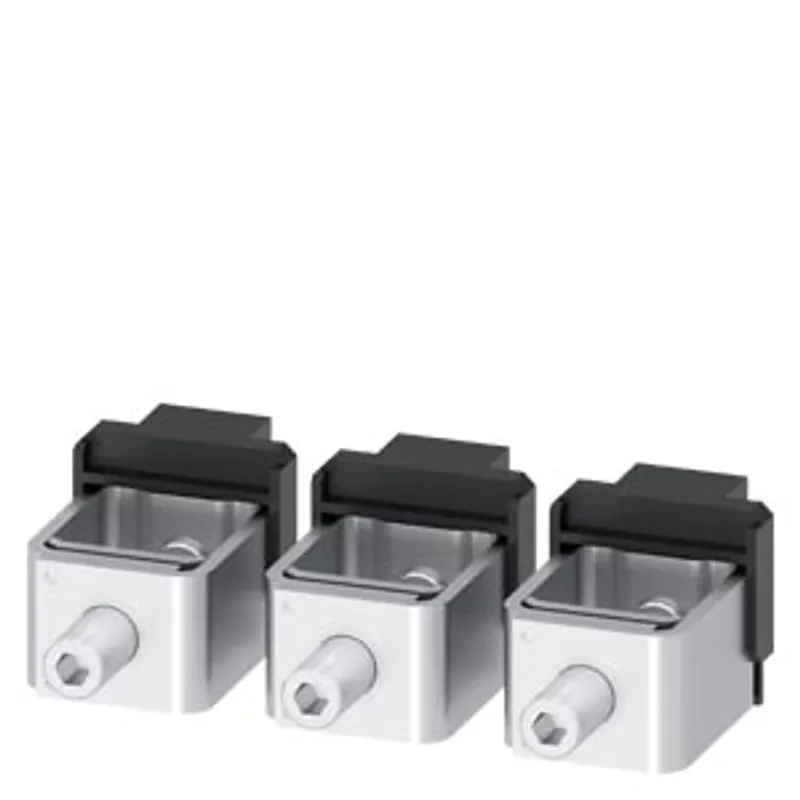

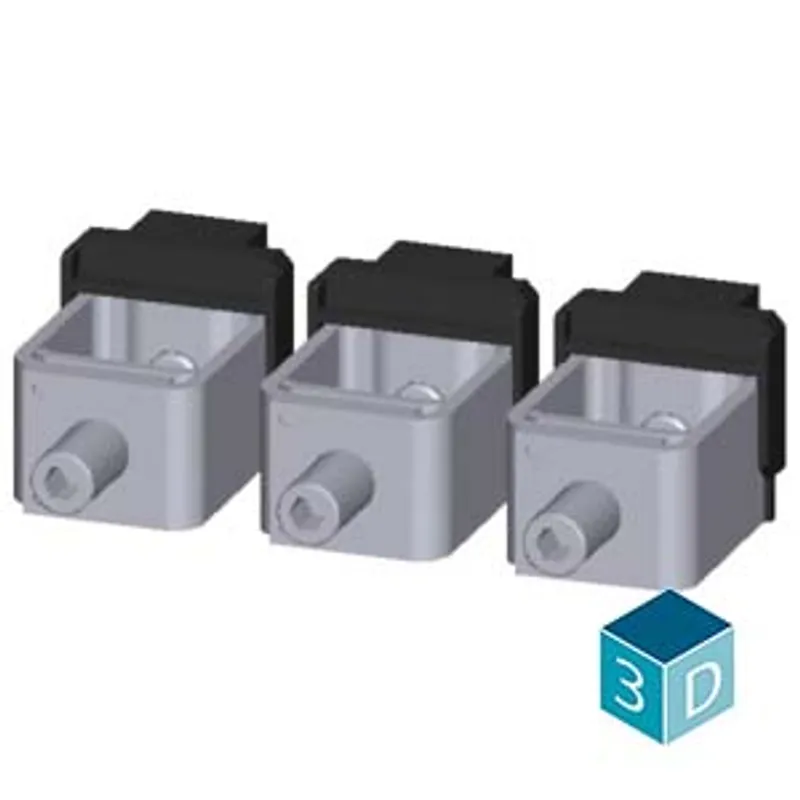

Siemens 3VA9473-0JA13
Box terminal 3 units accessories for: 3VA53, 3VA54 / 3VA63, 3VA64
- MPN
- 3VA9473-0JA13
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9473-0JA13?
box terminal 3 units accessories for: 3VA53, 3VA54 / 3VA63, 3VA64
Specifications
Model
| product brand name | SENTRON |
| product designation | box terminal 3 units |
| design of the product | Connection method |
| accessories | Box terminal |
General technical data
| designation / of the terminal | TS1.5 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 435 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 35 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 300 mm² |
| type of connectable conductor cross-sections / of the laminated conductor rails — minimum | 2 x 20mm x 1mm, 2 x 24mm x 1mm |
| type of connectable conductor cross-sections / of the laminated conductor rails — maximum | 10 x 20mm x 1mm, 10 x 24mm x 1mm |
| stripped length | 26.5 mm |
| tightening torque / when using copper cables — stranded | 35 - 95 mm²: 16 Nm; 120 - 300 mm²: 28 Nm |
| tightening torque / when using copper cables — finely stranded | 35 - 95 mm²: 16 Nm, 120 - 240 mm²: 28 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 35 - 95 mm²: 16 Nm, 120 - 240 mm²: 28 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 1.05 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 1/0 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 500 kcmil |
| tightening torque / when using copper cables — stranded | 1/0 - 4/0: 140 lb-in; 250 - 500 kcmil: 248 lb-in |
