Siemens 3VA9447-0HC15
Synchronizable stored energy operator (SEO) 24 V DC incl. communications module accessory for: 3VA63/64
- MPN
- 3VA9447-0HC15
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9447-0HC15?
synchronizable stored energy operator (SEO) 24 V DC incl. communications module accessory for: 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | SEO motor operator |
| accessories | Motorized operating mechanism with stored energy mechanism (SEO) |
General technical data
| make time / typical | 0.08 s |
| break time / typical | 5 s |
Voltage
| type of voltage / of the operating voltage / for actuation | DC |
| Rated control supply voltage Us with DC — minimum | 24 V |
| Rated control supply voltage Us with DC — maximal | 24 V |
| operating apparent power | 300 V·A |

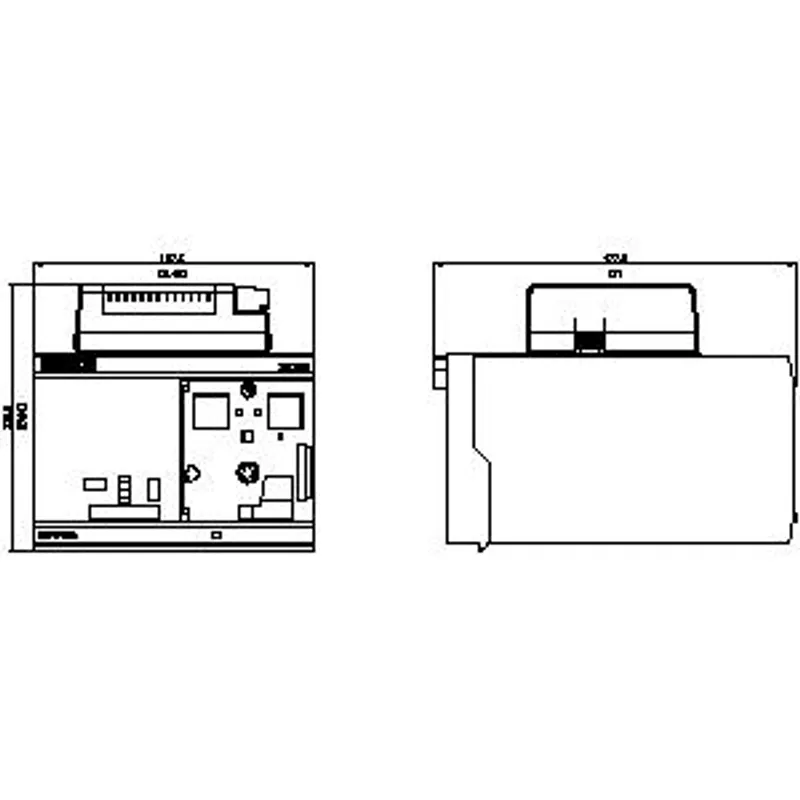

Mechanical Design
| height | 127.4 mm |
| width | 137.5 mm |
| depth | 159 mm |
| Net Weight | 2.177 kg |
| connectable conductor cross-section / solid — minimum | 1.5 mm² |
| connectable conductor cross-section / solid — maximum | 2.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — minimum | 1.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — maximum | 2.5 mm² |
| connectable conductor cross-section / stranded — minimum | 1.5 mm² |
| connectable conductor cross-section / stranded — maximum | 2.5 mm² |
| tightening torque — minimum | 0.36 N·m |
| tightening torque — maximum | 0.44 N·m |
Connections according IEC
| stripped length | 7 mm |
Connetctions according UL
| ambient temperature / during operation — minimum | -25 °C |
| ambient temperature / during operation — maximum | 70 °C |
| ambient temperature / during storage — minimum | -40 °C |
| ambient temperature / during storage — maximum | 80 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9447-0HC15: frequently asked questions
When can 3VA9447-0HC15 be shipped?
3VA9447-0HC15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9447-0HC15 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9447-0HC15 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9447-0HC15, subject to availability and destination.
