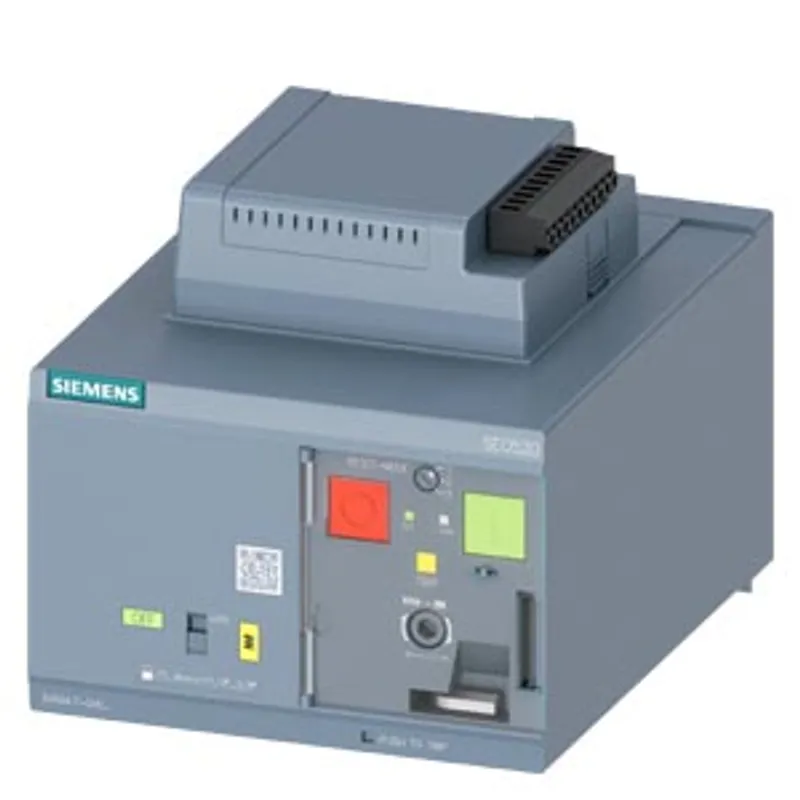

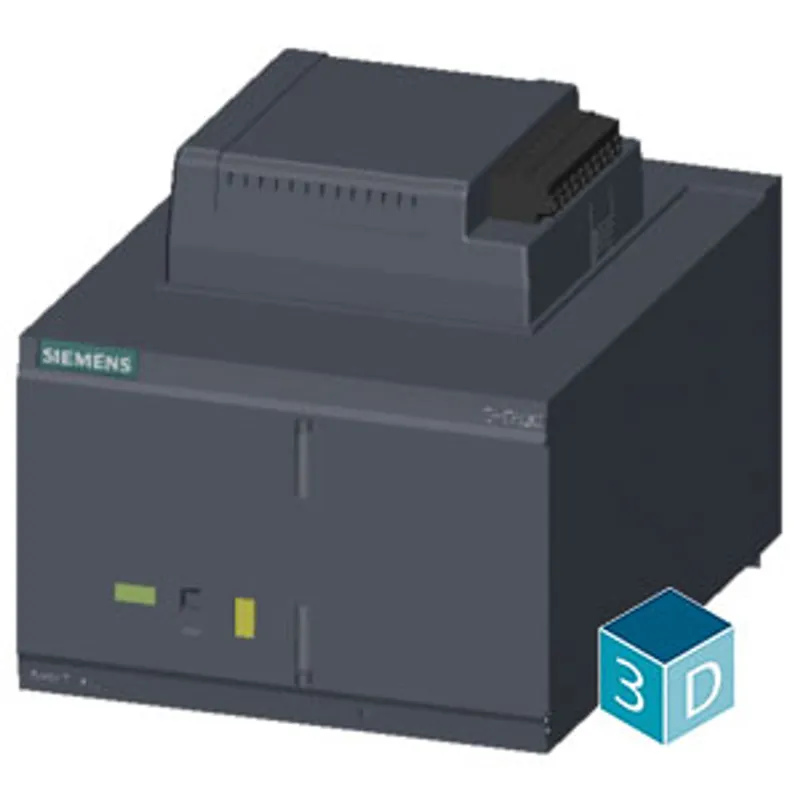

Siemens 3VA9447-0HC10
Synchronizable stored energy operator (SEO) 24 V DC accessory for: 3VA53/54; 3VA63/64
- MPN
- 3VA9447-0HC10
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9447-0HC10?
synchronizable stored energy operator (SEO) 24 V DC accessory for: 3VA53/54; 3VA63/64
Specifications
Model
| product brand name | SENTRON |
| product designation | SEO motor operator |
| accessories | Motorized operating mechanism with stored energy mechanism (SEO) |
General technical data
| make time / typical | 0.08 s |
| break time / typical | 5 s |
Voltage
| type of voltage / of the operating voltage / for actuation | DC |
| Rated control supply voltage Us with DC — minimum | 24 V |
| Rated control supply voltage Us with DC — maximal | 24 V |
| operating apparent power | 300 V·A |

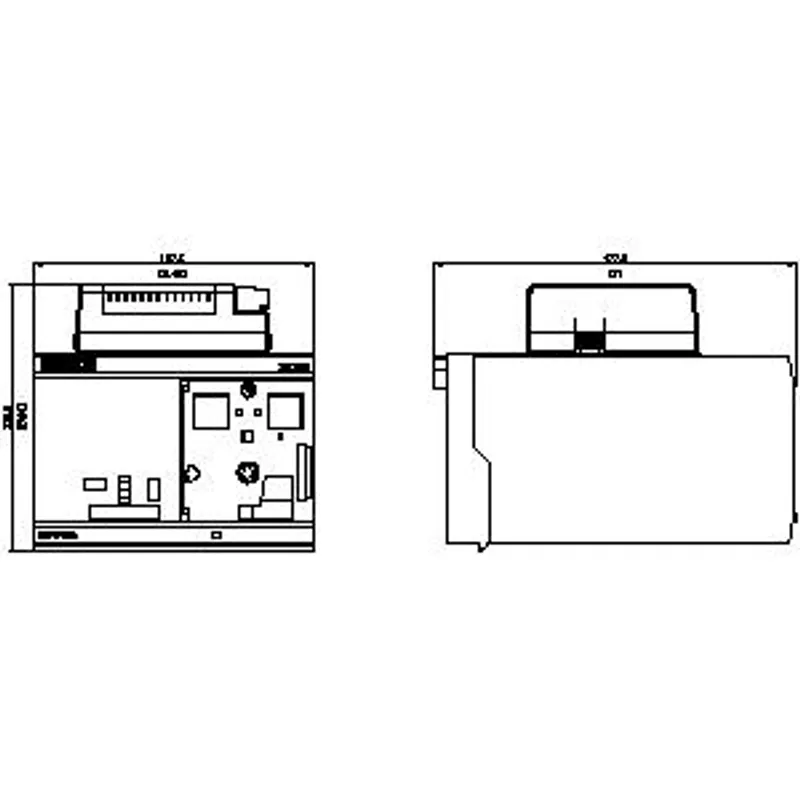

Mechanical Design
| height | 127.4 mm |
| width | 137.5 mm |
| depth | 159 mm |
| Net Weight | 2.164 kg |
| connectable conductor cross-section / solid — minimum | 1.5 mm² |
| connectable conductor cross-section / solid — maximum | 2.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — minimum | 1.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — maximum | 2.5 mm² |
| connectable conductor cross-section / stranded — minimum | 1.5 mm² |
| connectable conductor cross-section / stranded — maximum | 2.5 mm² |
| tightening torque — minimum | 0.36 N·m |
| tightening torque — maximum | 0.44 N·m |
Connections according IEC
| stripped length | 7 mm |
Connetctions according UL
| ambient temperature / during operation — minimum | -25 °C |
| ambient temperature / during operation — maximum | 70 °C |
| ambient temperature / during storage — minimum | -40 °C |
| ambient temperature / during storage — maximum | 80 °C |
