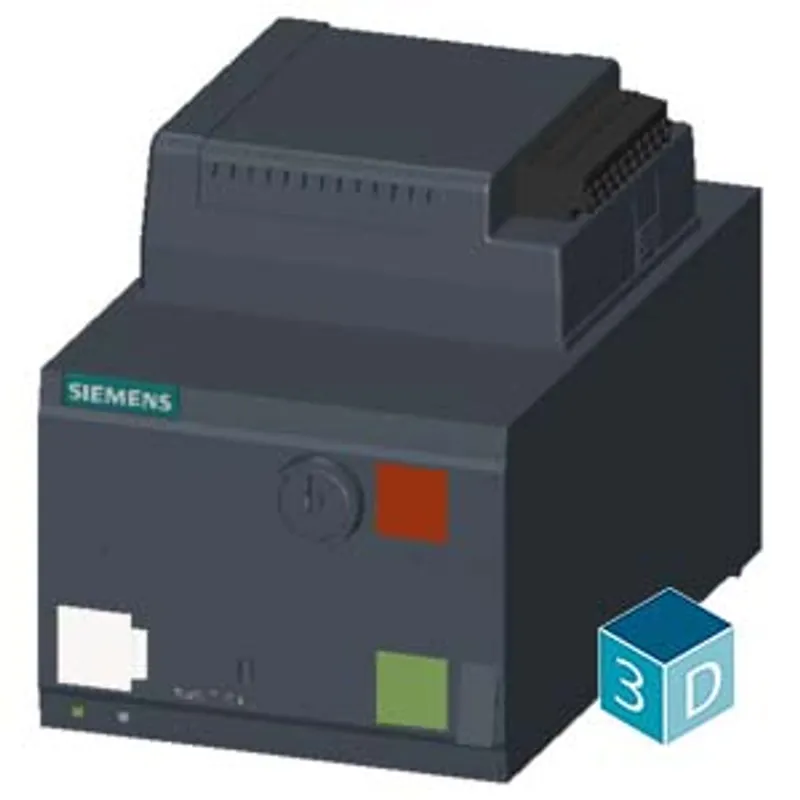

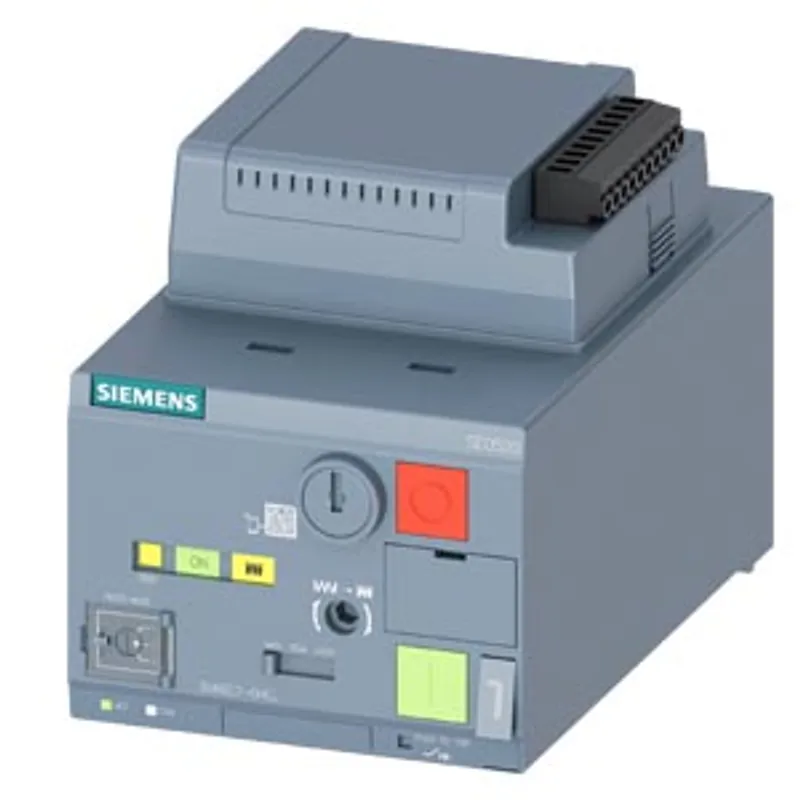

Siemens 3VA9267-0HC15

Synchronizable motor operator 24 V DC incl. COM accessory for: 3VA20/21/22

MPN: 3VA9267-0HC15
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9267-0HC15?

synchronizable motor operator 24 V DC incl. COM accessory for: 3VA20/21/22

Specifications

Model

product brand name	SENTRON
product designation	SEO motor operator
accessories	Motorized operating mechanism with stored energy mechanism (SEO)

General technical data

make time / typical	0.08 s
break time / typical	0.08 s

Voltage

type of voltage / of the operating voltage / for actuation	DC
Rated control supply voltage Us with DC — minimum	24 V
Rated control supply voltage Us with DC — maximal	24 V
operating apparent power	300 VA

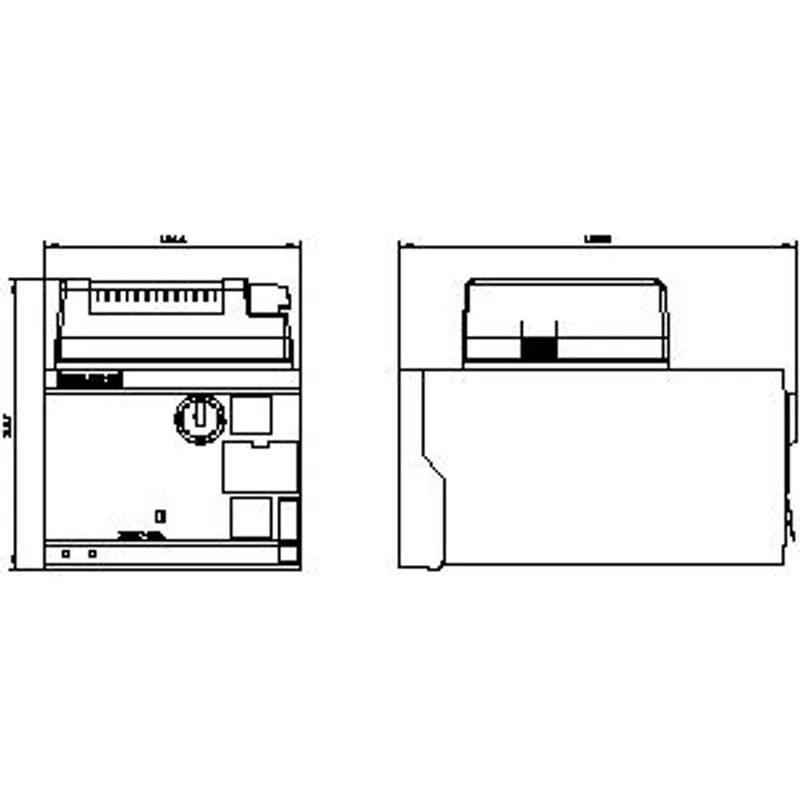

Mechanical Design

height	118.7 mm
width	105 mm
depth	162.8 mm
Net Weight	2.063 kg
connectable conductor cross-section / solid — minimum	1.5 mm²
connectable conductor cross-section / solid — maximum	2.5 mm²
connectable conductor cross-section / finely stranded / with core end processing — minimum	1.5 mm²
connectable conductor cross-section / finely stranded / with core end processing — maximum	2.5 mm²
connectable conductor cross-section / stranded — minimum	1.5 mm²
connectable conductor cross-section / stranded — maximum	2.5 mm²
tightening torque — minimum	0.36 N·m
tightening torque — maximum	0.44 N·m

Connections according IEC

stripped length

7 mm

Connetctions according UL

ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA9267-0HC15PDF
