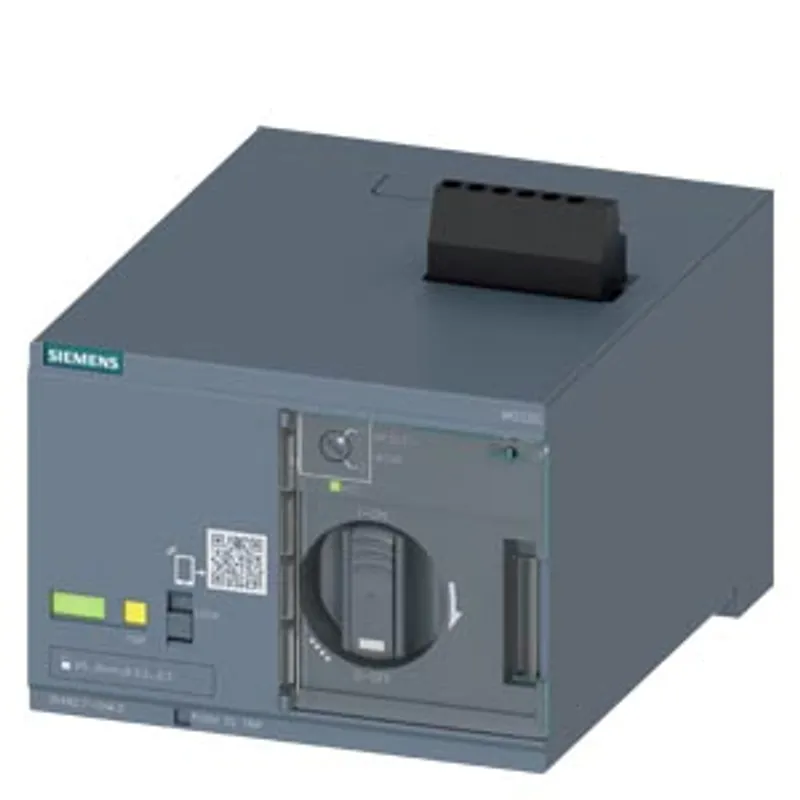

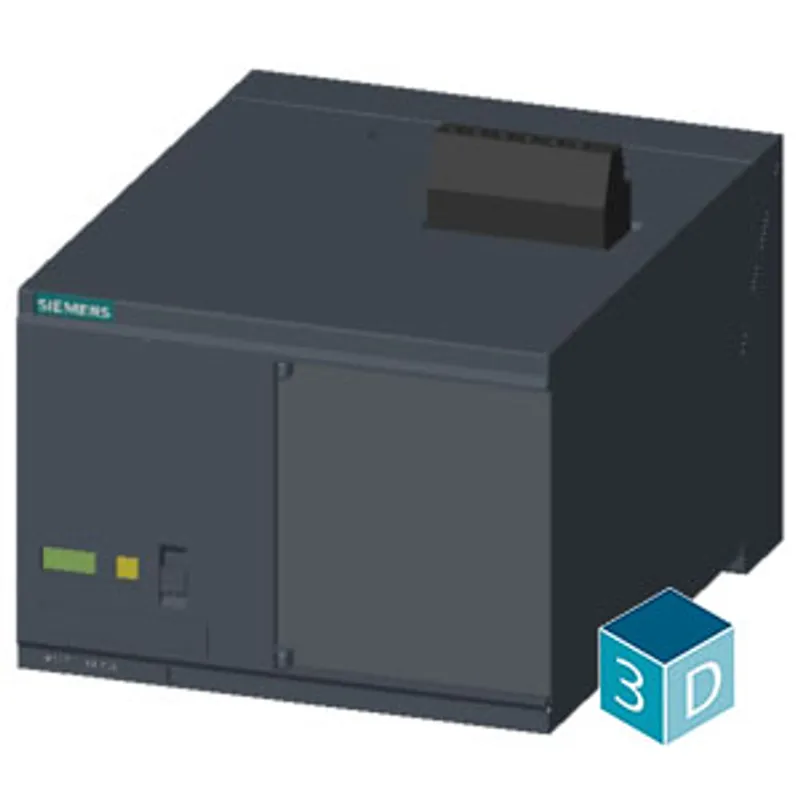

Siemens 3VA9267-0HA20
Motor operator 110-230 V AC/110-250 V DC accessory for: 3VA20/21/22
- MPN
- 3VA9267-0HA20
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9267-0HA20?
motor operator 110-230 V AC/110-250 V DC accessory for: 3VA20/21/22
Specifications
Model
| product brand name | SENTRON |
| product designation | Motor operator (MO) |
| accessories | Motorized operating mechanism (MO) |
General technical data
| make time / typical | 1 s |
| break time / typical | 1 s |
Voltage
| type of voltage / of the operating voltage / for actuation | AC/DC |
| Rated control supply voltage Us at AC 50 Hz — minimum | 110 V |
| Rated control supply voltage Us at AC 50 Hz — maximum | 230 V |
| Rated control supply voltage Us at AC 60 Hz /minimum | 110 V |
| Rated control supply voltage Us at AC 60 Hz / maximum | 230 V |
| Rated control supply voltage Us with DC — minimum | 110 V |
| Rated control supply voltage Us with DC — maximal | 250 V |
| operating apparent power | 250 VA |

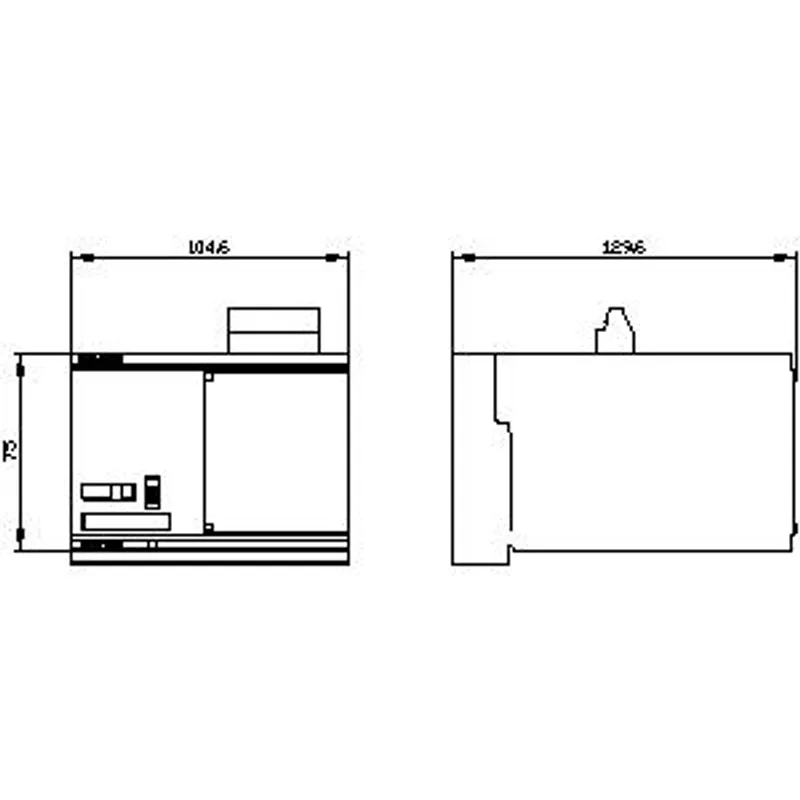

Mechanical Design
| height | 75 mm |
| width | 105 mm |
| depth | 132 mm |
| Net Weight | 908 g |
| connectable conductor cross-section / solid — minimum | 1.5 mm² |
| connectable conductor cross-section / solid — maximum | 2.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — minimum | 1.5 mm² |
| connectable conductor cross-section / finely stranded / with core end processing — maximum | 2.5 mm² |
| connectable conductor cross-section / stranded — minimum | 1.5 mm² |
| connectable conductor cross-section / stranded — maximum | 2.5 mm² |
| tightening torque — minimum | 0.36 N·m |
| tightening torque — maximum | 0.44 N·m |
Connections according IEC
| stripped length | 7 mm |
Connetctions according UL
| ambient temperature / during operation — minimum | -25 °C |
| ambient temperature / during operation — maximum | 70 °C |
| ambient temperature / during storage — minimum | -40 °C |
| ambient temperature / during storage — maximum | 80 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9267-0HA20: frequently asked questions
When can 3VA9267-0HA20 be shipped?
3VA9267-0HA20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9267-0HA20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9267-0HA20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9267-0HA20, subject to availability and destination.
