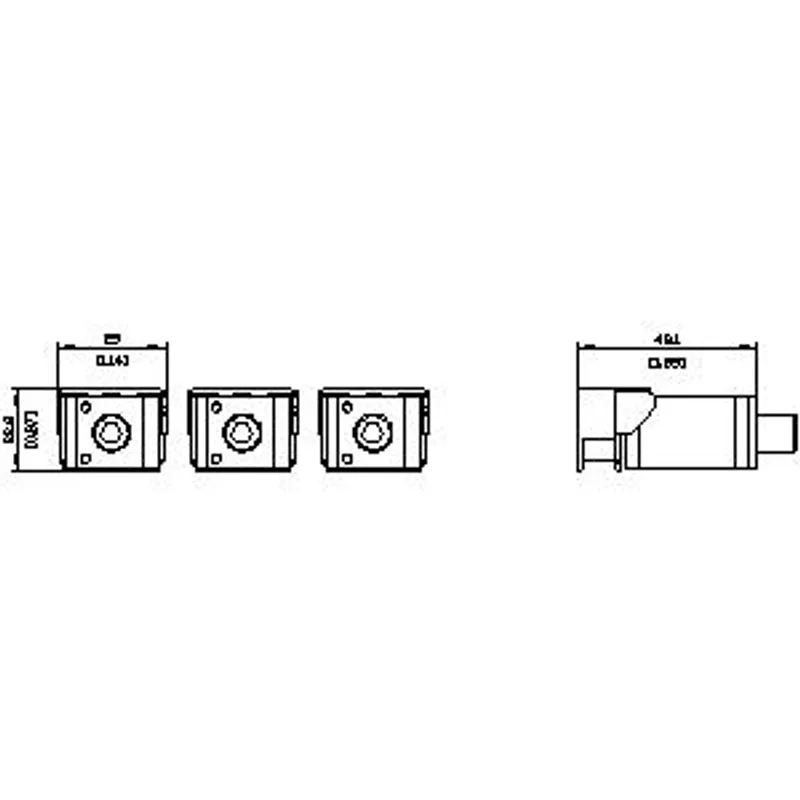

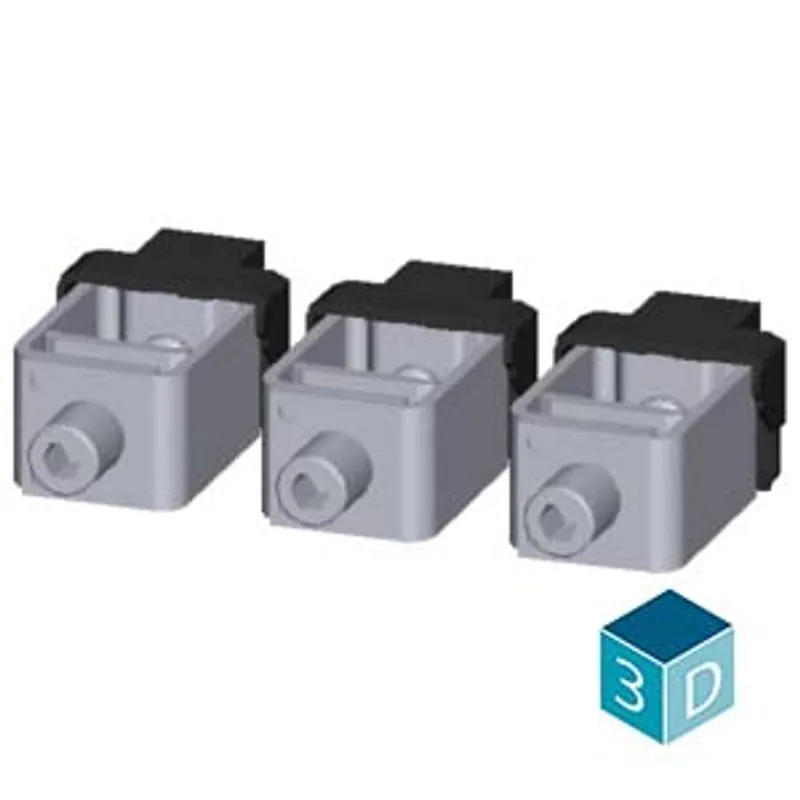

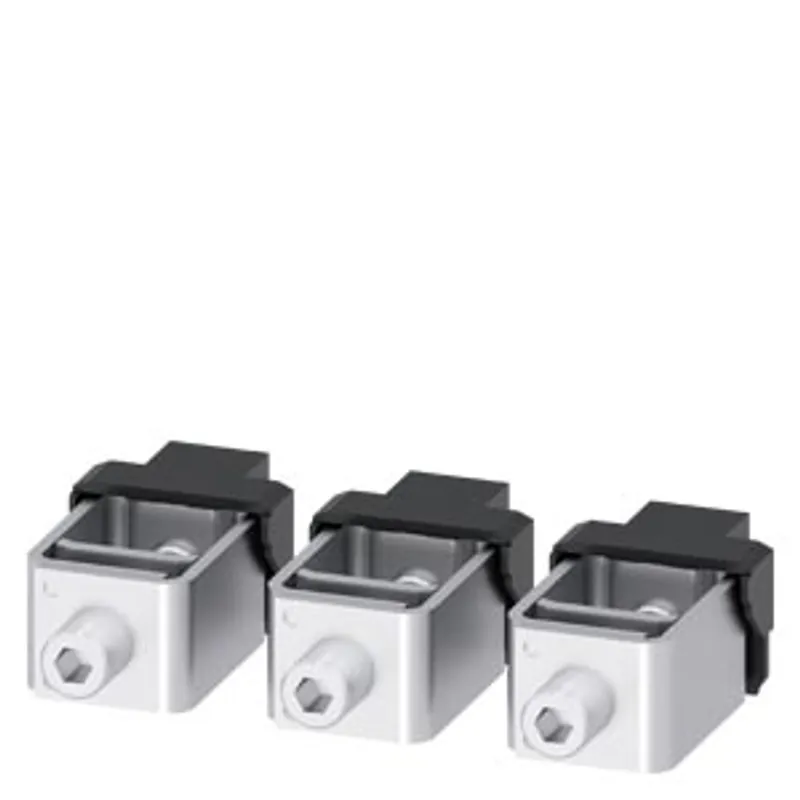

Siemens 3VA9243-0JA12
Box terminal; 3 units accessory for: 3VA61/62
- MPN
- 3VA9243-0JA12
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9243-0JA12?
box terminal; 3 units accessory for: 3VA61/62
Specifications
Model
| product brand name | SENTRON |
| product designation | box terminal 3 units |
| design of the product | Connection method |
| accessories | Box terminal |
General technical data
| designation / of the terminal | TS1.4 |
| type of electrical connection / with control wire tap | No |
Mechanical Design
| Net Weight | 197 g |
Connections according IEC
| connectable conductor cross-section — for copper cable / stranded / minimum | 25 mm² |
| connectable conductor cross-section — for copper cable / stranded / maximum | 185 mm² |
| type of connectable conductor cross-sections / of the laminated conductor rails — minimum | 5 x 15.5mm x 0.8mm, 4 x 20mm x 1mm |
| type of connectable conductor cross-sections / of the laminated conductor rails — maximum | 6 x 15.5mm x 0.8mm, 6 x 20mm x 1mm |
| stripped length | 19 mm |
| tightening torque / when using copper cables — stranded | 25 - 35 mm²: 6 Nm, 50 - 185 mm²: 12 Nm |
| tightening torque / when using copper cables — finely stranded | 35 mm²: 6 Nm 50 -150 mm²: 12 Nm |
| tightening torque / when using copper cables — finely stranded / with core end processing | 25 - 35 mm²: 6 Nm, 50 -150 mm²: 12 Nm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 75 °C |
| stripped length | 0.75 in |
| connectable conductor cross-section — for copper cable / stranded / minimum | 4 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 350 kcmil |
| tightening torque / when using copper cables — stranded | 4 - 1 AWG: 70 lb-in; 1/0 AWG - 350 kcmil: 140 lb-in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9243-0JA12: frequently asked questions
When can 3VA9243-0JA12 be shipped?
3VA9243-0JA12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9243-0JA12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9243-0JA12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9243-0JA12, subject to availability and destination.
