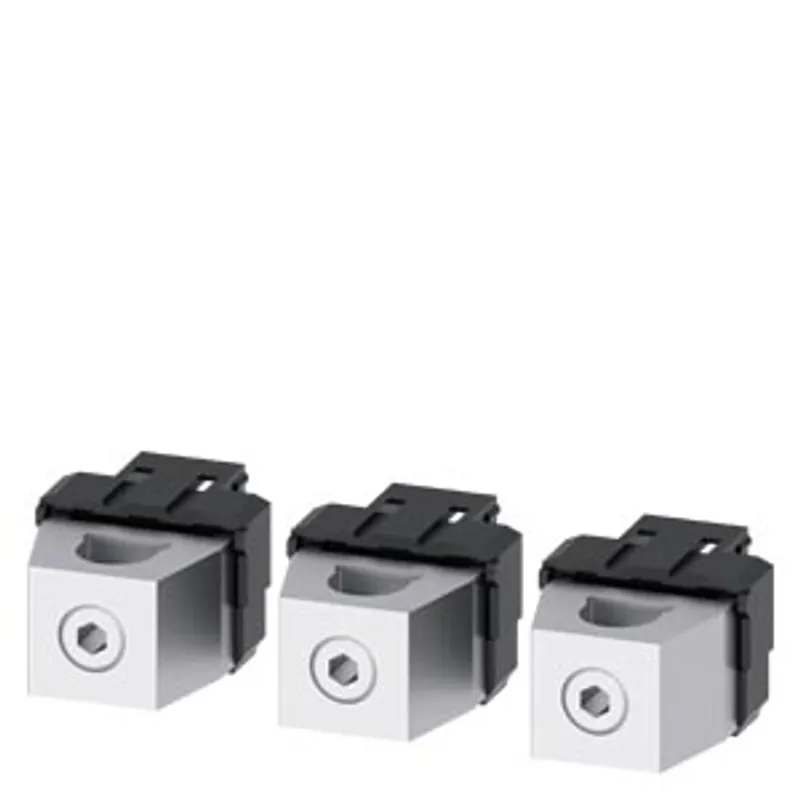

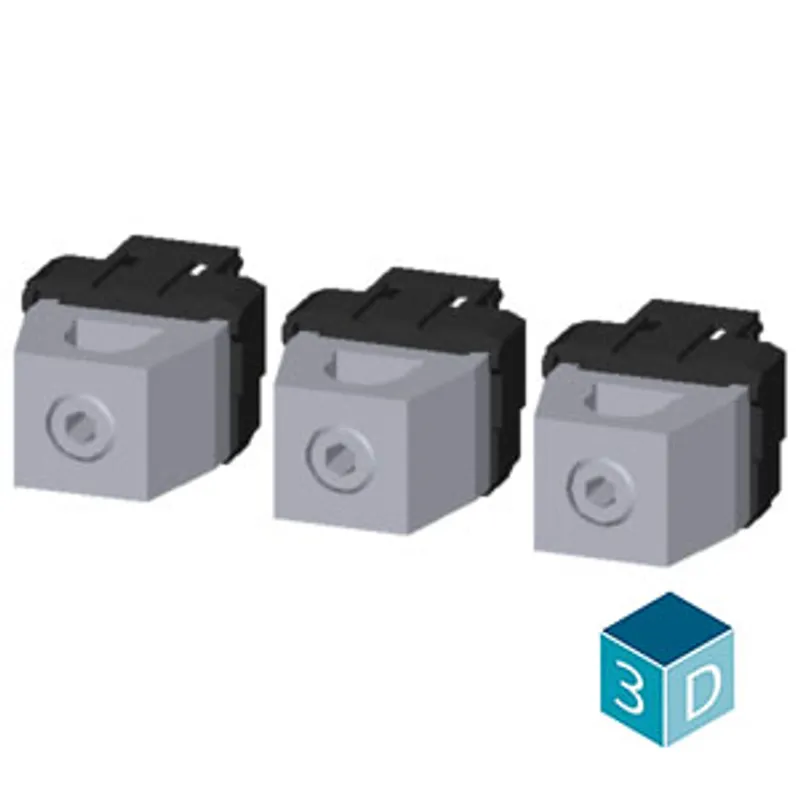

Siemens 3VA9143-0JD11
Wire connector TC1.3 14 AWG...1/0 Cu 3 units accessory for: 3VA61/62
- MPN
- 3VA9143-0JD11
- Category
- Accessories and Spare Parts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3VA9143-0JD11?
wire connector TC1.3 14 AWG...1/0 Cu 3 units accessory for: 3VA61/62
Specifications
Model
| product brand name | SENTRON |
| product designation | circular conductor terminal |
| design of the product | Connection method |
| accessories | Wire connector |
General technical data
| designation / of the terminal | TC1.3 |
| type of electrical connection / with control wire tap | No |

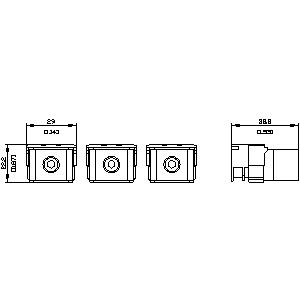

Mechanical Design
| Net Weight | 224 g |
Connections according IEC
| stripped length | 18 mm |
Connetctions according UL
| permissible temperature / of connectable conductor / according to UL 486A-486B | 90 °C |
| stripped length | 0.7 in |
| connectable conductor cross-section — for copper cable / solid / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / solid / maximum | 10 AWG |
| connectable conductor cross-section — for copper cable / stranded / minimum | 14 AWG |
| connectable conductor cross-section — for copper cable / stranded / maximum | 1/0 AWG |
| tightening torque / when using copper cables — solid | 14-10 AWG: 55 lb-in |
| tightening torque / when using copper cables — stranded | 14 - 8 AWG: 55.0 lb-in; 6 - 2 AWG: 75 lb-in; 1 - 1/0 AWG: 120 lb-in |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3VA9143-0JD11: frequently asked questions
When can 3VA9143-0JD11 be shipped?
3VA9143-0JD11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3VA9143-0JD11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3VA9143-0JD11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3VA9143-0JD11, subject to availability and destination.
