Siemens 3VA9143-0JA12

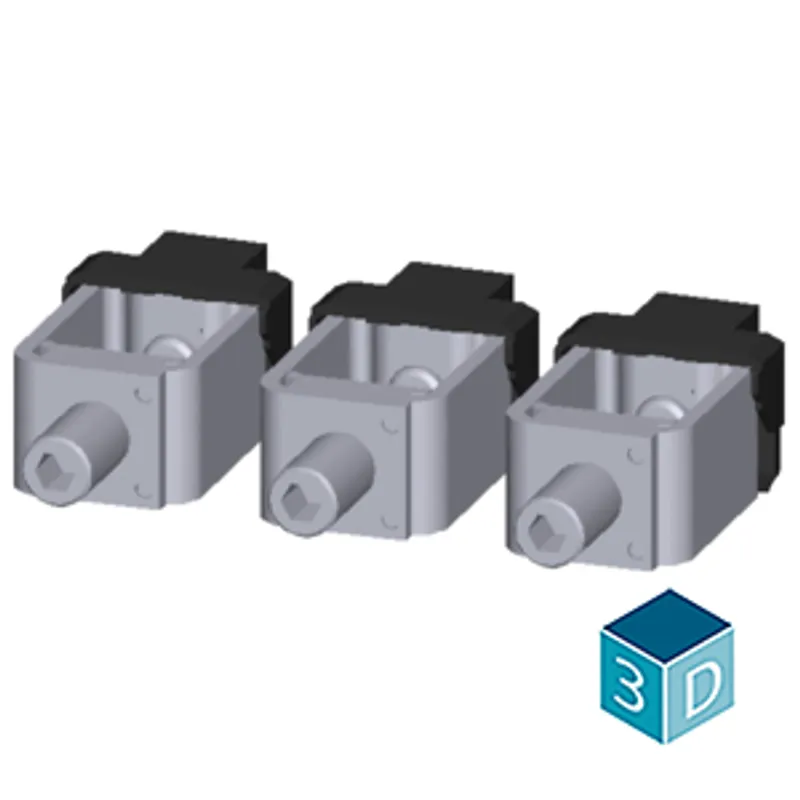

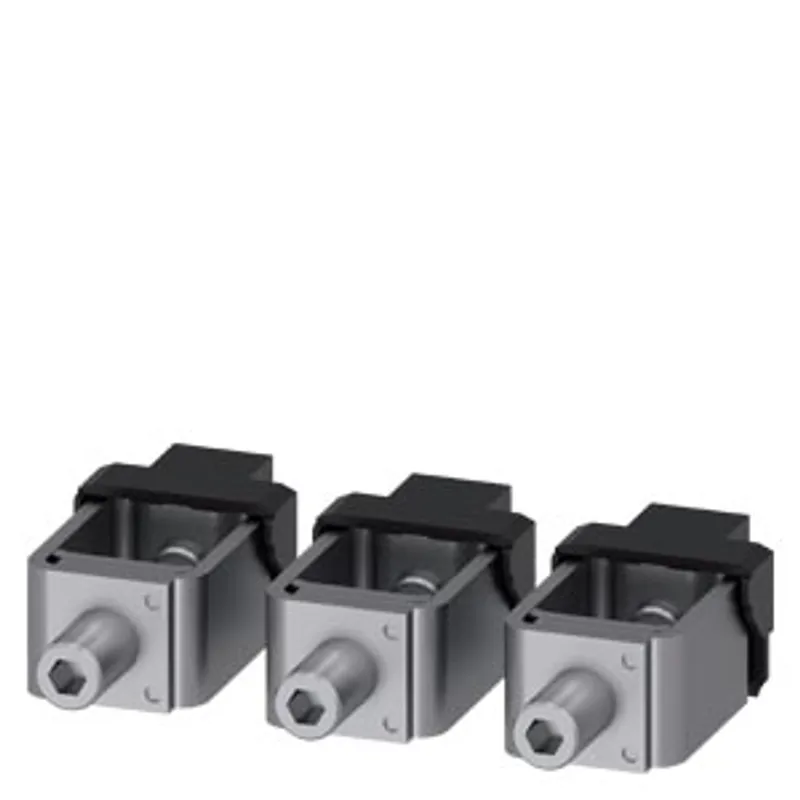

Box terminal; 3 units accessory for: 3VA61/62

MPN: 3VA9143-0JA12
Category: Accessories and Spare Parts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3VA9143-0JA12?

box terminal; 3 units accessory for: 3VA61/62

Specifications

Model

product brand name	SENTRON
product designation	box terminal 3 units
design of the product	Connection method
accessories	Box terminal

General technical data

designation / of the terminal	TS1.2
type of electrical connection / with control wire tap	No

Mechanical Design

Net Weight

167 g

Connections according IEC

connectable conductor cross-section — for copper cable / stranded / minimum	6 mm²
connectable conductor cross-section — for copper cable / stranded / maximum	120 mm²
type of connectable conductor cross-sections / of the laminated conductor rails — minimum	3 x 13mm x 0.5mm, 2 x 15.5mm x 0.8mm, 2 x 20mm x 1mm
type of connectable conductor cross-sections / of the laminated conductor rails — maximum	6 x 13mm x 0.5mm, 6 x 15.5mm x 0.8mm, 6 x 20mm x 1mm
stripped length	19 mm
tightening torque / when using copper cables — solid	6 - 16 mm²: 6 Nm
tightening torque / when using copper cables — stranded	6 - 25 mm²: 6 Nm; 35 - 120 mm²: 10 Nm
tightening torque / when using copper cables — finely stranded	10 - 25 mm²: 6 Nm 35 - 95 mm²: 10Nm
tightening torque / when using copper cables — finely stranded / with core end processing	10 - 25 mm²: 6 Nm, 35 - 95 mm²: 10Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B	75 °C
stripped length	0.75 in
connectable conductor cross-section — for copper cable / solid / minimum	10 AWG
connectable conductor cross-section — for copper cable / solid / maximum	10 AWG
connectable conductor cross-section — for copper cable / stranded / minimum	10 AWG
connectable conductor cross-section — for copper cable / stranded / maximum	3/0 AWG
tightening torque / when using copper cables — solid	10 AWG : 105 lb-in
tightening torque / when using copper cables — stranded	10 - 4 AWG: 105 lb-in, 3 - 3/0 AWG: 140 lb-in
