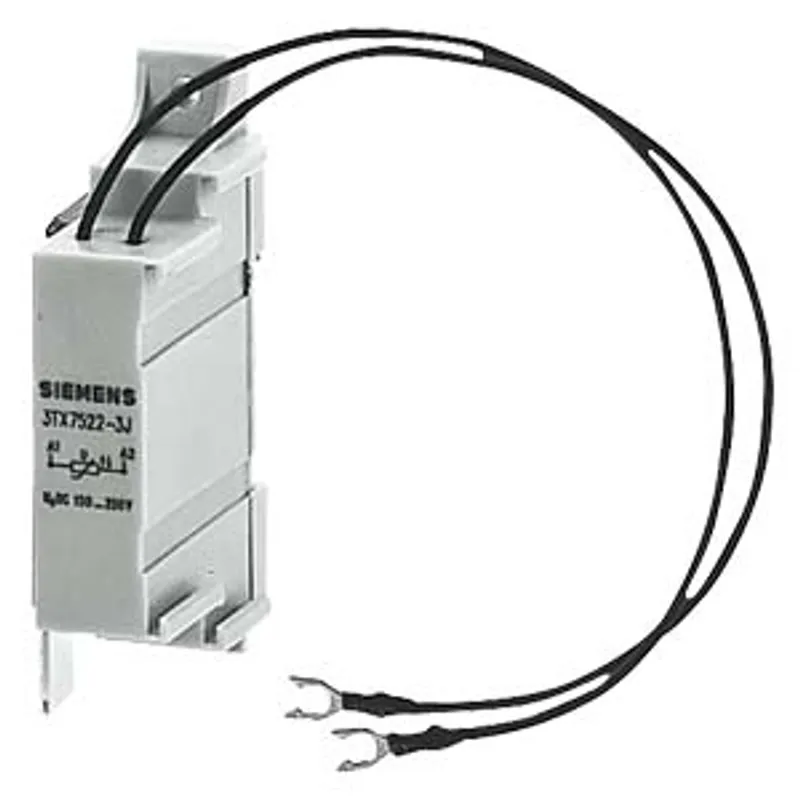

Siemens 3TX7522-3T
Surge suppressor RC element for snapping on 127-240 V AC / 150-250 V DC for contactors Size 8-12
- MPN
- 3TX7522-3T
- Category
- Accessories for 3TC contactors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3TX7522-3T?
Surge suppressor RC element for snapping on 127-240 V AC / 150-250 V DC for contactors Size 8-12, AC operation Size 3-6, DC operation
Specifications
General
| product category | Surge suppressor |
| product designation | RC element |
| product type designation | 3TX7 |
General technical data
| certificate of suitability | CE / UL / CSA |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Triphenyl phosphate CAS-No. 115-86-6 |
| Net Weight | 0.085 kg |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 127 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 127 ... 240 V |
| control supply voltage frequency — 1 rated value | 50 Hz |
| control supply voltage frequency — 2 rated value | 60 Hz |
| control supply voltage at DC rated value | 150 ... 250 V |
| design of the surge suppressor | RC element |
Ambient conditions
| ambient temperature — during operation | -25 ... +55 °C |
| ambient temperature — during storage | -40 ... +80 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3TX7522-3T: frequently asked questions
When can 3TX7522-3T be shipped?
3TX7522-3T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3TX7522-3T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3TX7522-3T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3TX7522-3T, subject to availability and destination.
