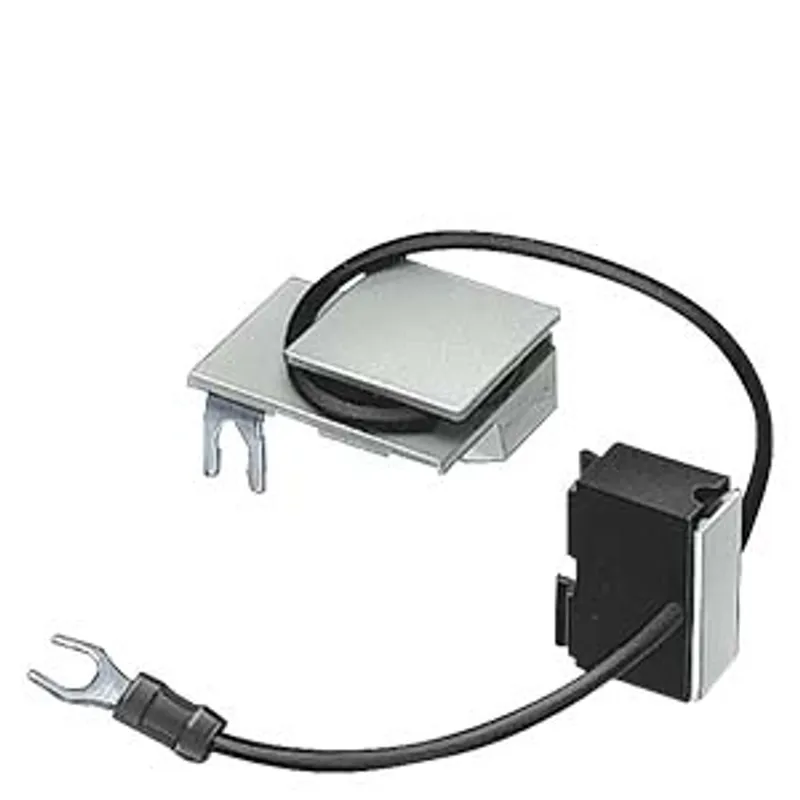

Siemens 3TX7402-3V

Surge suppressor RC element with cable spacer 400-600 V AC for mounting to coil terminal for contactors size…

MPN: 3TX7402-3V
Category: Accessories for 3TH4 auxiliary relays

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3TX7402-3V?

Surge suppressor RC element with cable spacer 400-600 V AC for mounting to coil terminal for contactors size S0-S2

Specifications

General

product category	Surge suppressor
product designation	RC element
product type designation	3TX7
suitability for use	for 3TH4

General technical data

certificate of suitability	CE / UL / CSA
Substance Prohibitance (day/month/year)	03/01/2017
Net Weight	0.022 g
type of voltage of the control supply voltage	AC
control supply voltage at AC — at 50 Hz rated value	400 ... 600 V
control supply voltage at AC — at 60 Hz rated value	400 ... 600 V
control supply voltage frequency — 1 rated value	50 Hz
control supply voltage frequency — 2 rated value	60 Hz
design of the surge suppressor	RC element

Ambient conditions

ambient temperature — during operation	-25 ... +55 °C
ambient temperature — during storage	-40 ... +80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3TX7402-3VPDF
