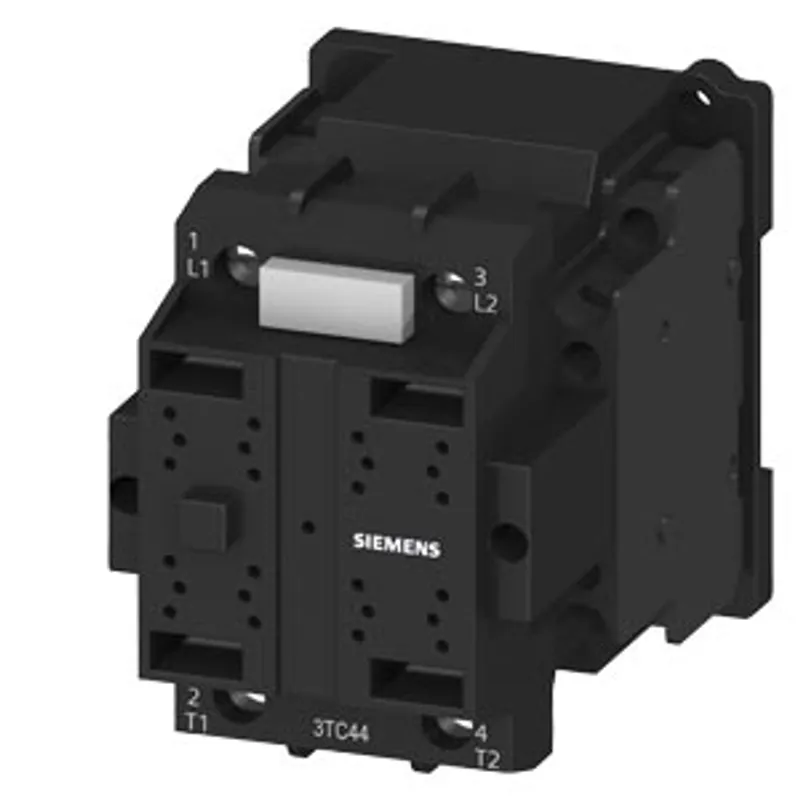

Siemens 3TC4417-0BC1

Contactor, DC-3/DC-5, 32 A, 2-pole, 20 V AC, 50 Hz / 24 V AC, 60 Hz, auxiliary contacts: 2 NO + 2 NC

MPN: 3TC4417-0BC1
Category: 3TC contactors for switching DC voltage, 1-pole and 2-pole

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

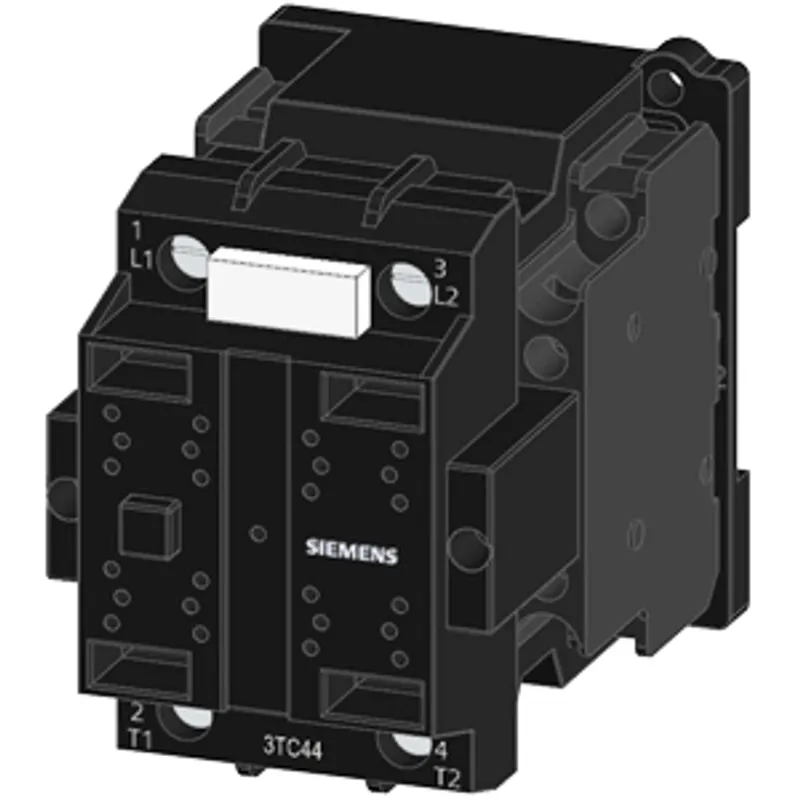

What is the Siemens 3TC4417-0BC1?

contactor, DC-3/DC-5, 32 A, 2-pole, 20 V AC, 50 Hz / 24 V AC, 60 Hz, auxiliary contacts: 2 NO + 2 NC, screw terminal, frame size 2

Specifications

General

product designation	Contactor
product type designation	3TC

General technical data

size of contactor	2
product extension — function module for communication	No
product extension — auxiliary switch	Yes
insulation voltage rated value	800 V
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1	300 V
shock resistance at rectangular impulse — at AC	7,5 g / 5 ms, 3,4 g / 10 ms
mechanical service life (operating cycles) — of contactor typical	10 000 000
mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical	10 000 000
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	02/01/2012
SVHC substance name	Lead CAS-No. 7439-92-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight	0.64 kg

Ambient conditions

ambient temperature — during operation	-25 ... +55 °C
ambient temperature — during storage	-50 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %

Main circuit

number of poles	2
number of poles for main current circuit	2
number of NO contacts for main contacts	2
number of NC contacts for main contacts	0
type of voltage	DC
operational current — at 1 current path at DC-1 — at 24 V rated value	32 A
operational current — at 1 current path at DC-1 — at 110 V rated value	32 A
operational current — at 1 current path at DC-1 — at 220 V rated value	32 A
operational current — with 2 current paths in series at DC-1 — at 24 V rated value	32 A
operational current — with 2 current paths in series at DC-1 — at 110 V rated value	32 A
operational current — with 2 current paths in series at DC-1 — at 220 V rated value	32 A
operational current — with 2 current paths in series at DC-1 — at 440 V rated value	32 A
operational current — with 2 current paths in series at DC-1 — at 600 V rated value	32 A
operational current — with 2 current paths in series at DC-1 — at 750 V rated value	32 A
operational current — at DC-3 at DC-5 — at 220 V rated value	32 A
operational current — at DC-3 at DC-5 — at 600 V rated value	21 A
operational current — at DC-3 at DC-5 — at 750 V rated value	7.5 A
operational current — at 1 current path at DC-3 at DC-5 — at 24 V rated value	32 A
operational current — at 1 current path at DC-3 at DC-5 — at 110 V rated value	32 A
operational current — at 1 current path at DC-3 at DC-5 — at 220 V rated value	32 A
operational current — with 2 current paths in series at DC-3 at DC-5 — at 24 V rated value	32 A
operational current — with 2 current paths in series at DC-3 at DC-5 — at 110 V rated value	32 A
operational current — with 2 current paths in series at DC-3 at DC-5 — at 220 V rated value	32 A
operational current — with 2 current paths in series at DC-3 at DC-5 — at 440 V rated value	29 A
operational current — with 2 current paths in series at DC-3 at DC-5 — at 600 V rated value	21 A
operational current — with 2 current paths in series at DC-3 at DC-5 — at 750 V rated value	7.5 A
operating power — at DC-1 — at 110 V rated value	3.5 kW
operating power — at DC-1 — at 220 V rated value	7 kW
operating power — at DC-1 — at 440 V rated value	14 kW
operating power — at DC-1 — at 750 V rated value	24 kW
operating power — at DC-3 at DC-5 — at 110 V rated value	2.5 kW
operating power — at DC-3 at DC-5 — at 220 V rated value	5 kW
operating power — at DC-3 at DC-5 — at 440 V rated value	9 kW
operating power — at DC-3 at DC-5 — at 600 V rated value	9 kW
operating power — at DC-3 at DC-5 — at 750 V rated value	4 kW
operating frequency — at DC-1 maximum	1 500 1/h
operating frequency — at DC-3 maximum	750 1/h
operating frequency — at DC-5 maximum	750 1/h

Control circuit/ Control

type of voltage of the control supply voltage	AC
control supply voltage at AC — at 50 Hz rated value	20 V
control supply voltage at AC — at 60 Hz rated value	24 V
operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz	0.8 ... 1.1
apparent pick-up power of magnet coil at AC	95 V·A
apparent pick-up power of magnet coil at AC — at 50 Hz	68 V·A
apparent pick-up power of magnet coil at AC — at 60 Hz	95 V·A
inductive power factor with closing power of the coil	0.79
inductive power factor with closing power of the coil — at 50 Hz	0.86
inductive power factor with closing power of the coil — at 60 Hz	0.79
apparent holding power of magnet coil at AC	12 V·A
apparent holding power of magnet coil at AC — at 50 Hz	10 V·A
apparent holding power of magnet coil at AC — at 60 Hz	12 V·A
inductive power factor with the holding power of the coil	0.3
inductive power factor with the holding power of the coil — at 50 Hz	0.29
inductive power factor with the holding power of the coil — at 60 Hz	0.3
arcing time	20 ... 30 ms

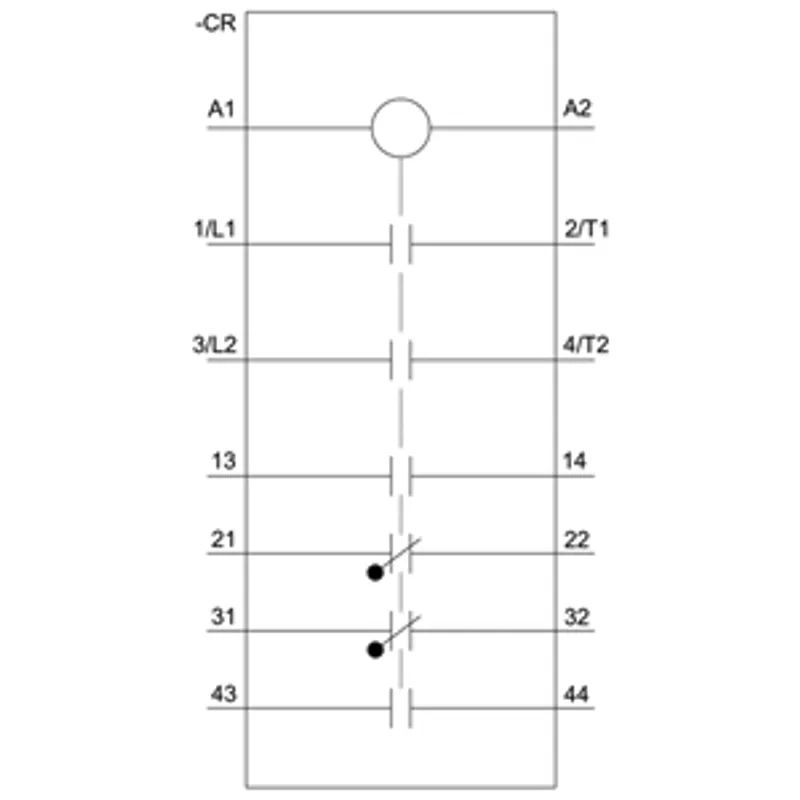

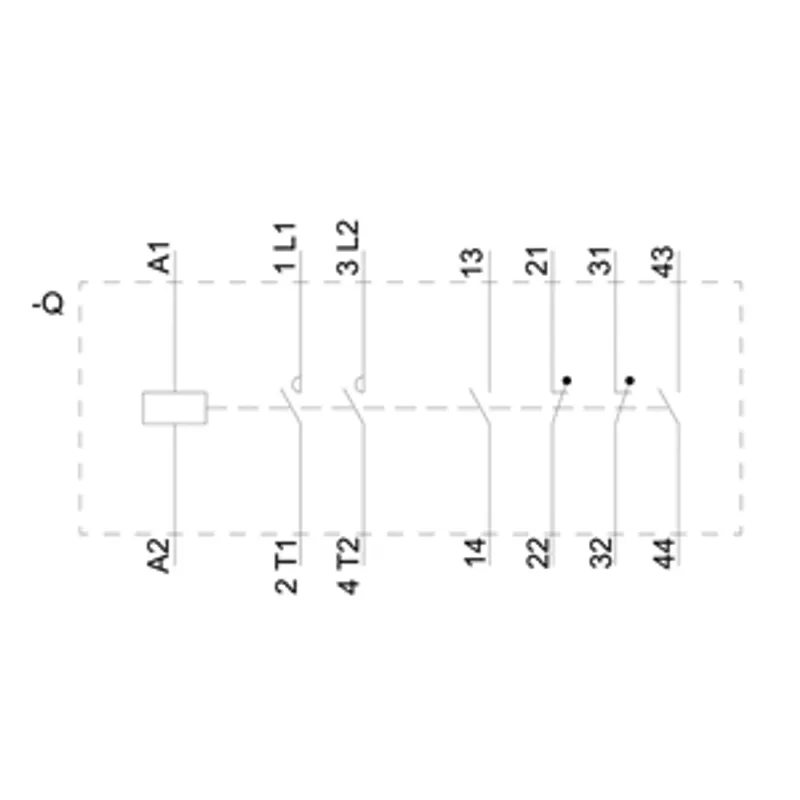

Auxiliary circuit

number of NC contacts for auxiliary contacts	2
number of NC contacts for auxiliary contacts — instantaneous contact	2
number of NO contacts for auxiliary contacts	2
number of NO contacts for auxiliary contacts — instantaneous contact	2
number of CO contacts for auxiliary contacts	0
identification number and letter for switching elements	22
operational current at AC-12 maximum	10 A
operational current at AC-15 — at 230 V rated value	5.6 A
operational current at AC-15 — at 400 V rated value	3.6 A
operational current at AC-15 — at 500 V rated value	2.5 A
operational current at DC-12 — at 24 V rated value	10 A
operational current at DC-12 — at 48 V rated value	10 A
operational current at DC-12 — at 60 V rated value	10 A
operational current at DC-12 — at 110 V rated value	3.2 A
operational current at DC-12 — at 125 V rated value	2.5 A
operational current at DC-12 — at 220 V rated value	0.9 A
operational current at DC-12 — at 600 V rated value	0.22 A
operational current at DC-13 — at 24 V rated value	10 A
operational current at DC-13 — at 48 V rated value	5 A
operational current at DC-13 — at 60 V rated value	5 A
operational current at DC-13 — at 110 V rated value	1.14 A
operational current at DC-13 — at 125 V rated value	0.98 A
operational current at DC-13 — at 220 V rated value	0.48 A
operational current at DC-13 — at 600 V rated value	0.07 A

UL/CSA ratings

contact rating of auxiliary contacts according to UL

A600 / P600

Short-circuit protection

design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 1 required	2 x 3NA3020 (50 A) in series (750 V, 3 kA)
design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 2 required	2 x 3NA3020 (50 A) in series (750 V, 3 kA)
design of the fuse link — for short-circuit protection of the auxiliary switch required	gG: 16 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting position	+/-22,5° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening method side-by-side mounting	Yes
fastening method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022

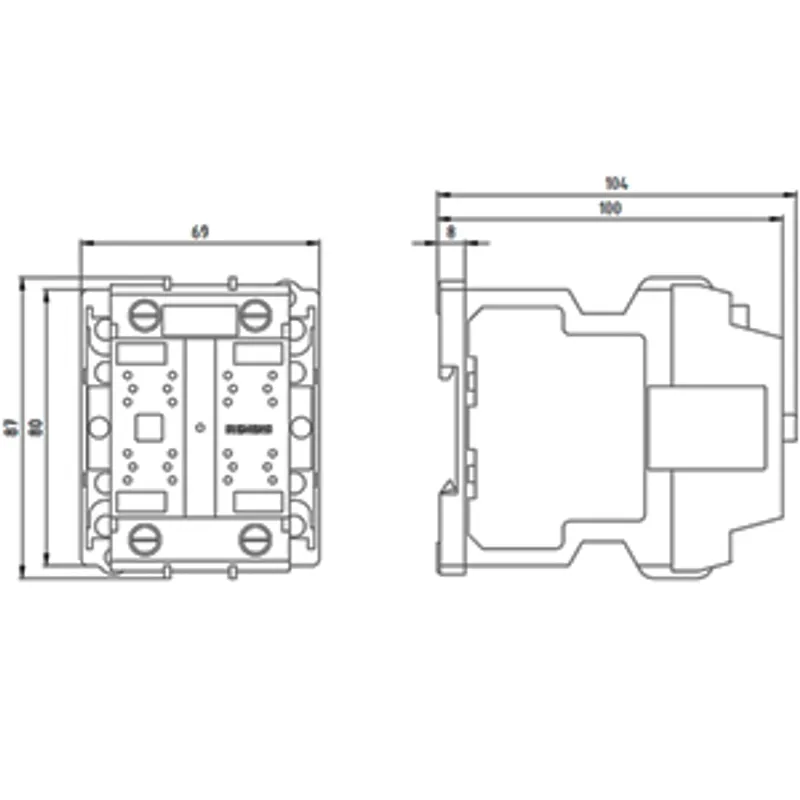

height	85 mm
width	70 mm
depth	104 mm
required spacing — with side-by-side mounting — forwards	15 mm
required spacing — with side-by-side mounting — backwards	0 mm
required spacing — with side-by-side mounting — upwards	10 mm
required spacing — with side-by-side mounting — downwards	10 mm
required spacing — with side-by-side mounting — at the side	10 mm
required spacing — for grounded parts — forwards	30 mm
required spacing — for grounded parts — backwards	0 mm
required spacing — for grounded parts — upwards	10 mm
required spacing — for grounded parts — at the side	10 mm
required spacing — for grounded parts — downwards	10 mm
required spacing — for live parts — forwards	30 mm
required spacing — for live parts — backwards	0 mm
required spacing — for live parts — upwards	10 mm
required spacing — for live parts — downwards	10 mm
required spacing — for live parts — at the side	10 mm

Connections/ Terminals

type of electrical connection	screw terminal
type of electrical connection — for main current circuit	screw-type terminals
type of electrical connection — for auxiliary and control circuit	screw-type terminals
type of connectable conductor cross-sections for main contacts — solid or stranded	2x (2,5 ... 10 mm²)
type of connectable conductor cross-sections for main contacts — finely stranded with core end processing	2x (1.5 ... 4 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded	2x (1 ... 2.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing	2x (0.75 ... 1.5 mm²)

Safety related data

product function mirror contact according to IEC 60947-4-1	Yes; One NC contact each must be connected in series for the right and left auxiliary switch block respectively
protection class IP on the front according to IEC 60529	IP00
