Siemens 3SU1804-0AA00-0AB1
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray
- MPN
- 3SU1804-0AA00-0AB1
- Category
- Empty enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

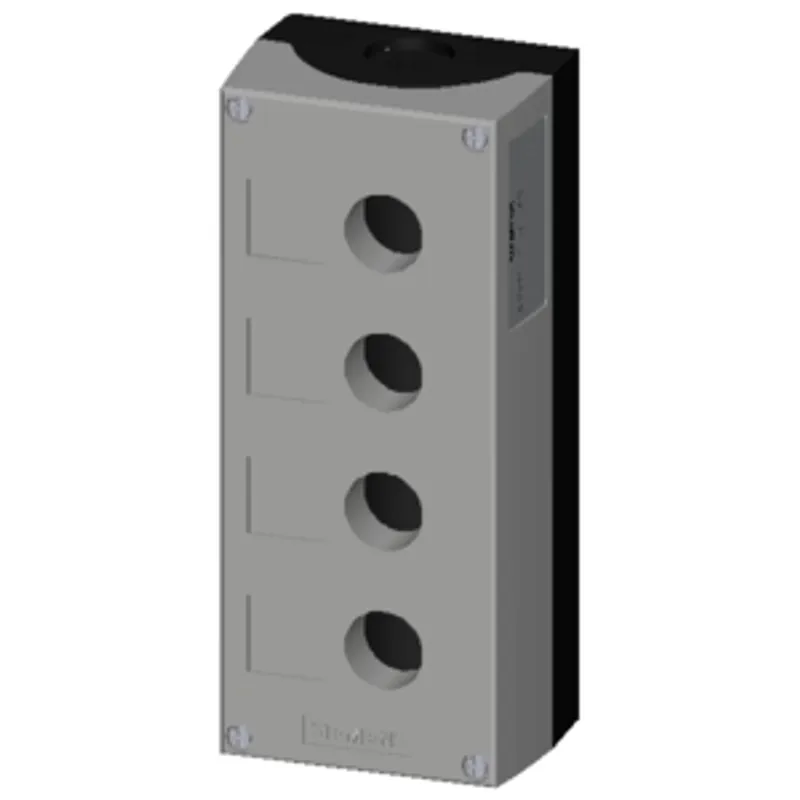

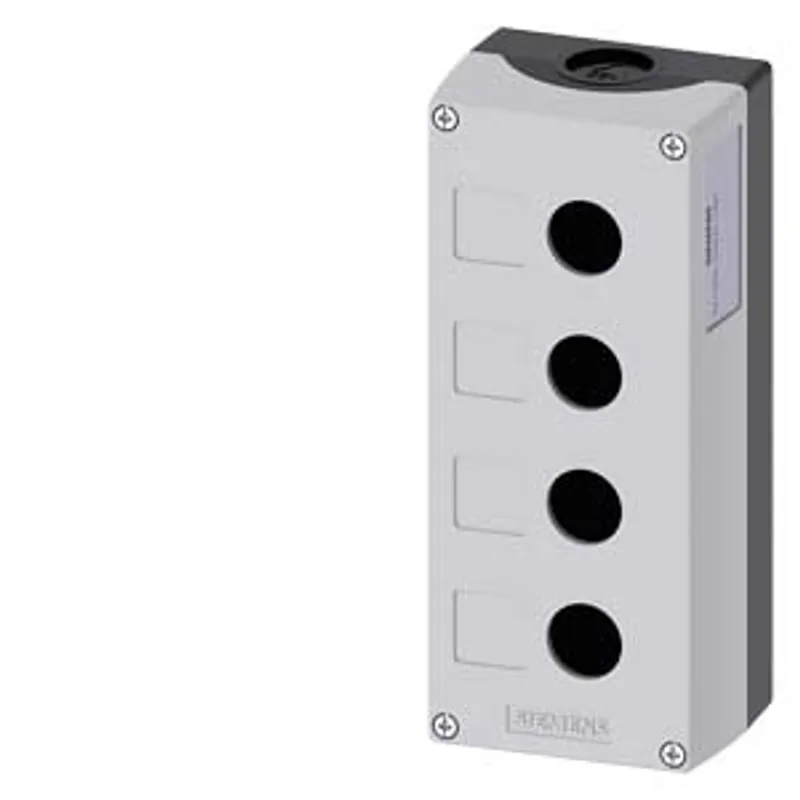

What is the Siemens 3SU1804-0AA00-0AB1?
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 4 control points plastic, Recess for labels, without equipment
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | Enclosures |
| product type designation | 3SU1 |
Enclosure
| design of the housing | with recess for label |
| shape of the enclosure front | rectangular |
| material of the enclosure | plastic |
| number of command points | 4 |
| product component protective collar | No |
| color of the enclosure top part | grey |
| fastening method of the enclosure | Vertical / horizontal |
General technical data
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 434.38 g |
| cable entry type | Without |
Connections/ Terminals
| type of electrical connection on enclosure | Cable routing above and below, both 1 x M25 |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel) |

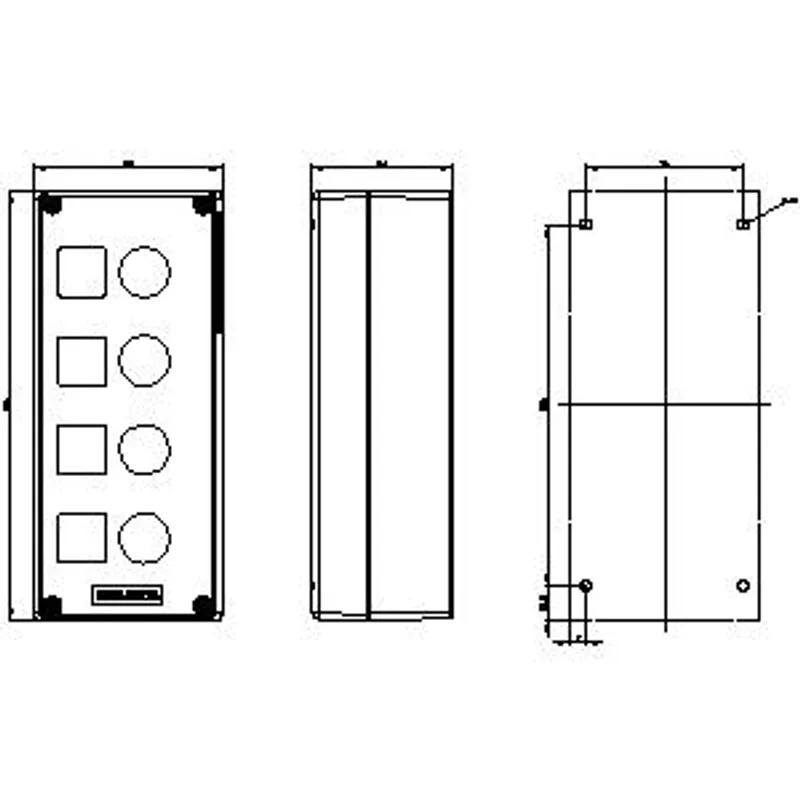

Installation/ mounting/ dimensions
| fastening method of modules and accessories | Floor mounting |
| height | 194 mm |
| width | 85 mm |
| depth | 64 mm |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
