Empty enclosures Parts
Compare Empty enclosures
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | shape of the enclosure front | material of the enclosure | number of command points | Net Weight | height |
|---|---|---|---|---|---|
| 3SU1851-0AA00-0AC2-Z Y19 | Square | metal | 1 | 537.38 g | 89.4 mm |

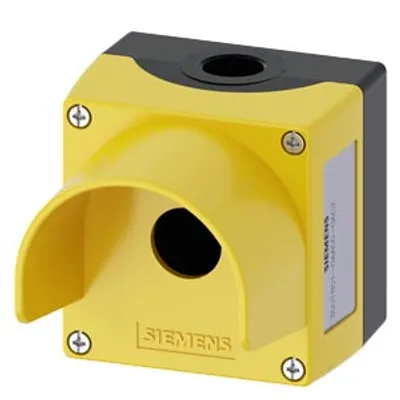

| 3SU1851-0AA00-0AC2 | Square | metal | 1 | 537.38 g | 89.4 mm |
| 3SU1851-0AA00-0AC1-Z Y19 | Square | metal | 1 | 547.38 g | 89.4 mm |
| 3SU1852-0AA00-0AB1-Z Y19 | rectangular | metal | 2 | 522.38 g | 118.4 mm |
| 3SU1851-0AA00-0AH1 | Square | metal | 1 | 540.38 g | 89.4 mm |
| 3SU1851-0AA00-0AG2-Z Y19 | Square | metal | 1 | 528.38 g | 89.4 mm |
| 3SU1851-0AA00-0AG2 | Square | metal | 1 | 528.38 g | 89.4 mm |
| 3SU1851-0AA00-0AF2-Z Y19 | Square | metal | 1 | 512.38 g | 89.4 mm |
| 3SU1851-0AA00-0AF2 | Square | metal | 1 | 512.38 g | 89.4 mm |
| 3SU1851-0AA00-0AB2 | Square | metal | 1 | 434.38 g | 89.4 mm |
| 3SU1851-0AA00-0AB1-Z Y19 | Square | metal | 1 | 436.38 g | 89.4 mm |
| 3SU1851-0AA00-0AB1 | Square | metal | 1 | 436.38 g | 89.4 mm |
| 3SU1801-0AA00-0AC2-Z Y19 | Square | plastic | 1 | 271.38 g | 85 mm |
| 3SU1851-0AA00-0AJ2-Z Y19 | Square | metal | 1 | 529.38 g | 89.4 mm |
| 3SU1851-0AA00-0AJ2 | Square | metal | 1 | 529.38 g | 89.4 mm |
| 3SU1851-0AA00-0AA2-Z Y19 | Square | metal | 1 | 434.38 g | 89.4 mm |
| 3SU1851-0AA00-0AA2 | Square | metal | 1 | 434.38 g | 89.4 mm |
| 3SU1801-0AA00-0AB1 | Square | plastic | 1 | 205.38 g | 85 mm |
| 3SU1801-0AA00-0AA2-Z Y19 | Square | plastic | 1 | 206.38 g | 85 mm |
| 3SU1801-0AA00-0AA2 | Square | plastic | 1 | 206.38 g | 85 mm |
| 3SU1853-0AA00-0AB1-Z Y19 | rectangular | metal | 3 | 689 g | 158.4 mm |

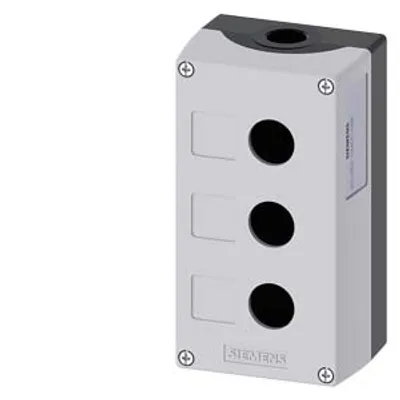

| 3SU1853-0AA00-0AB1 | rectangular | metal | 3 | 689 g | 158.4 mm |

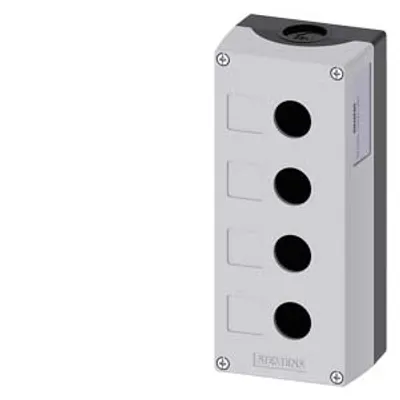

| 3SU1804-0AA00-0AB1 | rectangular | plastic | 4 | 434.38 g | 194 mm |
| 3SU1802-0AA00-0AB1 | rectangular | plastic | 2 | 259.38 g | 114 mm |
Common to all listed parts
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| tightening torque of fixing screws in the enclosure cover | 1.5 ... 1.7 N·m |
| fastening method of modules and accessories | Floor mounting |
| width | 85 mm |
