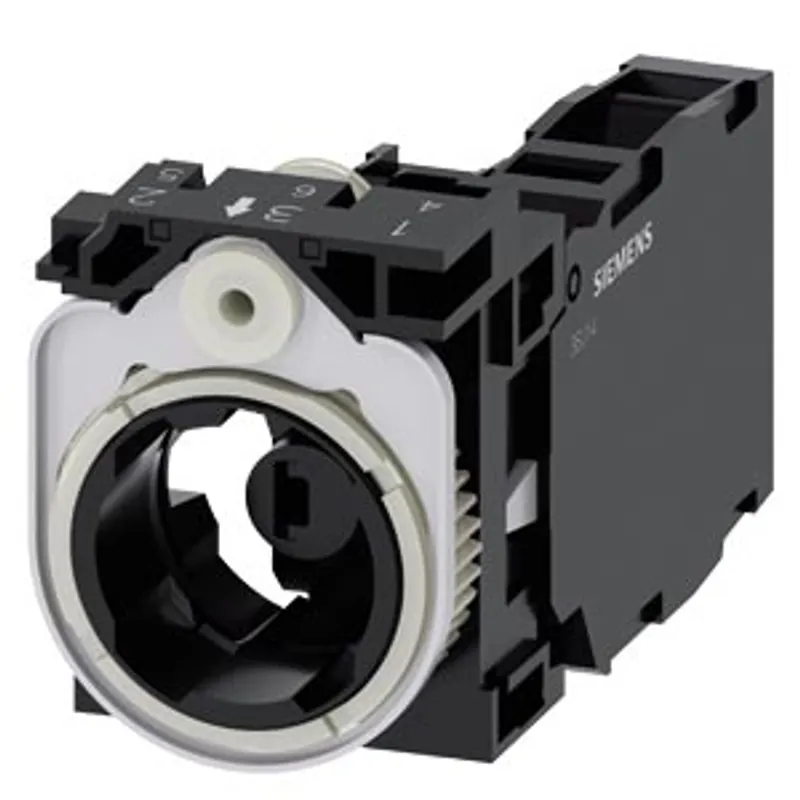

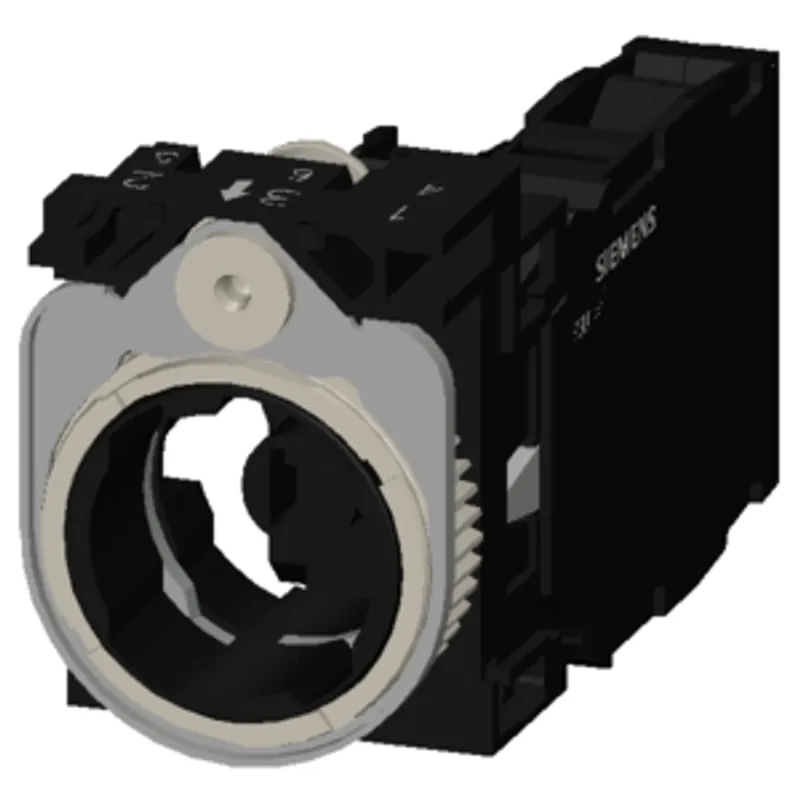

Siemens 3SU1501-1AG20-1FA0

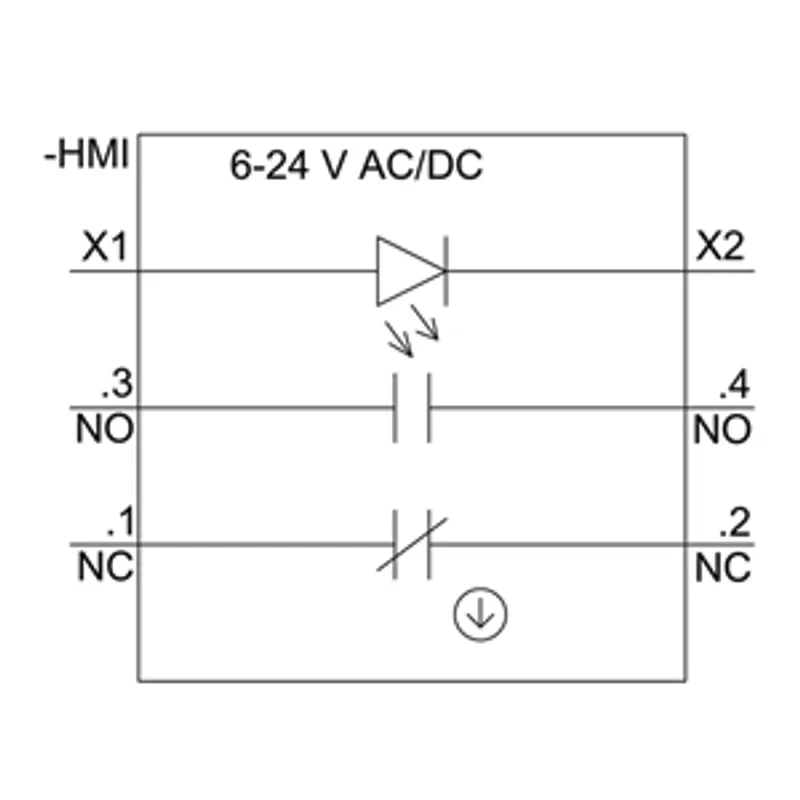

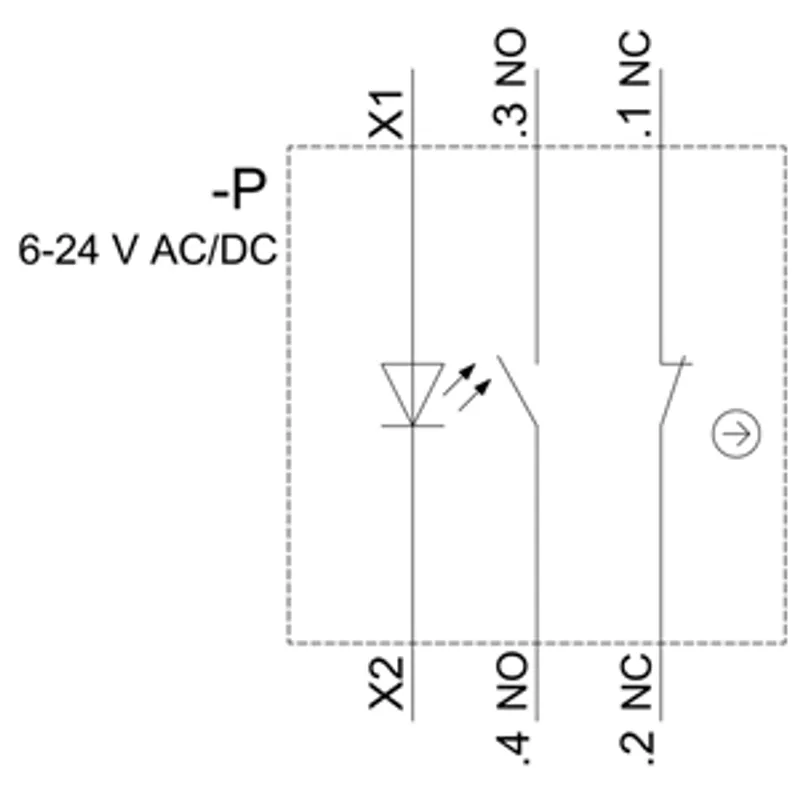

Holder, 3-way, plastic, 1 NO+1 NC, LED module, red, 6-24 V AC/DC, screw terminal
- MPN
- 3SU1501-1AG20-1FA0
- Category
- Holders
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1501-1AG20-1FA0?
holder, 3-way, plastic, 1 NO+1 NC, LED module, red, 6-24 V AC/DC, screw terminal
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | Holders |
| design of the product | holder for plastic |
| product type designation | 3SU1 |
| manufacturer's article number — of supplied contact module | 3SU1400-1AA10-1FA0 |
| manufacturer's article number — of supplied contact module at position 1 | 3SU1400-1AA10-1FA0 |
| manufacturer's article number — of supplied LED module | 3SU1401-1BG20-1AA0 |
| manufacturer's article number — of the supplied holder | 3SU1500-0AA10-0AA0 |
Actuator
| design of the actuating element | 3-way with module |
| number of modules attachable | 6 |
| number of contact modules | 1 |
Holder
| material of the holder | Plastic |
Display
| number of LED modules | 1 |
General technical data
| product function positive opening | Yes |
| product component — diode | Yes |
| product component — lamp transformer | No |
| product component — light source | Yes |
| product component — series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| protection class IP of the terminal | IP20, clamping screw tightened |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (operating cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | U |
| continuous current of the C characteristic MCB | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A |
| continuous current of the DIAZED fuse link gG | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | Melamine CAS-No. 108-78-1 |
| Net Weight | 47 g |
| operating voltage — at AC — at 50 Hz rated value | 6 ... 24 V |
| operating voltage — at AC — at 60 Hz rated value | 6 ... 24 V |
| operating voltage — at DC rated value | 6 ... 24 V |
Power Electronics
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
Control circuit/ Control
| inrush current of LED module maximum | 2 A |
Auxiliary circuit
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 at 230 V rated value | 6 A |
Connections/ Terminals
| type of electrical connection — of modules and accessories | Screw-type terminal |
| type of connectable conductor cross-sections — solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| type of connectable conductor cross-sections — solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| type of connectable conductor cross-sections — for AWG cables | 2x (18 ... 14) |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| tightening torque — with screw-type terminals | 0.8 ... 0.9 N·m |
Lamp
| type of light source | LED |
| color of the light source | red |
| light intensity | 450 ... 1 120 mcd |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) |

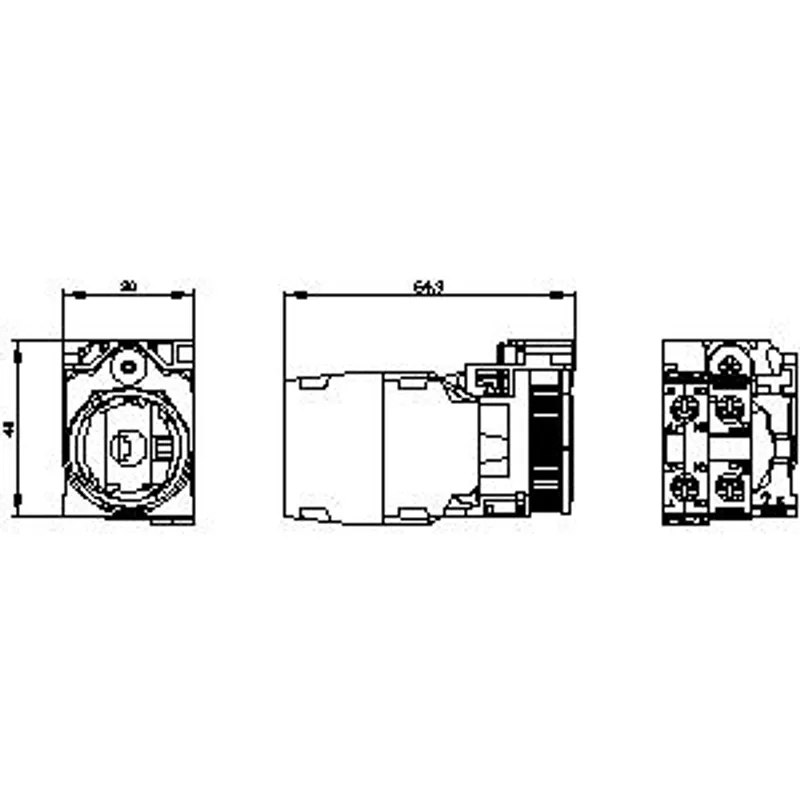

Installation/ mounting/ dimensions
| fastening method | front plate mounting |
| fastening method — of modules and accessories | Front plate mounting |
| height | 40 mm |
| width | 30 mm |
| shape of the installation opening | round |
| mounting diameter | 22.5 mm |
| installation width | 30 mm |
| installation depth | 71.8 mm |
| thickness of the front plate usable | 1 ... 6 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
| Siemens eco profile (SEP) | Siemens EcoTech |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
