Holders Parts
Compare Holders
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | number of contact modules | Net Weight | color of the light source | installation depth |
|---|---|---|---|---|---|

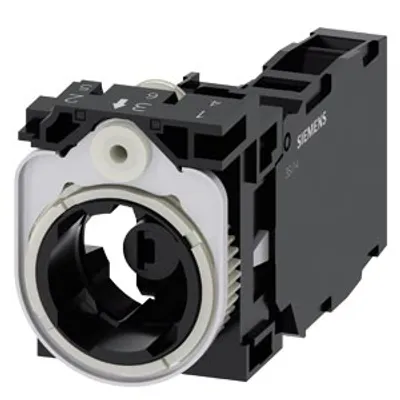

| 3SU1501-1AG20-1FA0 | 3-way with module | 1 | 47 g | red | 71.8 mm |
| 3SU1501-1AG20-1CA0 | 3-way with module | 1 | 27 g | red | 49.8 mm |

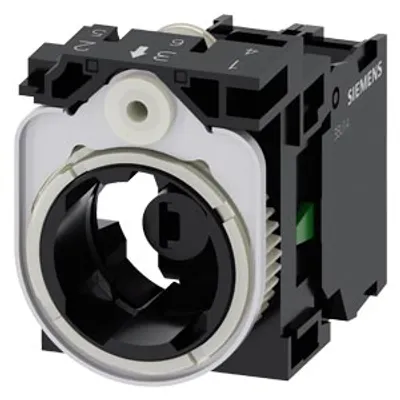

| 3SU1501-1AG20-1BA0 | 3-way with module | 1 | 40 g | red | 49.8 mm |
| 3SU1501-1AG40-1CA0 | 3-way with module | 1 | 28 g | green | 49.8 mm |
| 3SU1501-1AG40-1BA0 | 3-way with module | 1 | 39 g | green | 49.8 mm |
| 3SU1500-1AA10-1CA0 | 3-way with module | 1 | 32 g | — | 49.8 mm |
| 3SU1500-1AA10-1BA0 | 3-way with module | 1 | 24.5 g | — | 49.8 mm |
| 3SU1500-0BA10-0AA0-Z X90 | 4-way without module | 0 | 35 g | — | 32.1 mm |
| 3SU1501-1AG30-1BA0 | 3-way with module | 1 | 31.5 g | yellow | 49.8 mm |
| 3SU1501-1AG20-1NA0 | 3-way with module | 2 | 48 g | red | 49.8 mm |
| 3SU1501-1AG20-1LA0 | 3-way with module | 2 | 62 g | red | 71.8 mm |
| 3SU1500-0BA10-0AA0 | 4-way without module | 0 | 35 g | — | 32.1 mm |
| 3SU1500-0AA10-0AA0-Z X90 | 3-way without module | 0 | 15.6 g | — | 30.1 mm |
| 3SU1500-0AA10-0AA0-Z X01 | 3-way without module | 0 | 15.6 g | — | 30.1 mm |

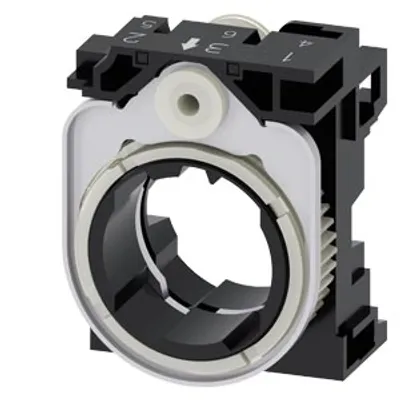

| 3SU1500-0AA10-0AA0 | 3-way without module | 0 | 15.6 g | — | 30.1 mm |
| 3SU1551-1AB60-3PA0 | 3-way with module | 2 | 65 g | white | 49.8 mm |
| 3SU1551-1AB60-3NA0 | 3-way with module | 2 | 44 g | white | 49.8 mm |
| 3SU1551-1AB60-3MA0 | 3-way with module | 2 | 44 g | white | 49.8 mm |
| 3SU1551-1AB50-3MA0 | 3-way with module | 2 | 66 g | blue | 49.8 mm |
| 3SU1551-1AB40-3MA0 | 3-way with module | 2 | 44 g | green | 49.8 mm |
Common to all listed parts
| material of the holder | Plastic |
| degree of pollution | 3 |
| reference code according to IEC 81346-2 | U |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| tightening torque of the screws in the bracket | 1 ... 1.2 N·m |
| height | 40 mm |
| shape of the installation opening | round |
| mounting diameter | 22.5 mm |
