Siemens 3SU1400-1EK10-6AA0
AS-Interface module, 4 inputs and 4 outputs, black, Spring-type terminal (push-in) for input/output
- MPN
- 3SU1400-1EK10-6AA0
- Category
- Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1400-1EK10-6AA0?

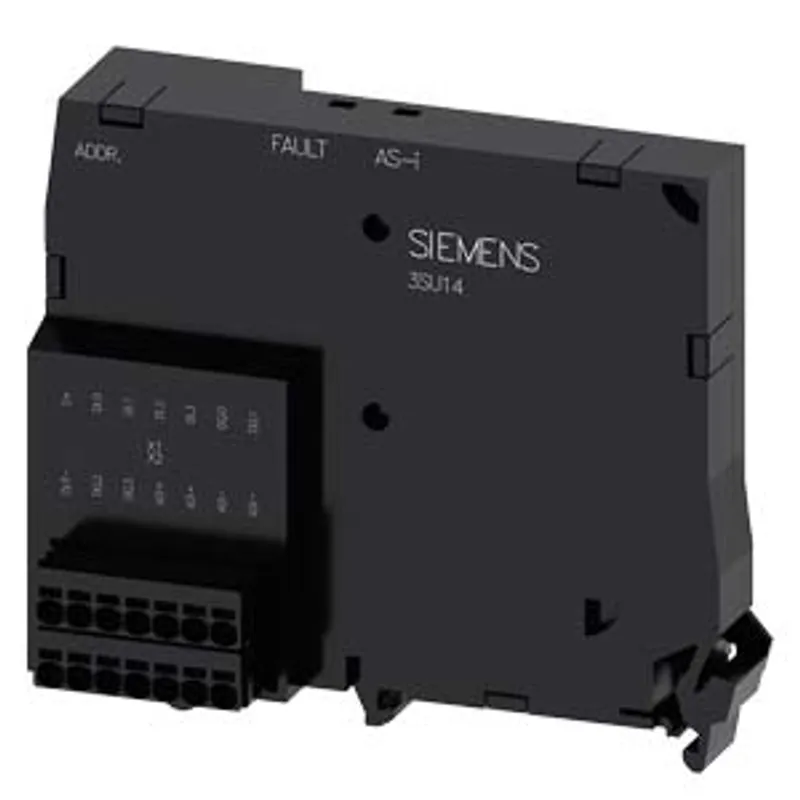

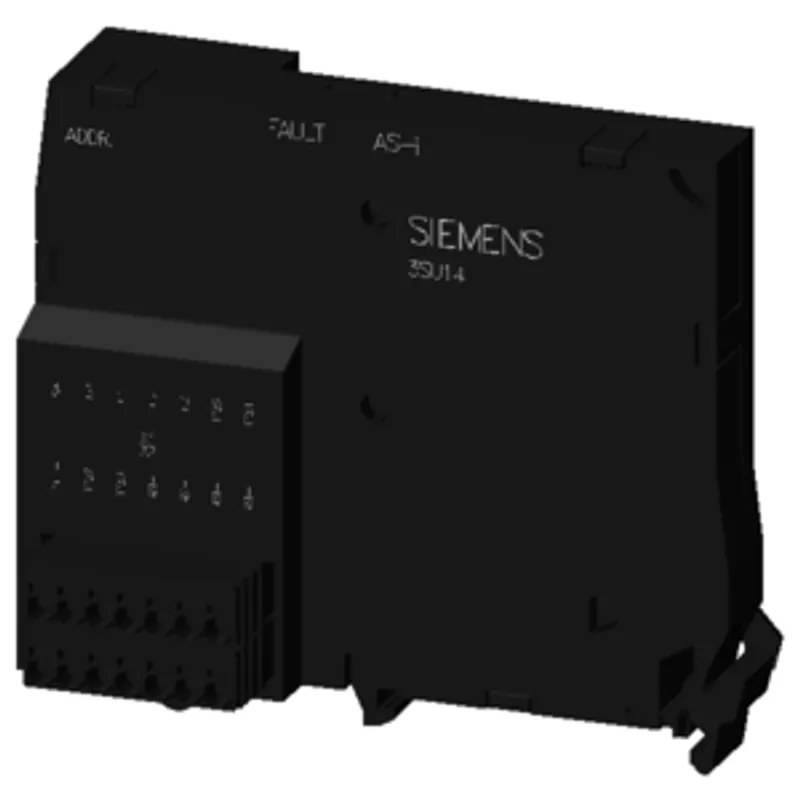

AS-Interface module, 4 inputs and 4 outputs, black, Spring-type terminal (push-in) for input/output, for front plate mounting
Specifications
General technical data
| product function | 4 DI / 4 DQ |
| degree of pollution | 3 |
| type of voltage – of the operating voltage | DC |
| type of voltage – of the input voltage | DC |
| consumed current maximum | 150 mA |
| protection class IP | IP20 |
| shock resistance for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance for railway applications according to EN 61373 | Category 1, Class B |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Diboron trioxide CAS-No. 1303-86-2 |
| Net Weight | 40.38 g |
| design of the device type | 4 DI / 4 DQ |
| AS-Interface device profile | S-7.0.E |
| ID1 code | 0...F |
| number of AS-i devices | 1 |
| operating voltage rated value | 18 ... 31.6 V |
| operating voltage 1 at DC rated value | 30 V |
Communication/ Protocol
| protocol is supported – AS-Interface protocol | Yes |
| protocol is supported – ASIsafe (Safety at work) protocol | No |

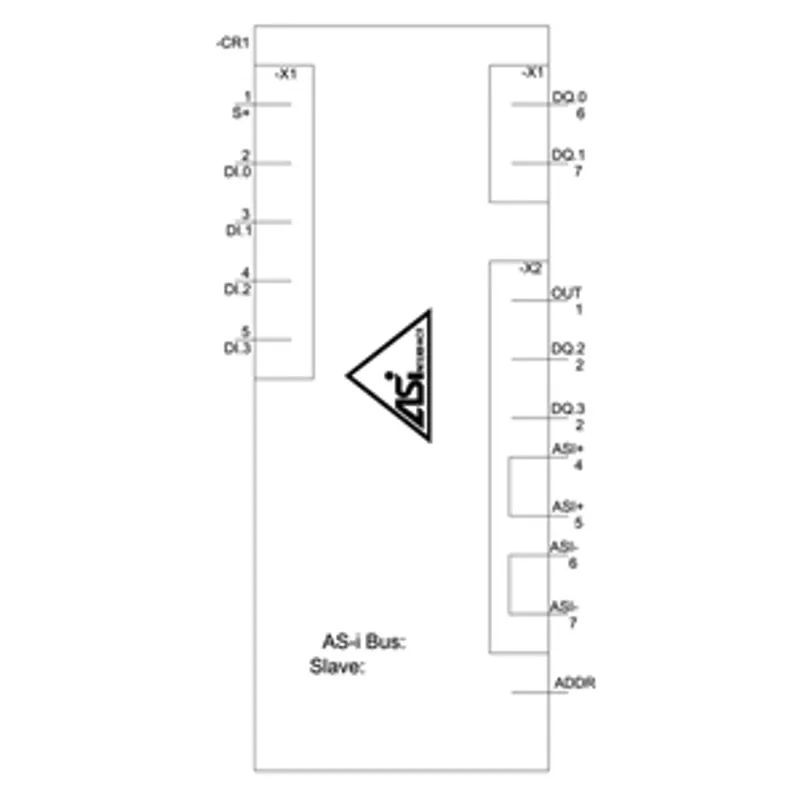

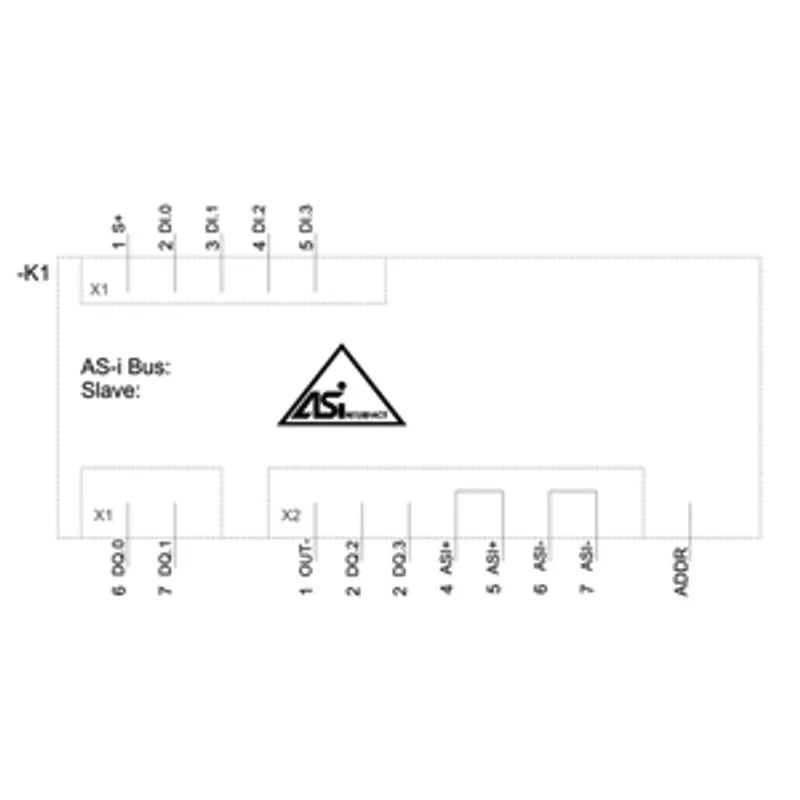

Inputs/ Outputs
| number of digital inputs | 4 |
| safety-related | 0 |
| number of digital outputs | 4 |
Connections/ Terminals
| type of electrical connection | spring-loaded terminal (push-in) |
| type of connectable conductor cross-sections – solid without core end processing | 1x (0.14 ... 0.5 mm²) |
| type of connectable conductor cross-sections – finely stranded without core end processing | 1x (0.2 ... 0.5 mm²) |
| type of connectable conductor cross-sections – for AWG cables | 1x (26 ... 20) |
Product Function
| suitability for use safety-related circuits | No |
Safety related data
| product function suitable for safety function | No |
| test wear-related service life necessary | No |
| category according to ISO 13849-1 | 4 |
| device type according to ISO 13849-1 | 1 |
| hardware fault tolerance according to IEC 61508 | 1 |
Ambient conditions
| ambient temperature – during operation | -25 ... +70 °C |
| ambient temperature – during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |

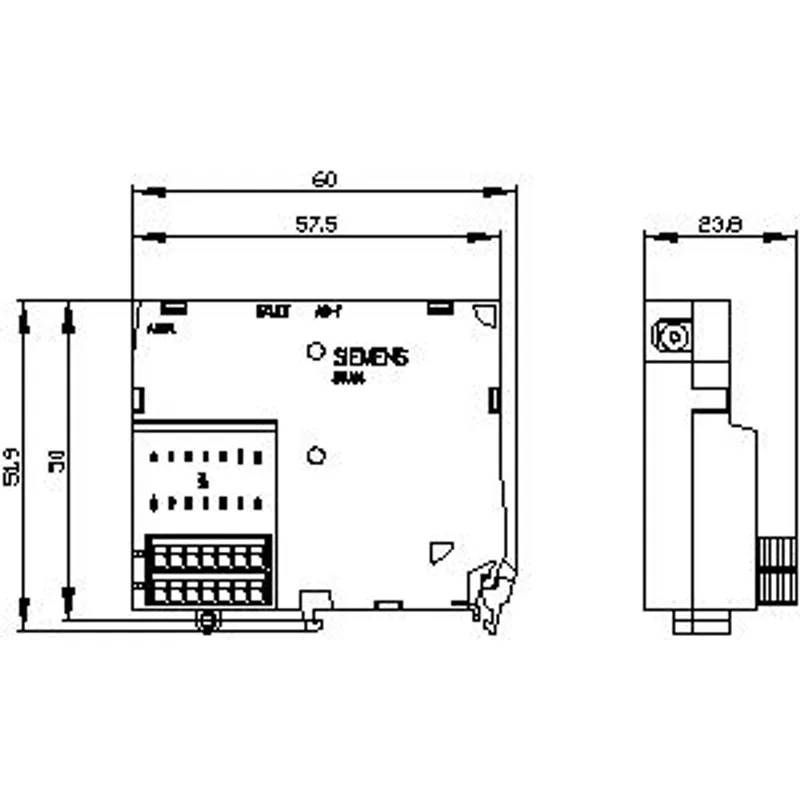

Installation/ mounting/ dimensions
| fastening method – of modules and accessories | Front plate mounting |
| fastening method – of the AS-i devices | Frontplattenbefestigung |
| height | 60 mm |
| width | 23.8 mm |
| depth | 53.5 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SU1400-1EK10-6AA0: frequently asked questions
When can 3SU1400-1EK10-6AA0 be shipped?
3SU1400-1EK10-6AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SU1400-1EK10-6AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SU1400-1EK10-6AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SU1400-1EK10-6AA0, subject to availability and destination.
