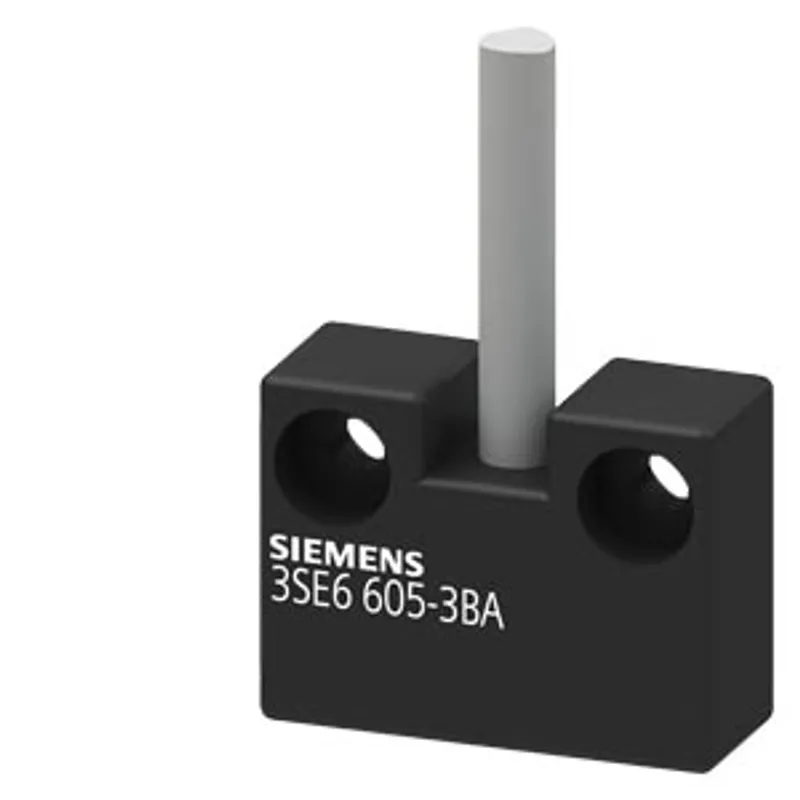

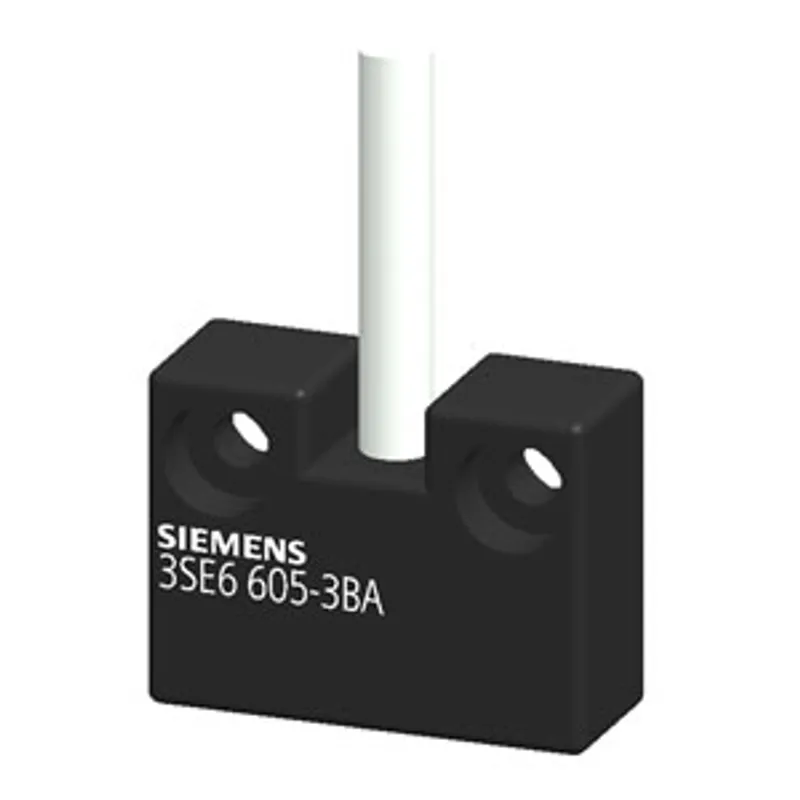

Siemens 3SE6605-3BA
Magnetically operated switch contact block contact block, rectangular small 25 x 33 mm
- MPN
- 3SE6605-3BA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE6605-3BA?
magnetically operated switch contact block contact block, rectangular small 25 x 33 mm, contact elements 1 NO+1 NC, with 3 m cable
Specifications
General
| product brand name | SIRIUS |
| product designation | Magnetically operated switch |
| design of the product | Rectangular sensor unit |
| product type designation | 3SE66 |
| suitability for use safety-related circuits | Yes |
General technical data
| product function — positive opening | No |
| product function — cross-circuit/short-circuit recognition | Yes |
| type of voltage of the operating voltage | DC |
| protection class IP | IP67 |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 0.151 kg |

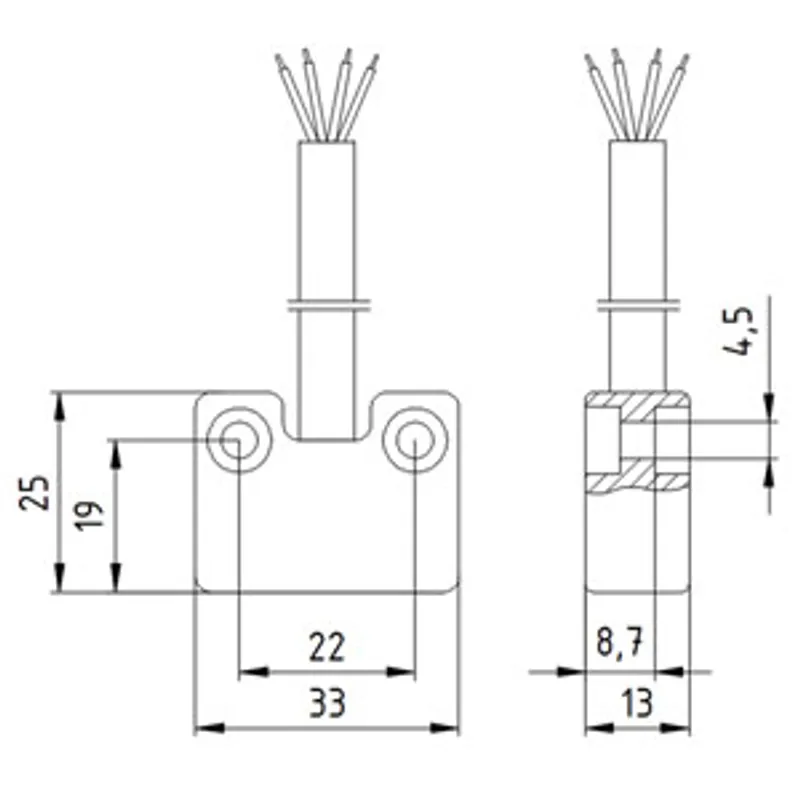

| height of the sensor | 13 mm |
| length of the sensor | 33 mm |
| width of the sensor | 25 mm |
| material of the active sensor area | plastic |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
Control circuit/ Control
| type of voltage | DC |
| operating voltage rated value | 24 V |
| operational current rated value | 100 mA |
| operating power rated value | 1 W |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
Enclosure
| design of the housing | block |
| material of the enclosure | plastic |
| material of cable sheath | PVC |
Actuator
| design of the actuating element | magnet |
Display
| evaluation unit required | yes |
Contact
| circuit principle | reed switches |
| switching frequency | 5 Hz |
| assured operating distance OFF | 14 mm |
| assured operating distance ON | 4 mm |

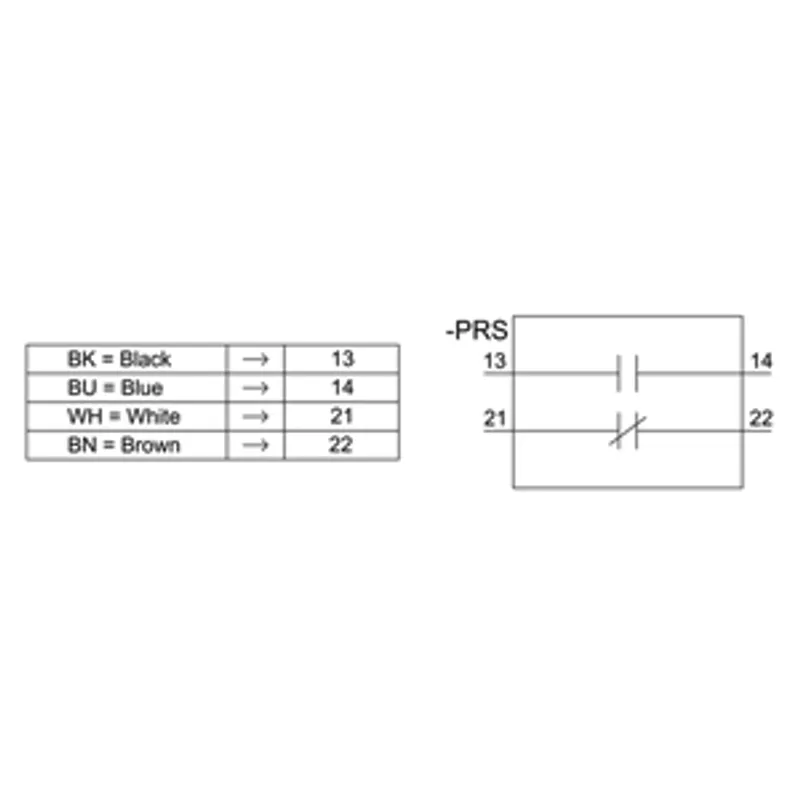

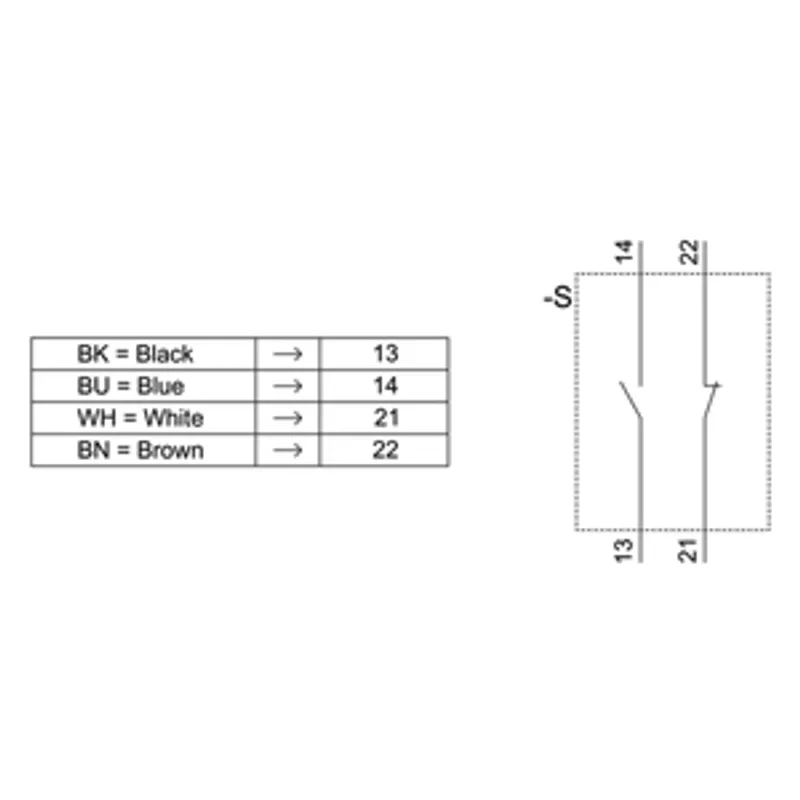

| design of the switching function | NC contact and NO contact |
Installation/ mounting/ dimensions
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | cable |
| wire length | 3 m |
Inputs/ Outputs
| type of switching output | Reed contacts |
Safety related data
| category according to EN 954-1 | 4 |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE6605-3BA: frequently asked questions
When can 3SE6605-3BA be shipped?
3SE6605-3BA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE6605-3BA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE6605-3BA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE6605-3BA, subject to availability and destination.
