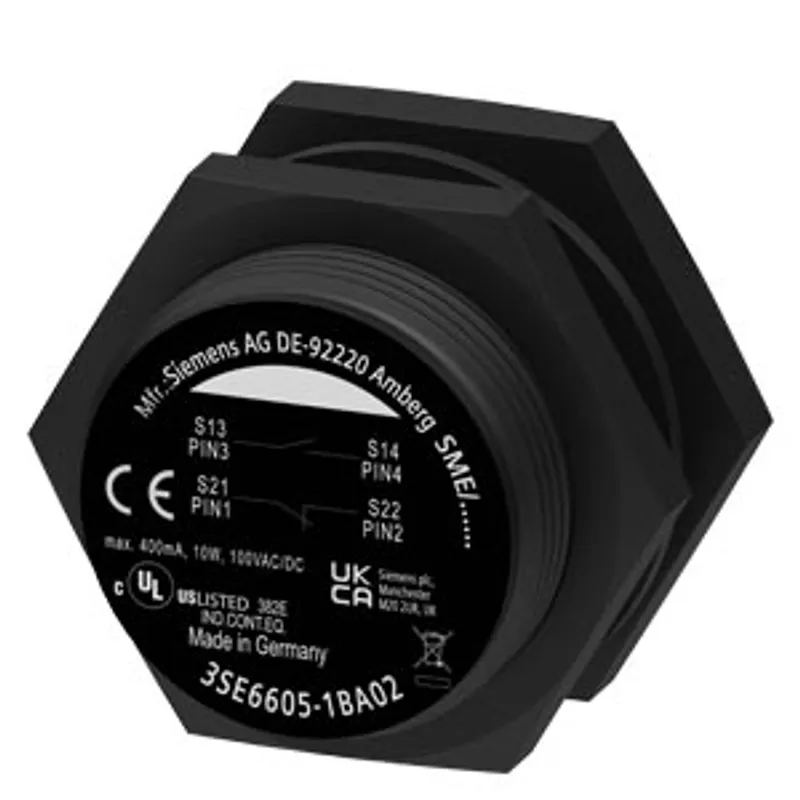

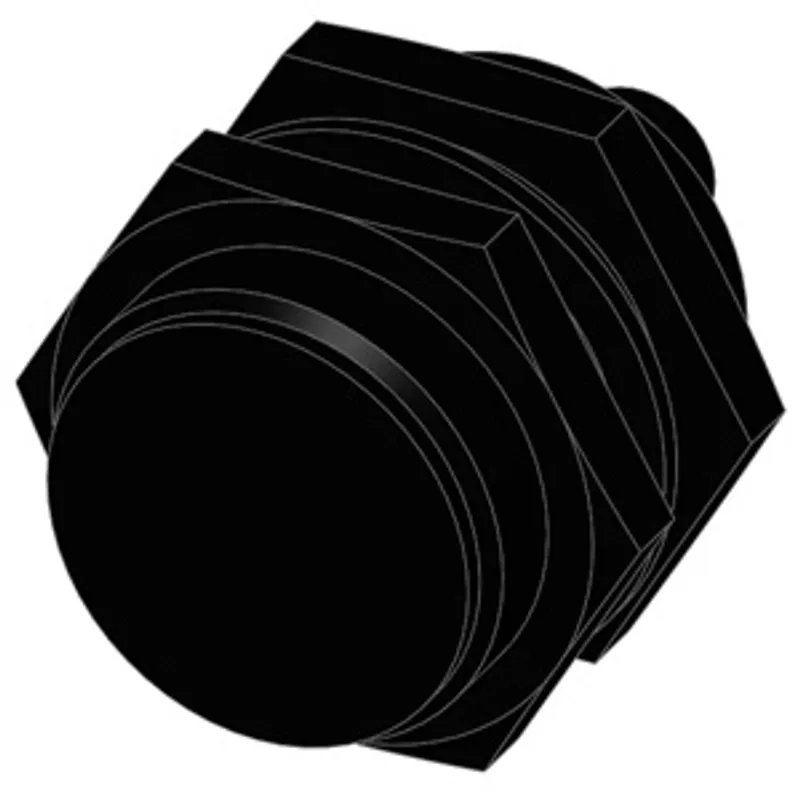

Siemens 3SE6605-1BA02
Magnetically operated switch contact block round M30 contact elements 1 NO+1 NC with M12 plug 4-pole Pin1=21
- MPN
- 3SE6605-1BA02
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE6605-1BA02?

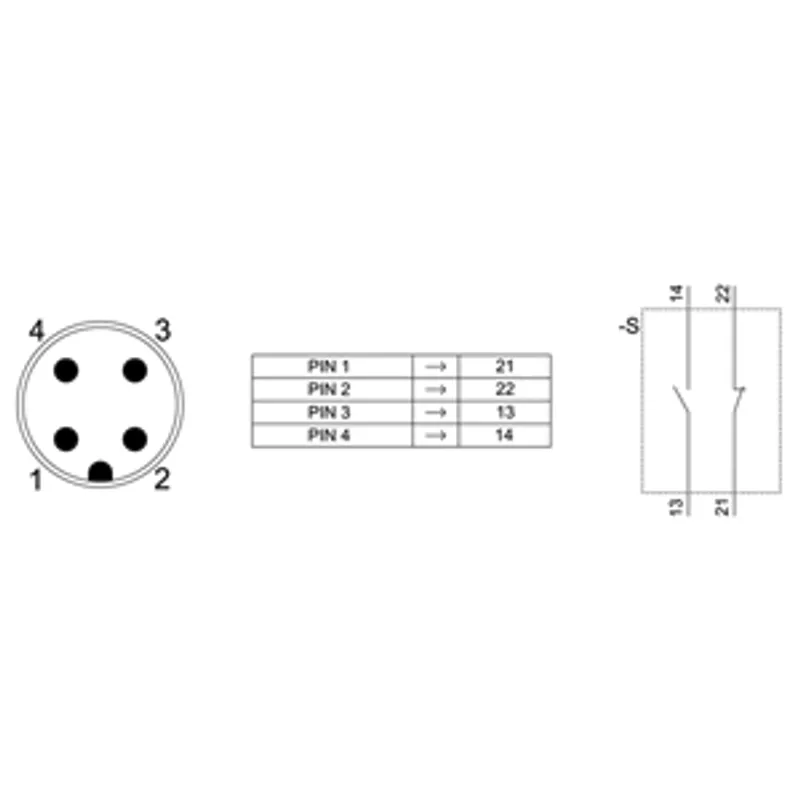

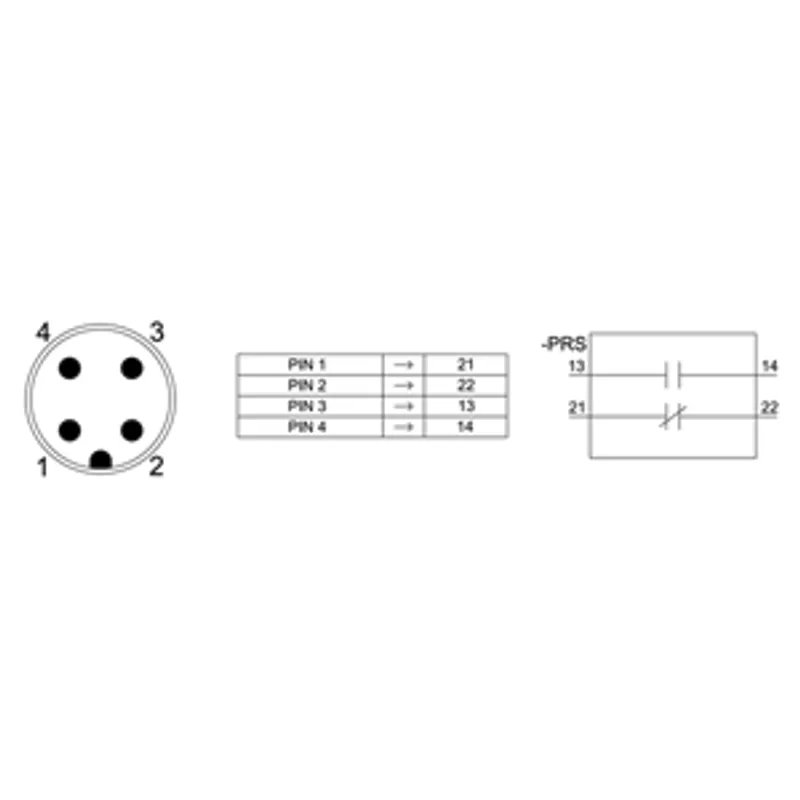

magnetically operated switch contact block round M30 contact elements 1 NO+1 NC with M12 plug 4-pole Pin1=21, Pin2=22 Pin3=13, Pin4=14, required solenoid 3SE6704-1BA coupling with connection cable 5 m 3SX5601-3SB54
Specifications
General
| product brand name | SIRIUS |
| product designation | Magnetically operated switch |
| design of the product | Round sensor unit |
| product type designation | 3SE66 |
| suitability for use safety-related circuits | Yes |
General technical data
| product function — positive opening | No |
| product function — cross-circuit/short-circuit recognition | Yes |
| product feature | M30 |
| type of voltage of the operating voltage | AC/DC |
| protection class IP | IP67 |
| shock resistance according to IEC 60068-2-27 | Sinusoidal half-wave 30 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 1 mm |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 0.029 kg |

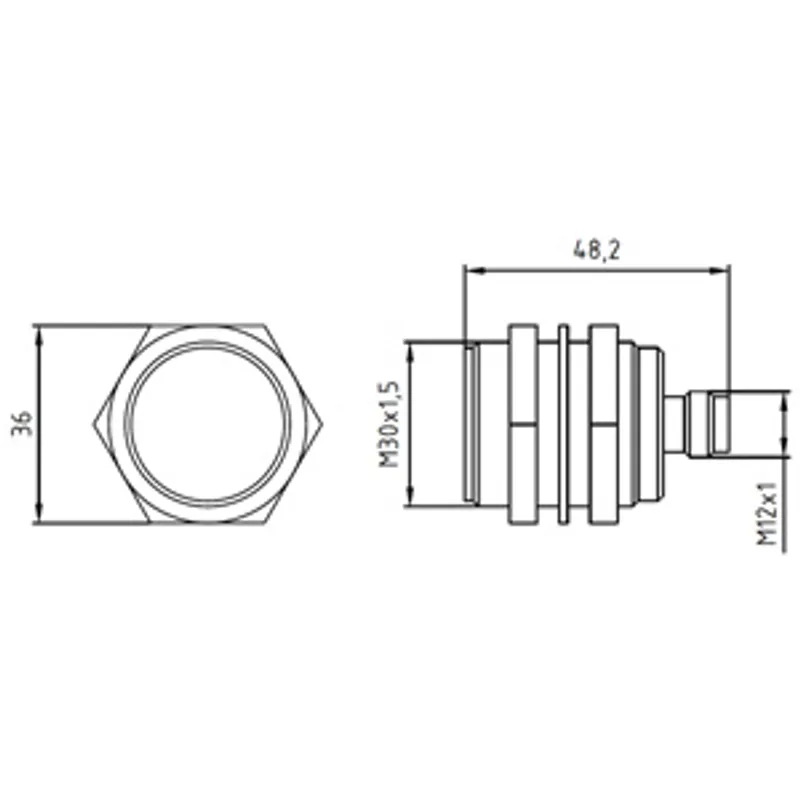

| length of the sensor | 48 mm |
| diameter of the sensor | 30 mm |
| material of the active sensor area | plastic |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
Control circuit/ Control
| type of voltage | AC/DC |
| operating voltage rated value | 100 V |
| operational current rated value | 400 mA |
| operating power rated value | 10 W |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
Enclosure
| design of the housing | cylinder, thread |
| material of the enclosure | plastic |
Actuator
| design of the actuating element | magnet |
Display
| evaluation unit required | yes |
Contact
| circuit principle | reed switches |
| switching frequency | 5 Hz |
| assured operating distance OFF | 15 mm |
| assured operating distance ON | 5 mm |
| design of the switching function | NC contact and NO contact |
Installation/ mounting/ dimensions
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | M8 connector, 4-pole |
Safety related data
| category according to EN 954-1 | 4 |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
