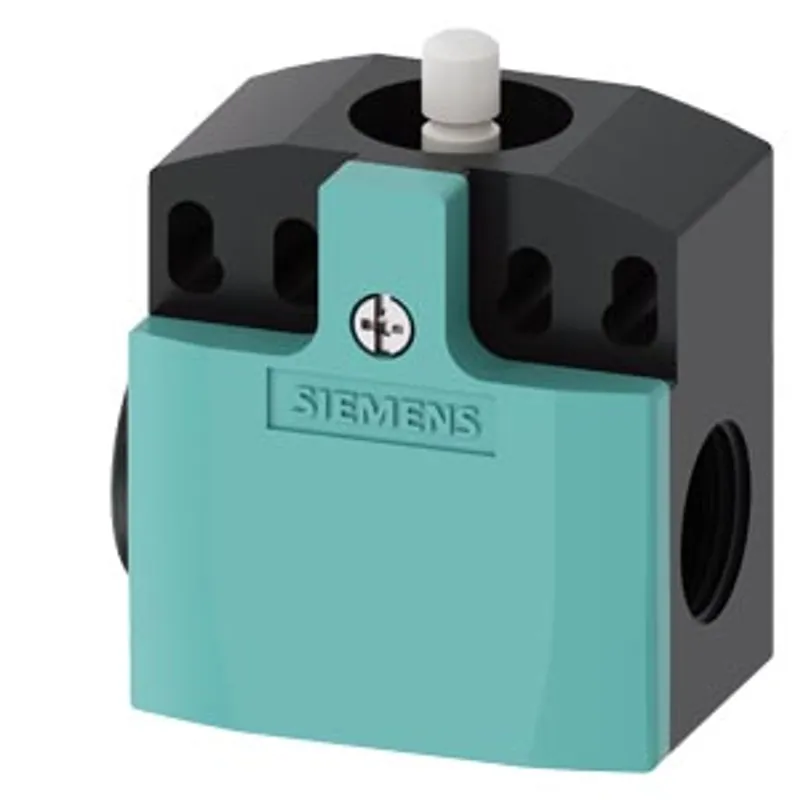

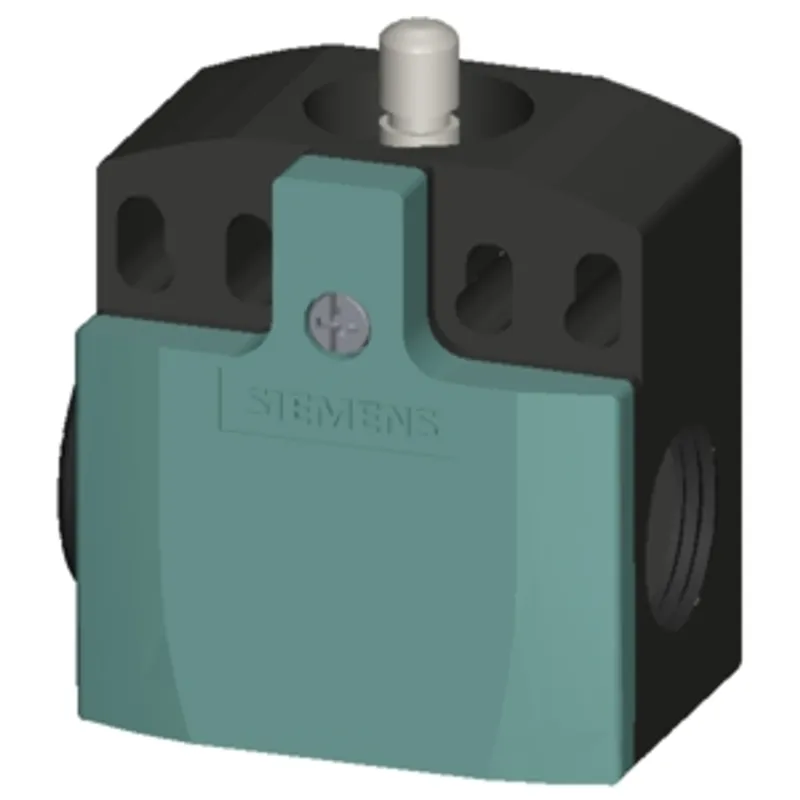

Siemens 3SE5242-0BC05
Position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action contacts
- MPN
- 3SE5242-0BC05
- Category
- Enclosure width 50 mm
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5242-0BC05?
position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC slow-action contacts, rounded plunger
Specifications
General
| product brand name | SIRIUS |
| product designation | Mechanical position switches |
| product type designation | 3SE5 |
| manufacturer's article number — of the supplied switching contacts | 3SE5000-0BA00 |
| manufacturer's article number — of the supplied empty enclosure with cover | 3SE5242-0AC05 |
General technical data
| product function positive opening | Yes |
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP66/IP67 |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| electrical endurance (operating cycles) at AC-15 at 230 V typical | 100 000 |
| thermal current | 10 A |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | B |
| continuous current of the C characteristic MCB | 1 A; for a short-circuit current smaller than 400 A |
| continuous current of the quick DIAZED fuse link | 10 A; for a short-circuit current smaller than 400 A |
| continuous current of the DIAZED fuse link gG | 6 A |
| active principle | mechanical |
| repeat accuracy | 0.05 mm |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Imidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 |
| Net Weight | 0.065 kg |
| minimum actuating force in directions of actuation | 20 N |

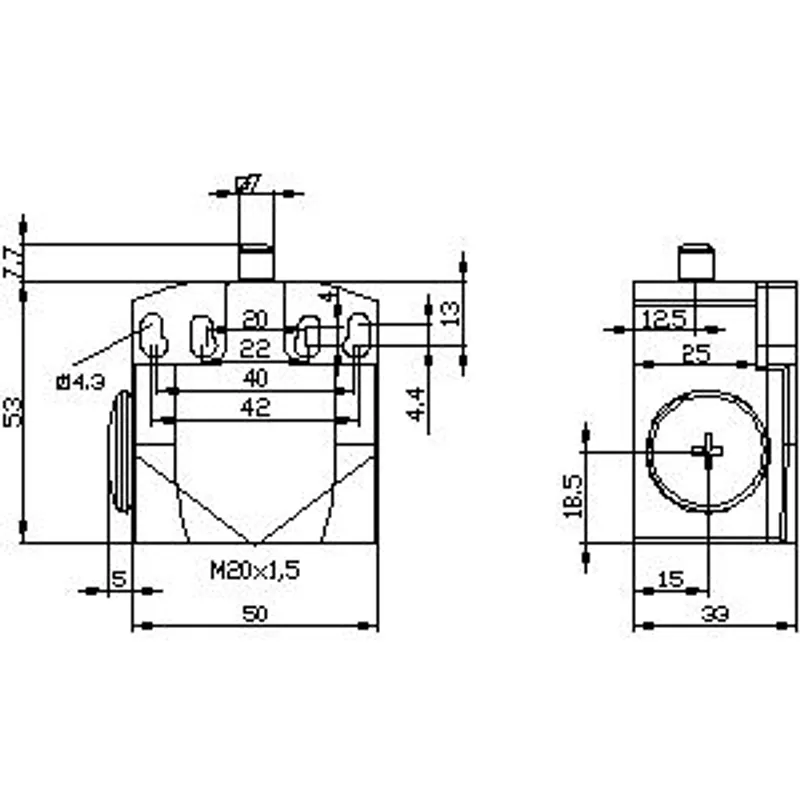

| length of the sensor | 60.7 mm |
| width of the sensor | 50 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Main circuit
| design of the switching contact | mechanical |
| operating frequency rated value | 50 ... 60 Hz |

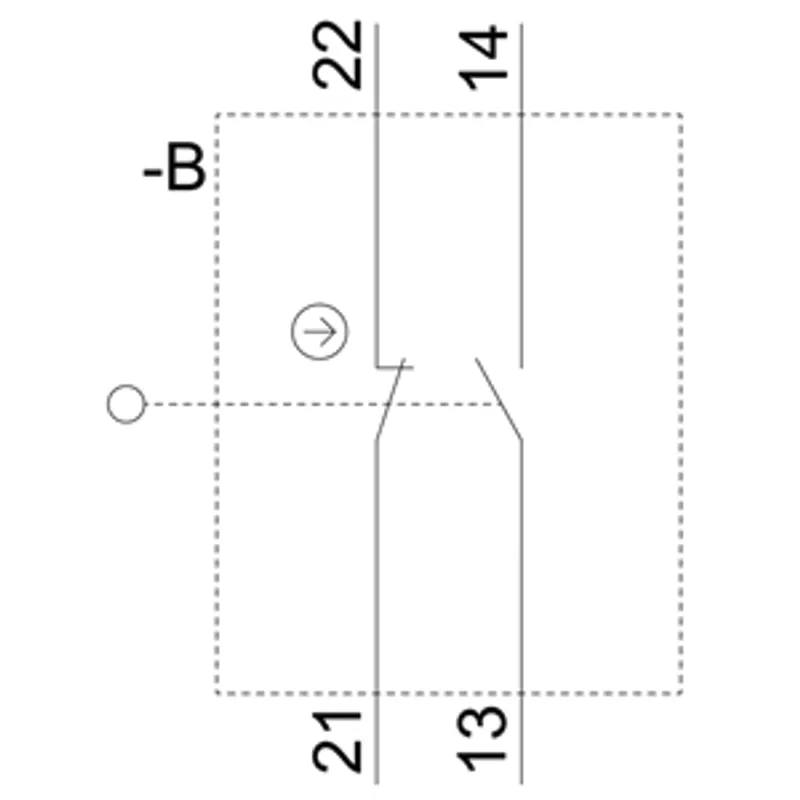

| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 — at 24 V rated value | 6 A |
| operational current at AC-15 — at 120 V rated value | 6 A |
| operational current at AC-15 — at 240 V rated value | 6 A |
| operational current at AC-15 — at 400 V rated value | 4 A |
| operational current at DC-13 — at 24 V rated value | 3 A |
| operational current at DC-13 — at 125 V rated value | 0.55 A |
| operational current at DC-13 — at 250 V rated value | 0.27 A |
| operational current at DC-13 — at 400 V rated value | 0.12 A |
Enclosure
| design of the housing | block, wide |
| material of the enclosure | plastic |
| coating of the enclosure | Other types |
| design of the housing according to standard | No |
Drive Head
| design of the actuating element | Rounded plunger, plastic plunger |
| standard-compliant actuator head | EN 50047, design B |
| shape of the switch head | rounded |
| design of the switching function | positive opening |

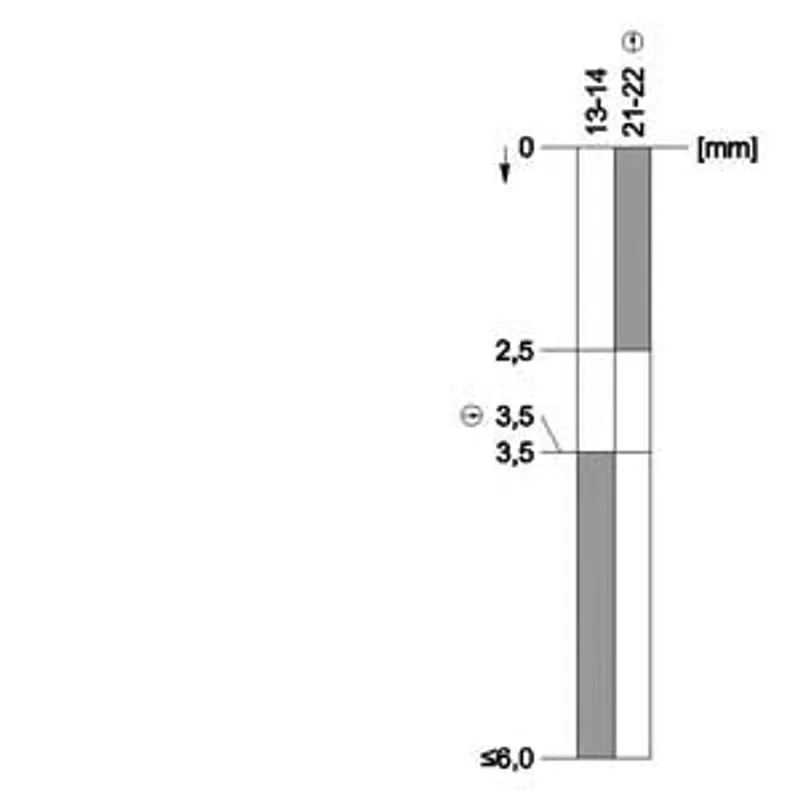

| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 1 |
| cable entry type | 2x (M20 x 1.5) |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 16), 2x (20 ... 18) |
| type of connectable conductor cross-sections — for AWG cables stranded | 1x (20 ... 16), 2x (20 ... 18) |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
Safety related data
| product function suitable for safety function | Yes |
| service life maximum | 20 a |
| test wear-related service life necessary | Yes |
| proportion of dangerous failures — with low demand rate according to SN 31920 | 20 % |
| proportion of dangerous failures — with high demand rate according to SN 31920 | 20 % |
| B10 value with high demand rate according to SN 31920 | 10 000 000 |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| device type according to ISO 13849-1 | 3 |
| safety device type according to IEC 61508-2 | A |
