Enclosure width 50 mm Parts

Siemens

Position switch Plastic enclosure according to EN 50047

Siemens

Position switch Plastic enclosure according to EN 50047

Siemens

Position switch Plastic enclosure according to EN 50047

Siemens

Position switch with increased corrosion protection Plastic…

Siemens

Position switch plastic enclosure according to EN 50047

Siemens

Position switch with increased corrosion protection Plastic…

Siemens

Position switch plastic enclosure 50 mm

Compare Enclosure width 50 mm

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	manufacturer's article number — of the supplied switching contacts	manufacturer's article number — of the supplied empty enclosure with cover	Net Weight	length of the sensor	standard-compliant actuator head

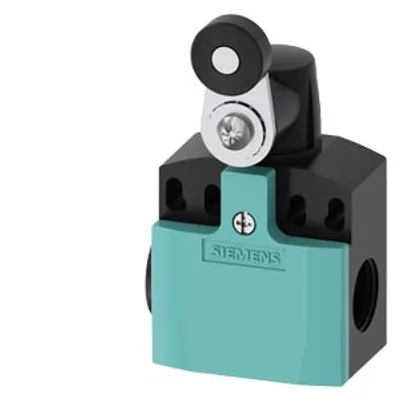

3SE5242-0LK21	3SE5000-0LA00	3SE5242-0AC05	0.098 kg	96.3 mm	EN 50047, design A

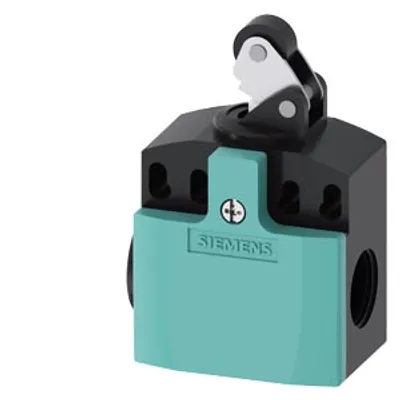

3SE5242-0LE10	3SE5000-0LA00	3SE5242-0AC05	0.085 kg	79.5 mm	EN 50047, design E

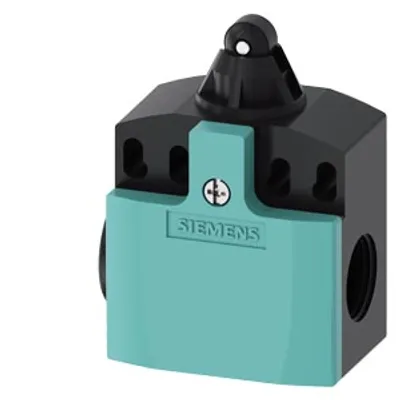

3SE5242-0LD03	3SE5000-0LA00	3SE5242-0AC05	0.077 kg	66 mm	EN 50047, design C
3SE5242-0LC05-1CA0	3SE5000-0LA00	3SE5242-0AC05-1CA0	0.07 kg	60.7 mm	EN 50047, design B

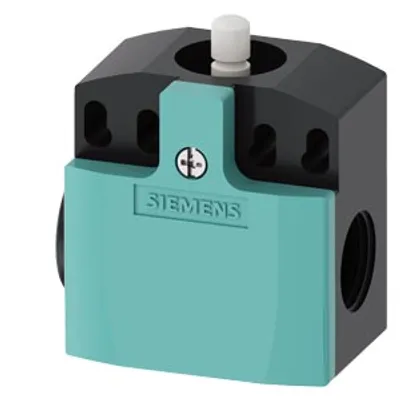

3SE5242-0LC05	3SE5000-0LA00	3SE5242-0AC05	0.067 kg	60.7 mm	EN 50047, design B
3SE5242-0KC05-1CA0	3SE5000-0KA00	3SE5242-0AC05-1CA0	0.066 kg	60.7 mm	EN 50047, design B
3SE5242-0BC05	3SE5000-0BA00	3SE5242-0AC05	0.065 kg	60.7 mm	EN 50047, design B

product designation	Mechanical position switches
product type designation	3SE5
product function positive opening	Yes
insulation voltage rated value	400 V
degree of pollution	class 3
surge voltage resistance rated value	6 kV
protection class IP	IP66/IP67
shock resistance — according to IEC 60068-2-27	30 g / 11 ms
