Siemens 3SE5000-0AD06
Actuator head plastic for position switch 3SE5132 Roller plunger, Form C
- MPN
- 3SE5000-0AD06
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5000-0AD06?

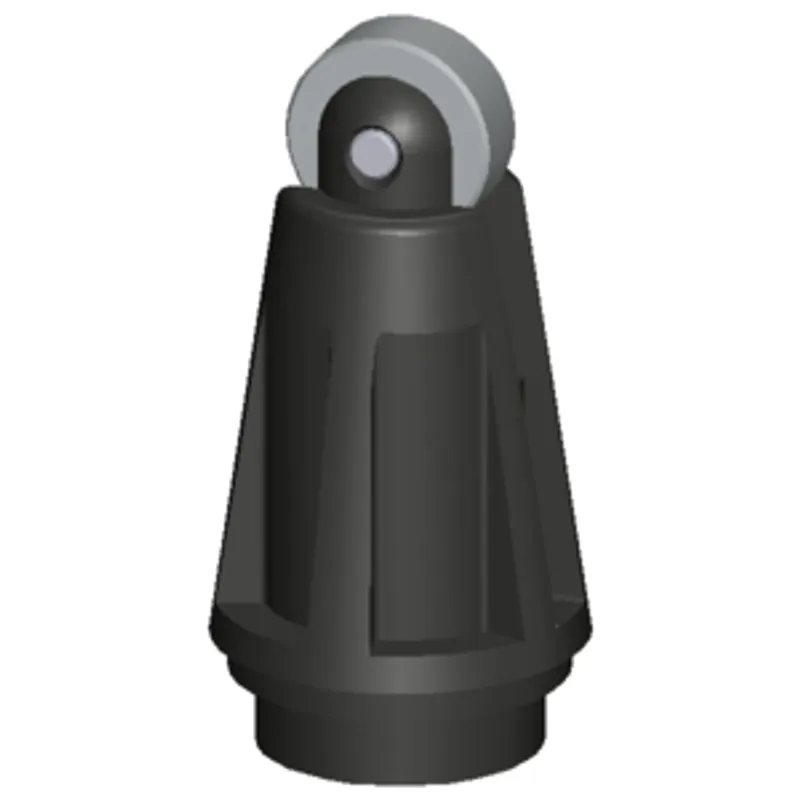

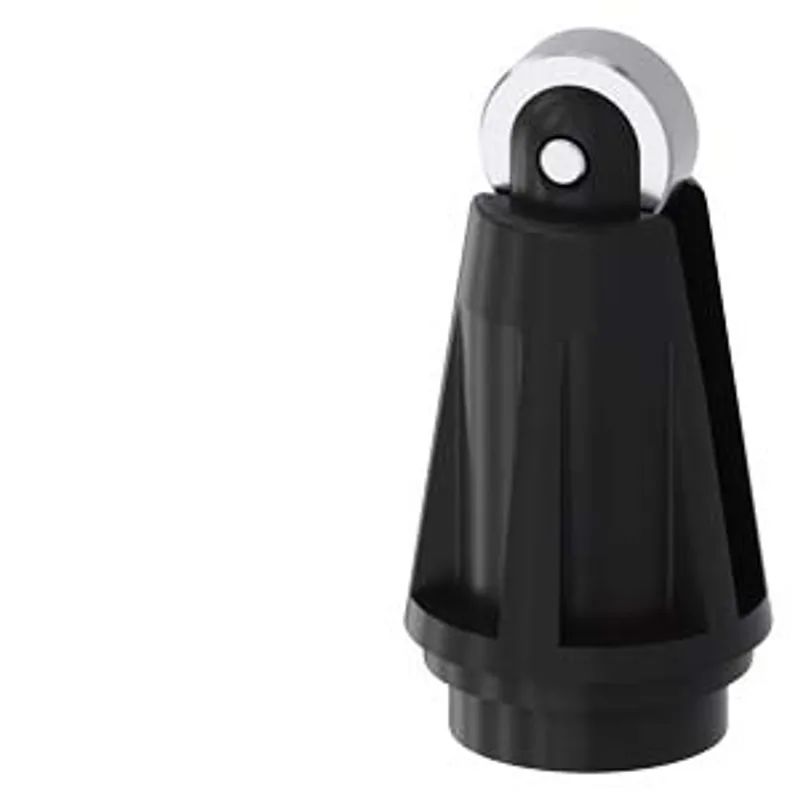

Actuator head plastic for position switch 3SE5132 Roller plunger, Form C, with Stainless steel roller 13 mm according to EN 50041
Specifications
General
| product brand name | SIRIUS |
| product designation | actuator head for position switch |
| product type designation | 3SE5 |
| manufacturer's article number — of the supplied actuator head for position switches | 3SE5000-0AD06 |
General technical data
| product function positive opening | Yes |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.023 kg |
| minimum actuating force in directions of actuation | 20 N |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Enclosure
| coating of the enclosure | Other types |
Drive Head
| design of the actuating element | Roller plunger, high-grade steel roller |
| standard-compliant actuator head | EN 50041, design C |
| shape of the switch head | roller |

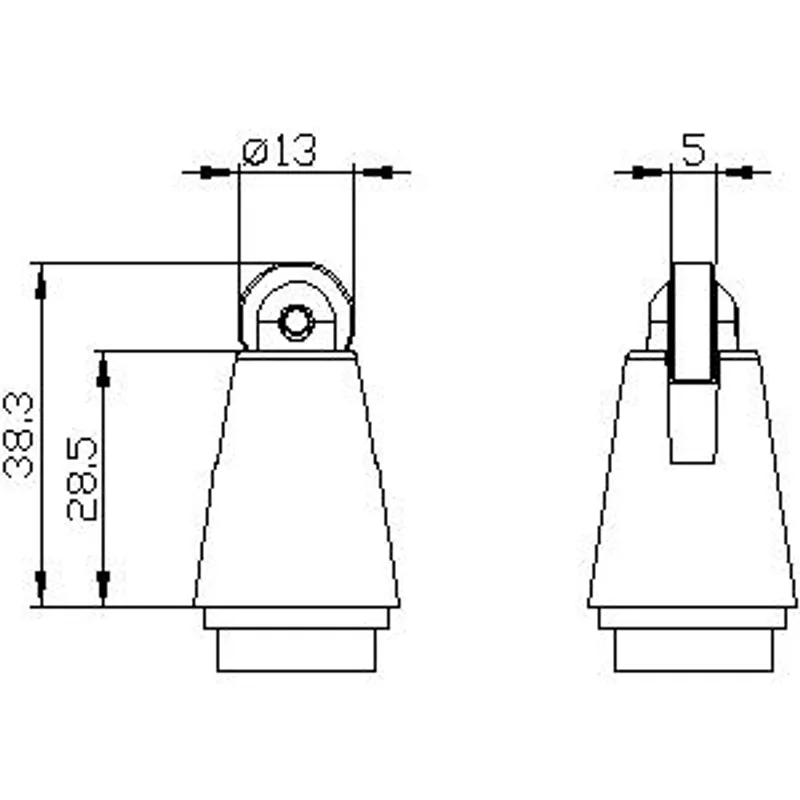

| outer diameter of the switch head | 13 mm |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | lockable plug-in fixing |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3SE5000-0AD06: frequently asked questions
When can 3SE5000-0AD06 be shipped?
3SE5000-0AD06 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3SE5000-0AD06 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3SE5000-0AD06 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE5000-0AD06, subject to availability and destination.
