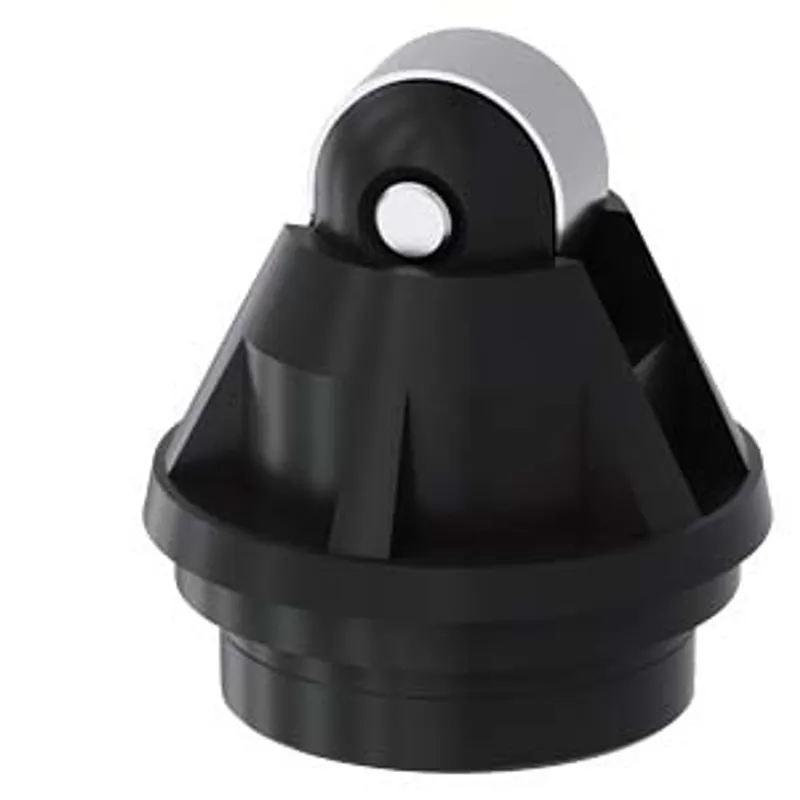

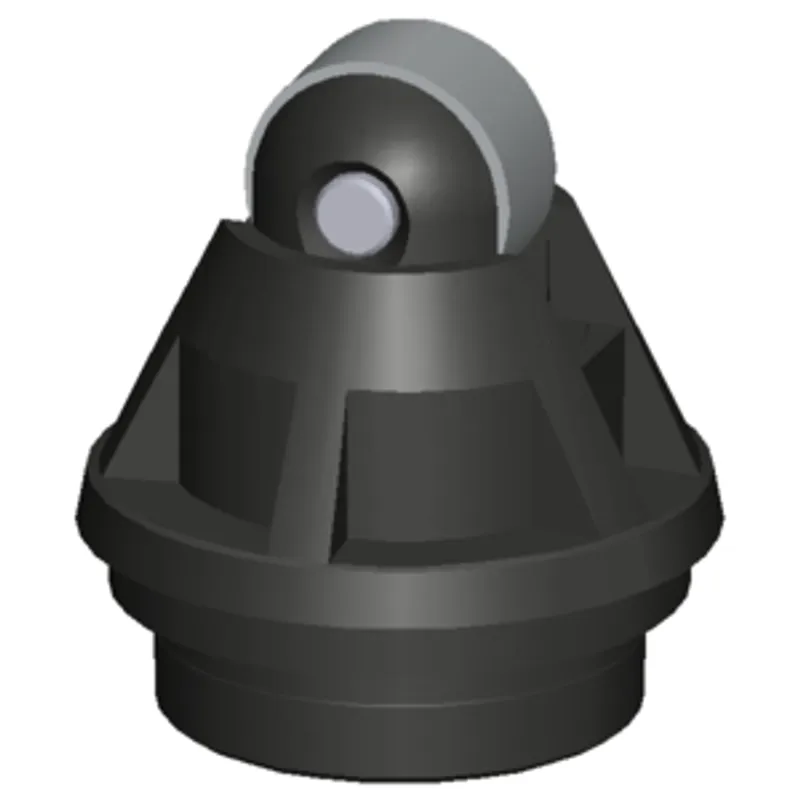

Siemens 3SE5000-0AD04
Actuator head for position switch 3SE51/52 Roller plunger, Form C
- MPN
- 3SE5000-0AD04
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE5000-0AD04?
Actuator head for position switch 3SE51/52 Roller plunger, Form C, with Stainless steel roller 10 mm according to EN 50047
Specifications
General
| product brand name | SIRIUS |
| product designation | actuator head for position switch |
| product type designation | 3SE5 |
| manufacturer's article number — of the supplied actuator head for position switches | 3SE5000-0AD04 |
General technical data
| product function positive opening | Yes |
| shock resistance — according to IEC 60068-2-27 | 30 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 0.35 mm/5 g |
| mechanical service life (operating cycles) typical | 15 000 000 |
| material of the enclosure of the switch head | plastic |
| reference code according to IEC 81346-2 | T |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.019 kg |
| minimum actuating force in directions of actuation | 20 N |
Ambient conditions
| ambient temperature — during operation | -25 ... +85 °C |
| ambient temperature — during storage | -40 ... +90 °C |
| explosion protection category for dust | none |
Enclosure
| coating of the enclosure | Other types |
Drive Head
| design of the actuating element | Roller plunger, high-grade steel roller |
| standard-compliant actuator head | EN 50047, design C |
| shape of the switch head | roller |
| outer diameter of the switch head | 10 mm |

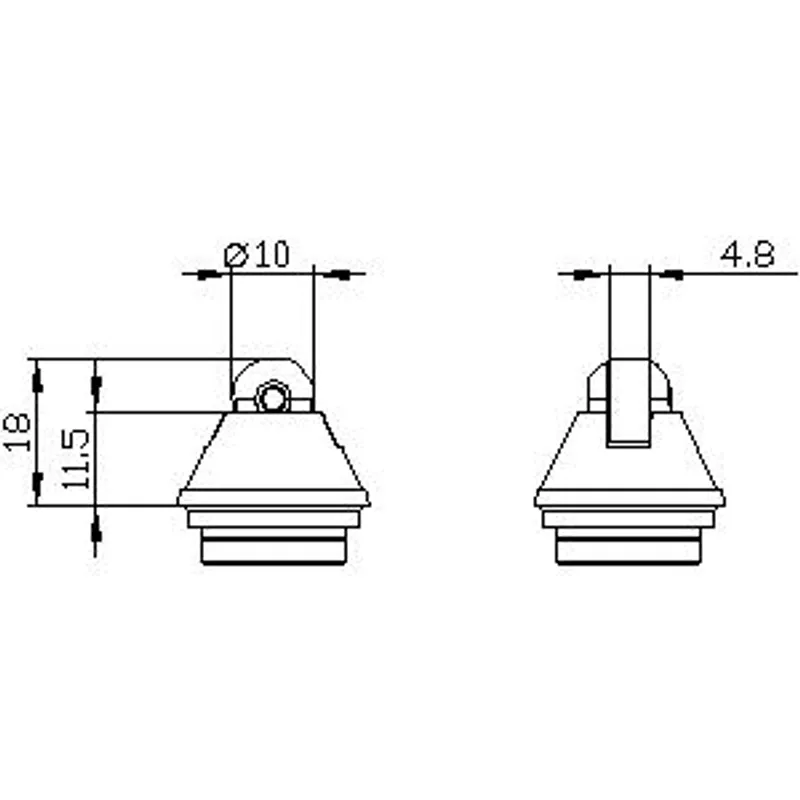

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | lockable plug-in fixing |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
