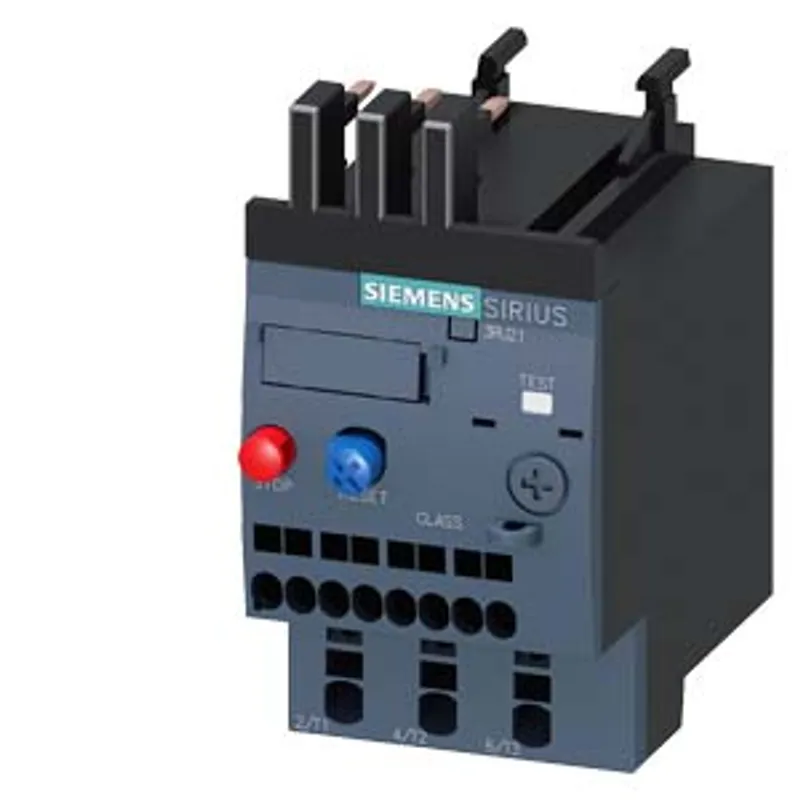

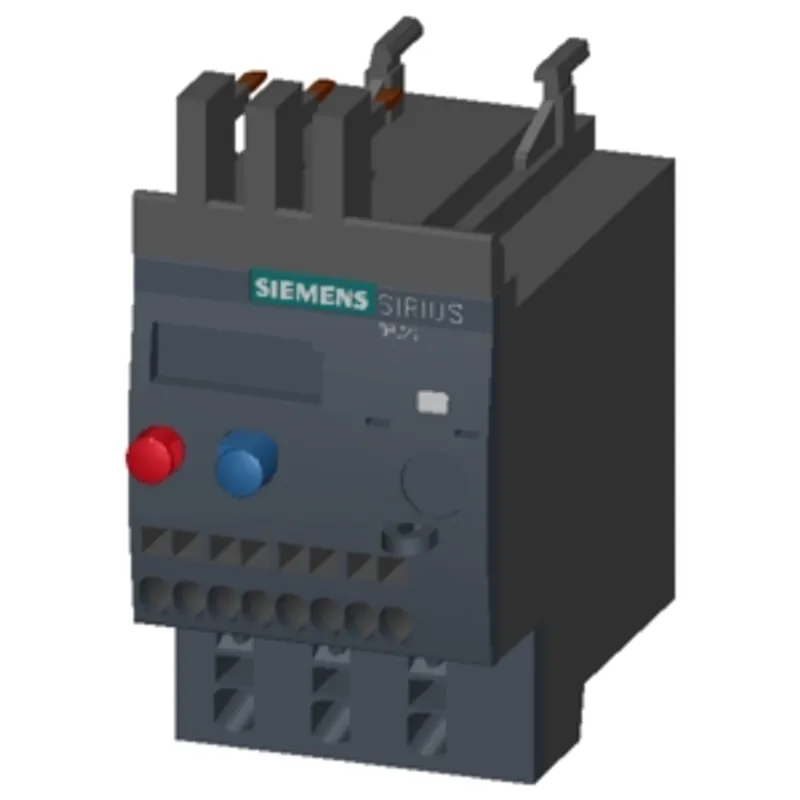

Siemens 3RU2116-0HC0

Overload relay 0.55...0.80 A thermal for motor protection frame size S00

MPN: 3RU2116-0HC0
Category: SIRIUS 3RU2 thermal overload relays

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RU2116-0HC0?

overload relay 0.55...0.80 A thermal for motor protection frame size S00, Class 10 for mounting on contactors main circuit: spring-loaded terminal auxiliary circuit: spring-loaded terminal manual-automatic RESET

Specifications

General technical data

size of overload relay	S00
size of contactor can be combined company-specific	S00
power loss [W] for rated value of the current at AC in hot operating state	4.8 W
per pole	1.6 W
type of calculation of power loss current-dependent	quadratic
insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
maximum permissible voltage for protective separation – in networks with ungrounded star point between auxiliary and auxiliary circuit	440 V
maximum permissible voltage for protective separation – in networks with grounded star point between auxiliary and auxiliary circuit	440 V
maximum permissible voltage for protective separation – in networks with ungrounded star point between main and auxiliary circuit	440 V
maximum permissible voltage for protective separation – in networks with grounded star point between main and auxiliary circuit	440 V
shock resistance according to IEC 60068-2-27	8g / 11 ms
reference code according to IEC 81346-2	F
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	0.151 kg

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature – during operation	-40 ... +70 °C
ambient temperature – during storage	-55 ... +80 °C
ambient temperature – during transport	-55 ... +80 °C
temperature compensation	-40 ... +60 °C
relative humidity during operation	10 ... 95 %

Main circuit

number of poles for main current circuit	3
adjustable current response value current of the current-dependent overload release	0.55 ... 0.8 A
operating voltage – rated value	690 V
operating voltage – at AC-3e rated value maximum	690 V
operating frequency rated value	50 ... 60 Hz
operational current rated value	0.8 A
operational current at AC-3e at 400 V rated value	0.8 A
at AC-3 – — at 400 V rated value	0.18 kW
at AC-3 – — at 500 V rated value	0.25 kW
at AC-3 – — at 690 V rated value	0.37 kW
at AC-3e – — at 400 V rated value	0.18 kW
at AC-3e – — at 500 V rated value	0.25 kW
at AC-3e – — at 690 V rated value	0.37 kW

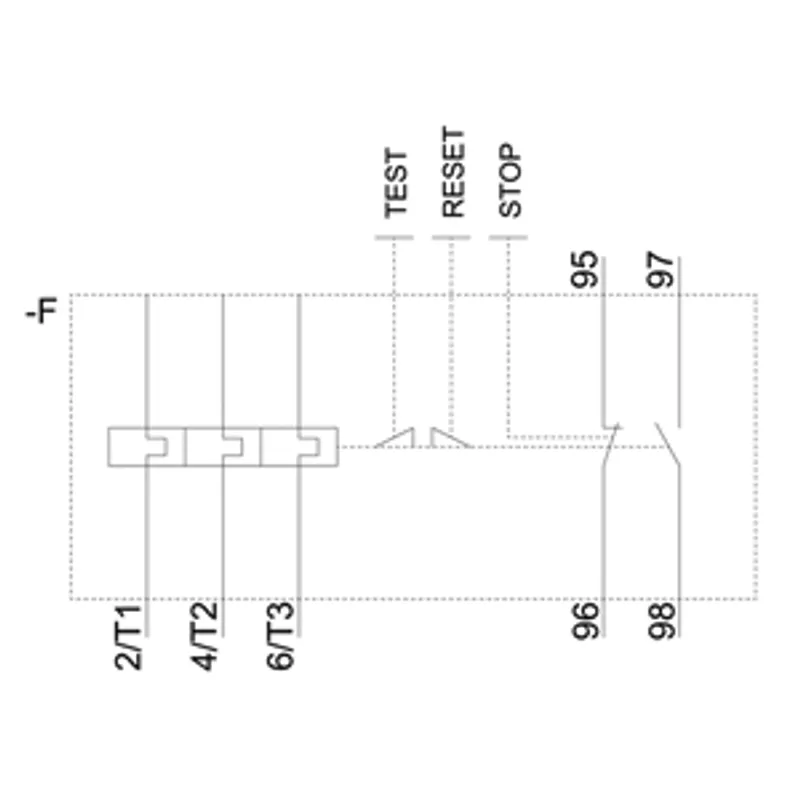

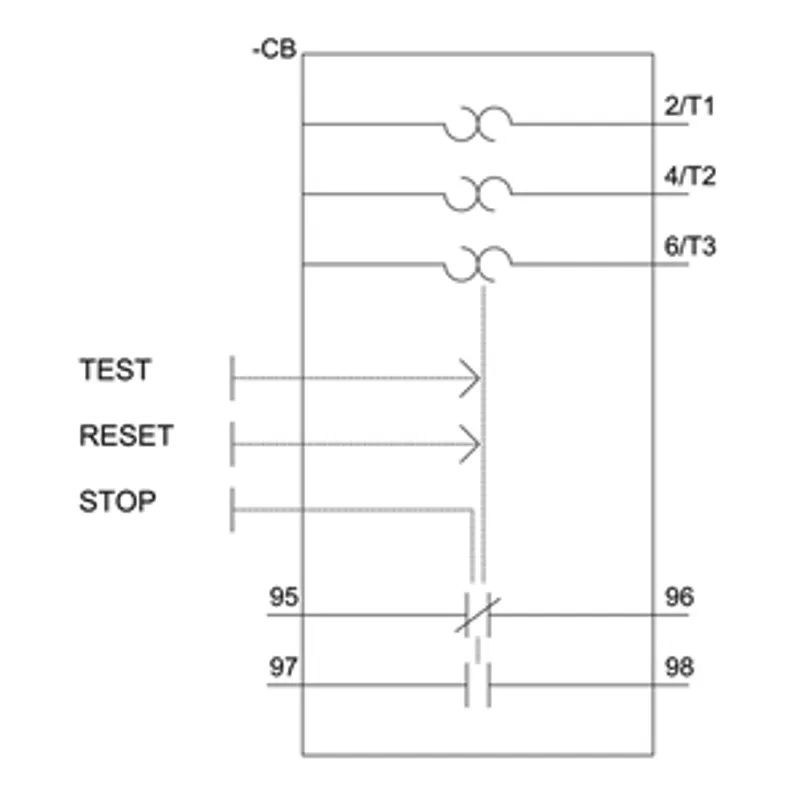

Auxiliary circuit

design of the auxiliary switch	integrated
number of NC contacts for auxiliary contacts	1
note	for contactor disconnection
number of NO contacts for auxiliary contacts	1
note	for message "Tripped"
number of CO contacts for auxiliary contacts	0
operational current of auxiliary contacts at AC-15 – at 24 V	3 A
operational current of auxiliary contacts at AC-15 – at 110 V	3 A
operational current of auxiliary contacts at AC-15 – at 120 V	3 A
operational current of auxiliary contacts at AC-15 – at 125 V	3 A
operational current of auxiliary contacts at AC-15 – at 230 V	2 A
operational current of auxiliary contacts at AC-15 – at 400 V	1 A
operational current of auxiliary contacts at AC-15 – at 690 V	0.75 A
operational current of auxiliary contacts at DC-13 – at 24 V	2 A
operational current of auxiliary contacts at DC-13 – at 60 V	0.3 A
operational current of auxiliary contacts at DC-13 – at 110 V	0.22 A
operational current of auxiliary contacts at DC-13 – at 125 V	0.22 A
operational current of auxiliary contacts at DC-13 – at 220 V	0.11 A
contact rating of auxiliary contacts according to UL	B600 / R300

Protective and monitoring functions

trip class	CLASS 10
design of the overload release	thermal

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor – at 480 V rated value	0.8 A
full-load current (FLA) for 3-phase AC motor – at 600 V rated value	0.8 A

Short-circuit protection

design of the fuse link – for short-circuit protection of the auxiliary switch required

fuse gG: 6 A, quick: 10 A

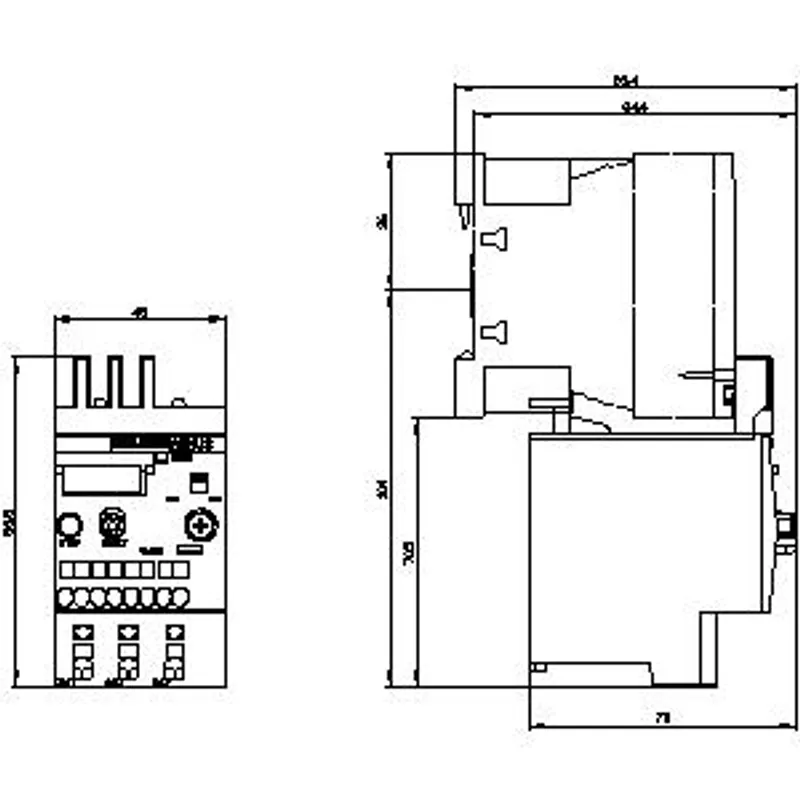

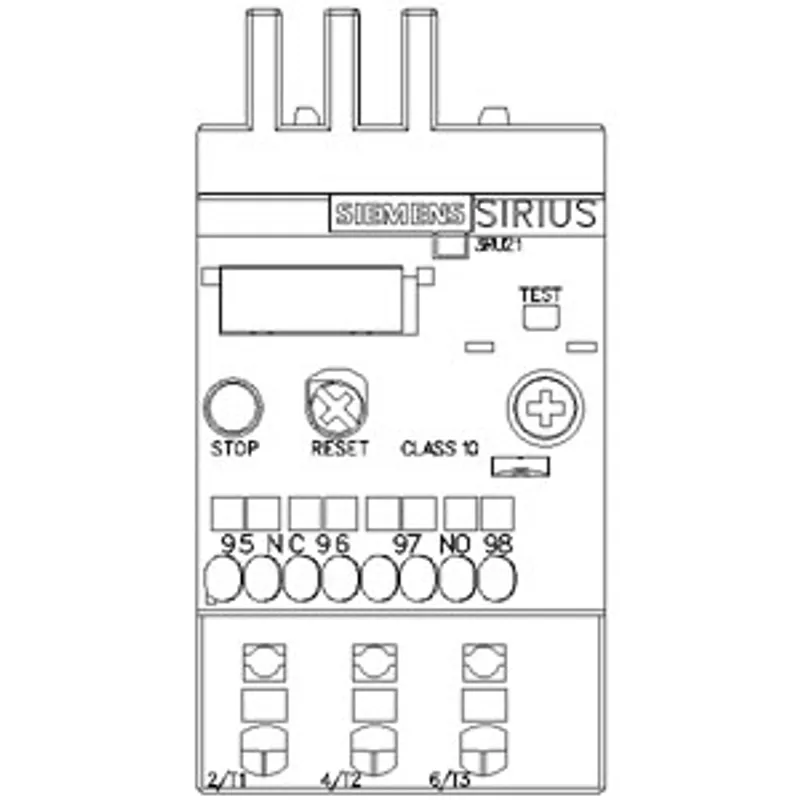

Installation/ mounting/ dimensions

mounting position	for mounting on contactors: with a vertical mounting plane +/-135° rotatable & +/- 22.5° tiltable, stand-alone installation: with a vertical mounting plane +/-135° rotatable and +/-45° tiltable; for more details see manual
fastening method	Contactor mounting
height	87 mm
width	45 mm
depth	70 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuit	No
type of electrical connection – for main current circuit	spring-loaded terminals
type of electrical connection – for auxiliary and control circuit	spring-loaded terminals
arrangement of electrical connectors for main current circuit	Top and bottom
for main contacts – — solid or stranded	1x (0,5 ... 4 mm²)
for main contacts – — finely stranded with core end processing	1x (0.5 ... 2.5 mm²)
for main contacts – — finely stranded without core end processing	1x (0.5 ... 2.5 mm²)
for main contacts – for AWG cables for main contacts	1x (20 ... 12)
for auxiliary contacts – — solid or stranded	2x (0.5 ... 2.5 mm²)
for auxiliary contacts – — finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
for auxiliary contacts – — finely stranded without core end processing	2x (0.5 ... 1.5 mm²)
for auxiliary contacts – for AWG cables for auxiliary contacts	2x (20 ... 14)
design of screwdriver shaft	Diameter 3 mm
size of the screwdriver tip	3,0 x 0,5 mm

Safety related data

failure rate [FIT] with low demand rate according to SN 31920	50 FIT
MTTF with high demand rate	2 280 a
T1 value – for proof test interval or service life according to IEC 61508	20 a
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Display

display version for switching status

Slide switch
