SIRIUS 3RU2 thermal overload relays Parts
Compare SIRIUS 3RU2 thermal overload relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | adjustable current response value current of the current-dependent overload release | operational current rated value | operational current at AC-3e at 400 V rated value | global warming potential [CO2 eq] / after end of life |
|---|---|---|---|---|---|

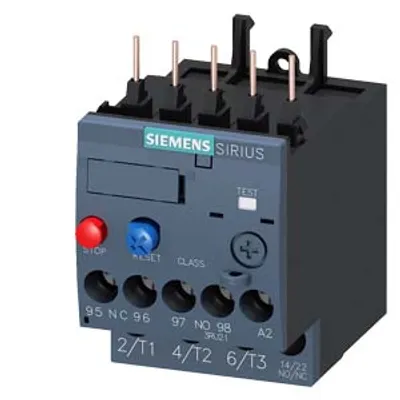

| 3RU2116-1GB0 | 0.13 kg | 4.5 ... 6.3 A | 6.3 A | 6.3 A | — |

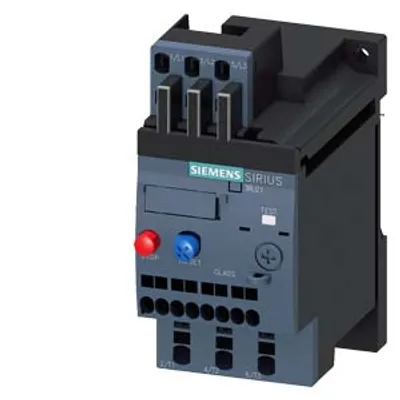

| 3RU2116-0HC1 | 0.188 kg | 0.55 ... 0.8 A | 0.8 A | 0.8 A | 0.0062 kg |

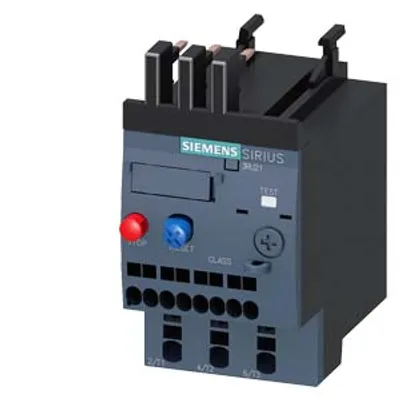

| 3RU2116-0HC0 | 0.151 kg | 0.55 ... 0.8 A | 0.8 A | 0.8 A | — |
| 3RU2116-0HB1 | 174.63 g | 0.55 ... 0.8 A | 0.8 A | 0.8 A | -0.0449 kg |

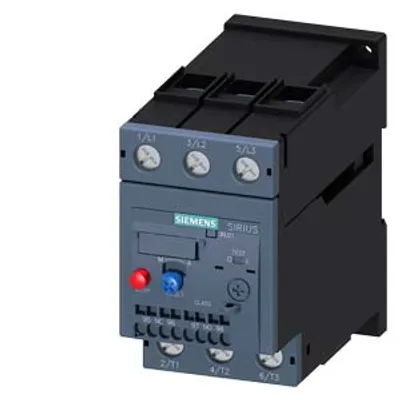

| 3RU2136-4HD1 | 478 g | 40 ... 50 A | 50 A | 50 A | -0.0703 kg |

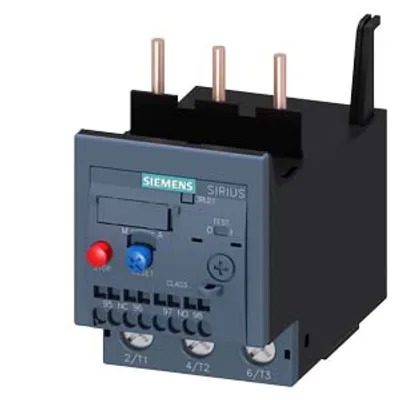

| 3RU2136-4HD0 | 0.301 kg | 40 ... 50 A | 50 A | 50 A | -0.086 kg |
| 3RU2136-4HB1 | 471 g | 40 ... 50 A | 50 A | 50 A | 0.0072 kg |
| 3RU2136-1KB0 | 303.06 g | 9 ... 12.5 A | 12.5 A | 12.5 A | -0.0625 kg |
| 3RU2136-1JD0 | 308 g | 7 ... 10 A | 10 A | 10 A | -0.086 kg |

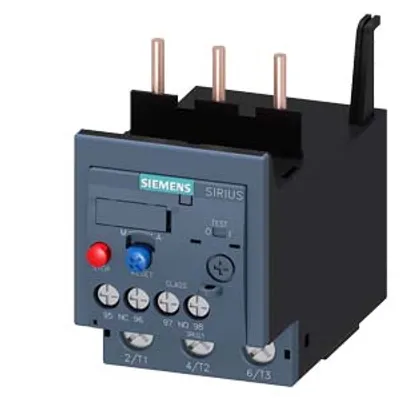

| 3RU2136-1JB0 | 0.294 kg | 7 ... 10 A | 10 A | 10 A | -0.0625 kg |
| 3RU2136-1HD0 | 0.293 kg | 5.5 ... 8 A | 8 A | 8 A | -0.086 kg |
| 3RU2136-1HB0 | 0.296 kg | 5.5 ... 8 A | 8 A | 8 A | -0.0625 kg |

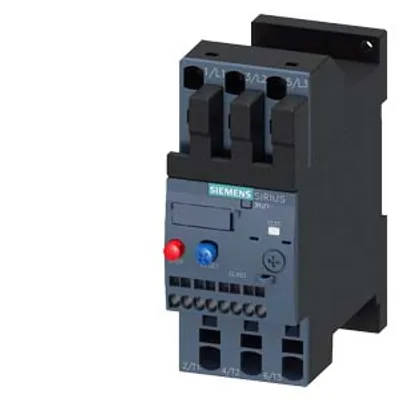

| 3RU2126-4PC1 | 0.294 kg | 30 ... 36 A | 36 A | 36 A | -0.0711 kg |

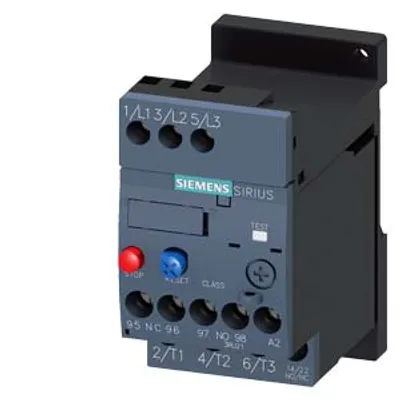

| 3RU2116-0AB1 | 0.159 kg | 0.11 ... 0.16 A | 0.16 A | 0.16 A | -0.0449 kg |
| 3RU2116-0AB0 | 138.5 g | 0.11 ... 0.16 A | 0.16 A | 0.16 A | -0.0145 kg |
| 3RU2126-4EB1 | 249.7 g | 27 ... 32 A | 32 A | 32 A | -0.0167 kg |
| 3RU2126-4EB0 | 176.58 g | 27 ... 32 A | 32 A | 32 A | -0.0268 kg |
| 3RU2126-4DC1 | 0.278 kg | 20 ... 25 A | 25 A | 25 A | -0.0711 kg |

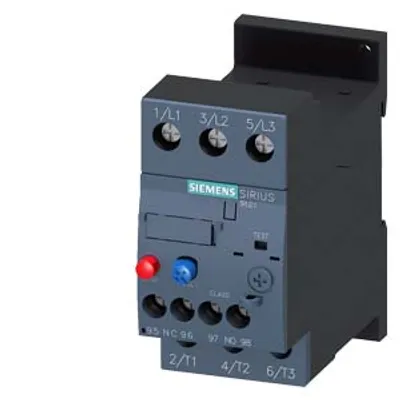

| 3RU2126-4BB1 | 0.217 kg | 14 ... 20 A | 20 A | 20 A | -0.0167 kg |
| 3RU2136-4ED0 | 315 g | 22 ... 32 A | 32 A | 32 A | -0.086 kg |

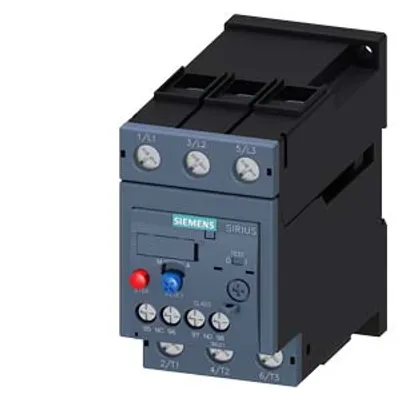

| 3RU2136-4EB1 | 469 g | 22 ... 32 A | 32 A | 32 A | 0.0072 kg |

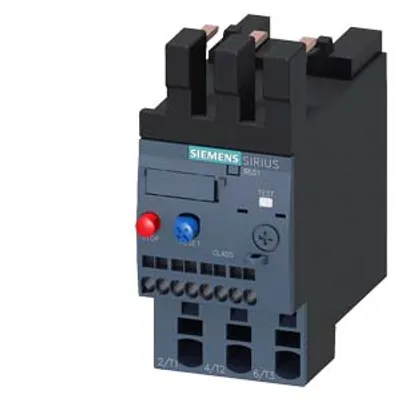

| 3RU2126-4PC0 | 0.22 kg | 30 ... 36 A | 36 A | 36 A | -0.0747 kg |
| 3RU2126-4PB1 | 0.23 kg | 30 ... 36 A | 36 A | 36 A | -0.0167 kg |

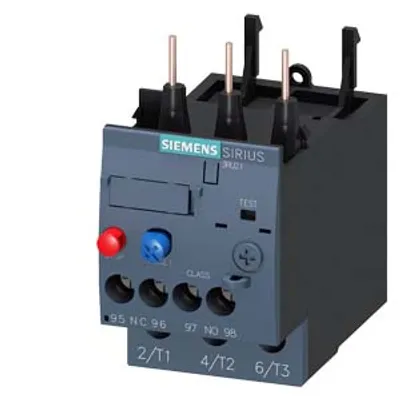

| 3RU2126-4PB0 | 193.88 g | 30 ... 36 A | 36 A | 36 A | -0.0268 kg |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| shock resistance according to IEC 60068-2-27 | 8g / 11 ms |
| reference code according to IEC 81346-2 | F |
| installation altitude at height above sea level maximum | 2 000 m |
| temperature compensation | -40 ... +60 °C |
| relative humidity during operation | 10 ... 95 % |
