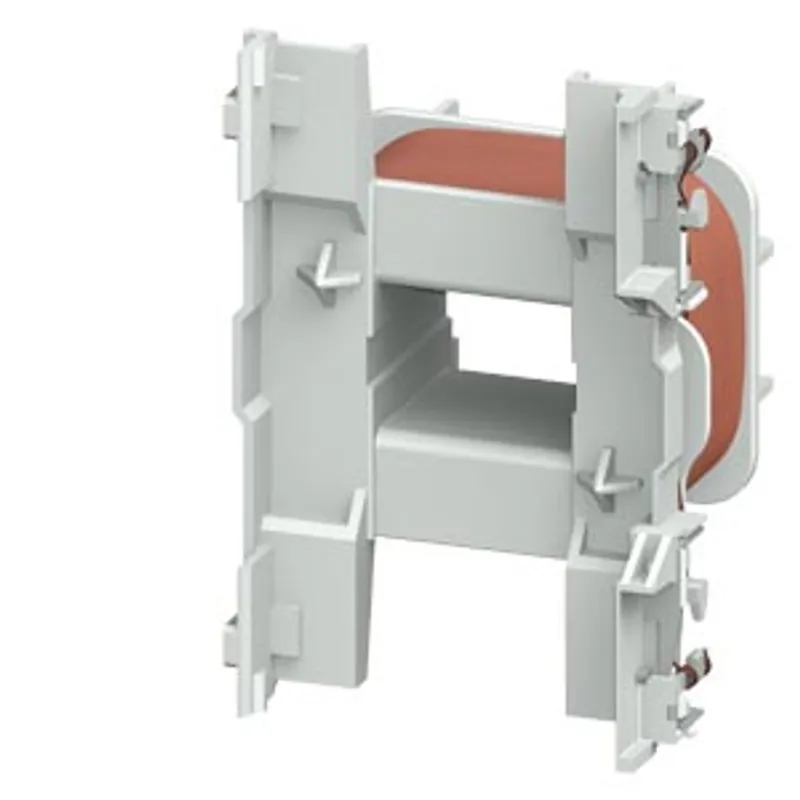

Siemens 3RT2926-5AG21
Magnetic coil 110 V AC, 50/60 Hz, for contactors 3RT2325-.A, 3RT2.26-.A, 3RT2.27-.A and 3RT2028-.A
- MPN
- 3RT2926-5AG21
- Category
- Solenoid coils
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2926-5AG21?
magnetic coil 110 V AC, 50/60 Hz, for contactors 3RT2325-.A, 3RT2.26-.A, 3RT2.27-.A and 3RT2028-.A
Specifications
General
| product brand name | SIRIUS |
| product category | Solenoid coils |
| product designation | Magnet coil |
| product type designation | 3RT29 |
General technical data
| power loss [V∙A] of magnet coil at AC typical | 10.5 VA |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| Net Weight | 0.085 kg |
| type of voltage of the control supply voltage | AC |
| control supply voltage 1 at AC — at 50 Hz rated value | 110 V |
| control supply voltage 1 at AC — at 60 Hz rated value | 110 V |
| operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz | 0.8 ... 1.1 |
| operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz | 0.85 ... 1.1 |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 77 VA |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 87 VA |
| inductive power factor with closing power of the coil — at 50 Hz | 0.82 |
| inductive power factor with closing power of the coil — at 60 Hz | 0.76 |
| apparent holding power of magnet coil at AC — at 50 Hz | 9.8 VA |
| apparent holding power of magnet coil at AC — at 60 Hz | 87 VA |
| inductive power factor with the holding power of the coil — at 50 Hz | 0.25 |
| inductive power factor with the holding power of the coil — at 60 Hz | 0.8 |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.0885 kg |
| global warming potential [CO2 eq] / during operation | 6.96 kg |
| global warming potential [CO2 eq] / after end of life | -0.0061 kg |
| global warming potential [CO2 eq] / total | 7.04 kg |
