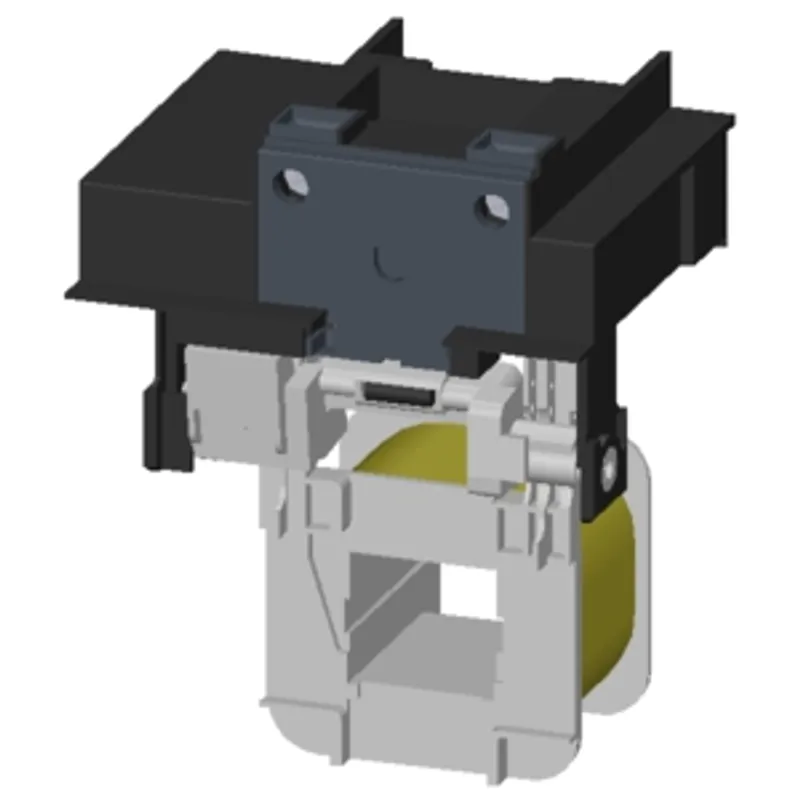

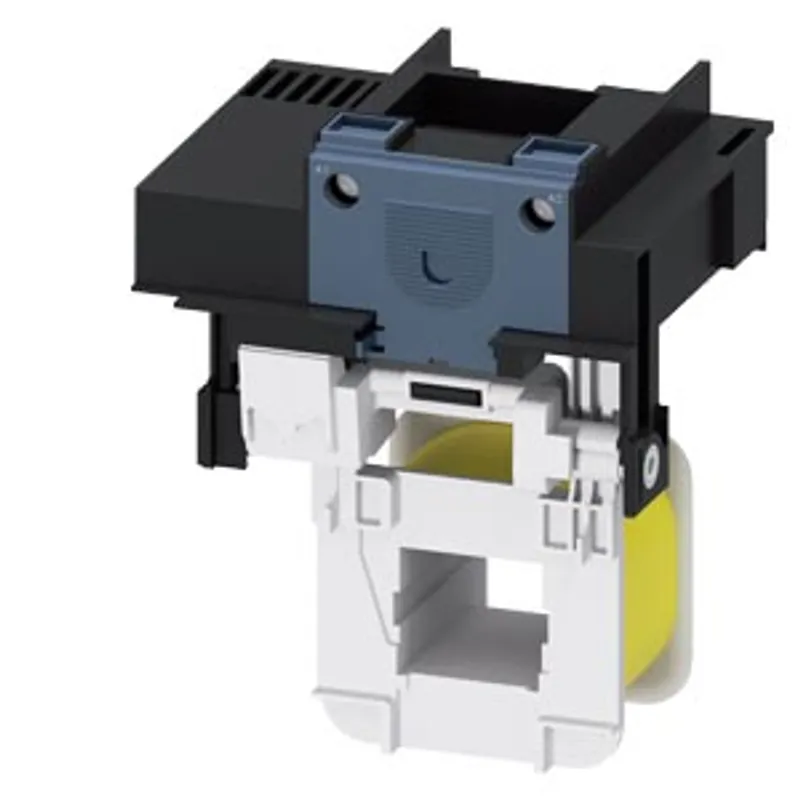

Siemens 3RT1955-5AS31-0ST0
Withdrawable drive for contactors 3RT105 AC (50...60 Hz) / DC operation, 500 ... 550 V
- MPN
- 3RT1955-5AS31-0ST0
- Category
- Solenoid coils
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT1955-5AS31-0ST0?
Withdrawable drive for contactors 3RT105 AC (50...60 Hz) / DC operation, 500 ... 550 V, Operating mechanism: Standard,economy circuit Screw terminal Reduced break time 20 ms
Specifications
General
| product brand name | SIRIUS |
| product category | Solenoid coils |
| product designation | Changeover operating mechanism |
| product type designation | 3RT19 |
General technical data
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol CAS-No. 79-94-7 |
| Net Weight | 0.524 kg |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage 1 at AC — at 50 Hz | 500 ... 550 V |
| control supply voltage 1 at AC — at 60 Hz | 500 ... 550 V |
| control supply voltage 1 at DC | 500 ... 550 V |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 300 V·A |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 300 V·A |
| inductive power factor with closing power of the coil — at 50 Hz | 0.9 |
| inductive power factor with closing power of the coil — at 60 Hz | 0.9 |
| apparent holding power of magnet coil at AC — at 50 Hz | 5.8 V·A |
| apparent holding power of magnet coil at AC — at 60 Hz | 5.8 V·A |
| inductive power factor with the holding power of the coil — at 50 Hz | 0.8 |
| inductive power factor with the holding power of the coil — at 60 Hz | 0.8 |
