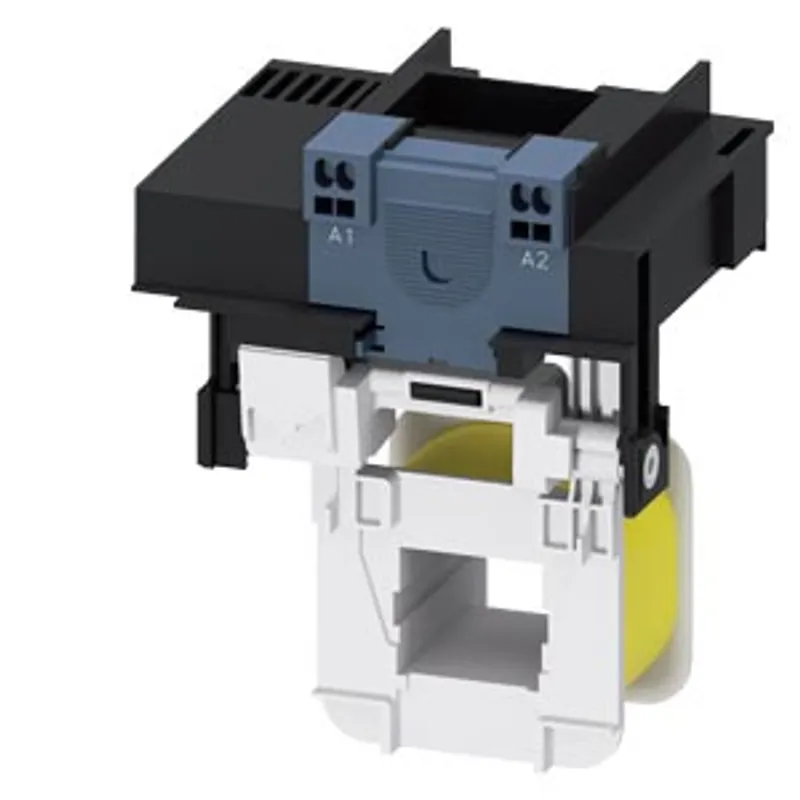

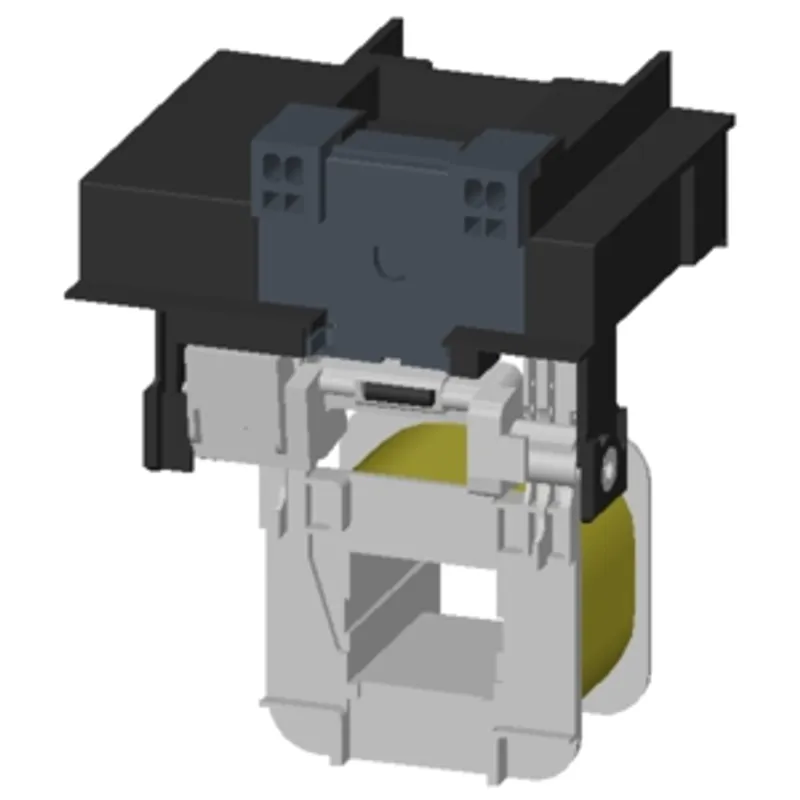

Siemens 3RT1955-5AP32
Withdrawable drive for contactors 3RT105, 3RT145 AC (50...60 Hz) / DC operation
- MPN
- 3RT1955-5AP32
- Category
- Solenoid coils
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT1955-5AP32?
Withdrawable drive for contactors 3RT105, 3RT145 AC (50...60 Hz) / DC operation, 220 ... 240 V Operating mechanism: Standard,economy circuit Spring-type terminal
Specifications
General
| product brand name | SIRIUS |
| product category | Solenoid coils |
| product designation | Changeover operating mechanism |
| product type designation | 3RT19 |
General technical data
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.49 kg |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage 1 at AC — at 50 Hz | 220 ... 240 V |
| control supply voltage 1 at AC — at 60 Hz | 220 ... 240 V |
| control supply voltage 1 at DC | 220 ... 240 V |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 300 VA |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 300 VA |
| inductive power factor with closing power of the coil — at 50 Hz | 0.9 |
| inductive power factor with closing power of the coil — at 60 Hz | 0.9 |
| apparent holding power of magnet coil at AC — at 50 Hz | 5.8 VA |
| apparent holding power of magnet coil at AC — at 60 Hz | 5.8 VA |
| inductive power factor with the holding power of the coil — at 50 Hz | 0.8 |
| inductive power factor with the holding power of the coil — at 60 Hz | 0.8 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RT1955-5AP32: frequently asked questions
When can 3RT1955-5AP32 be shipped?
3RT1955-5AP32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RT1955-5AP32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RT1955-5AP32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT1955-5AP32, subject to availability and destination.
