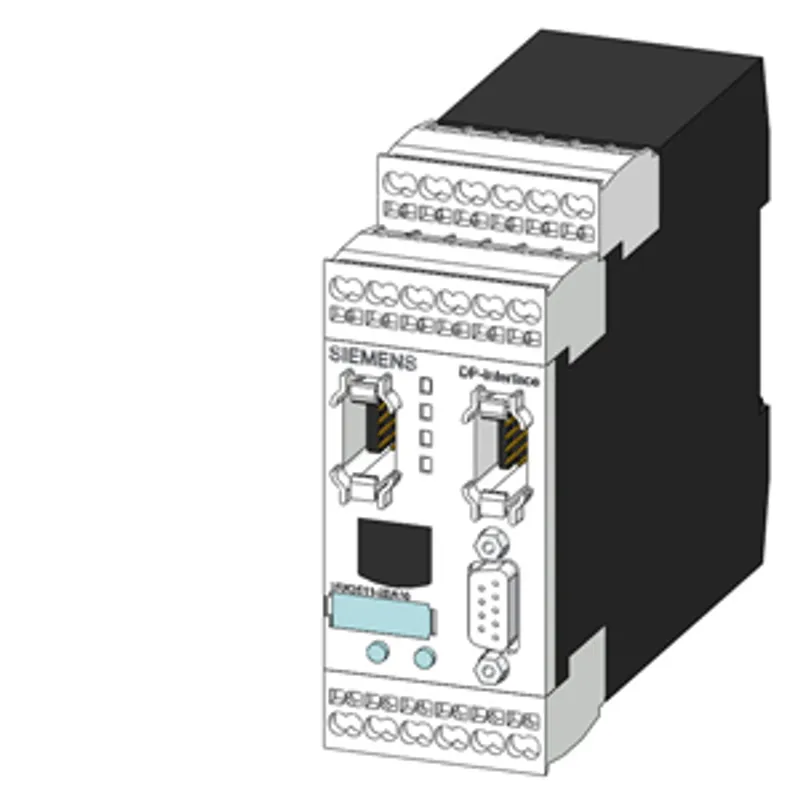

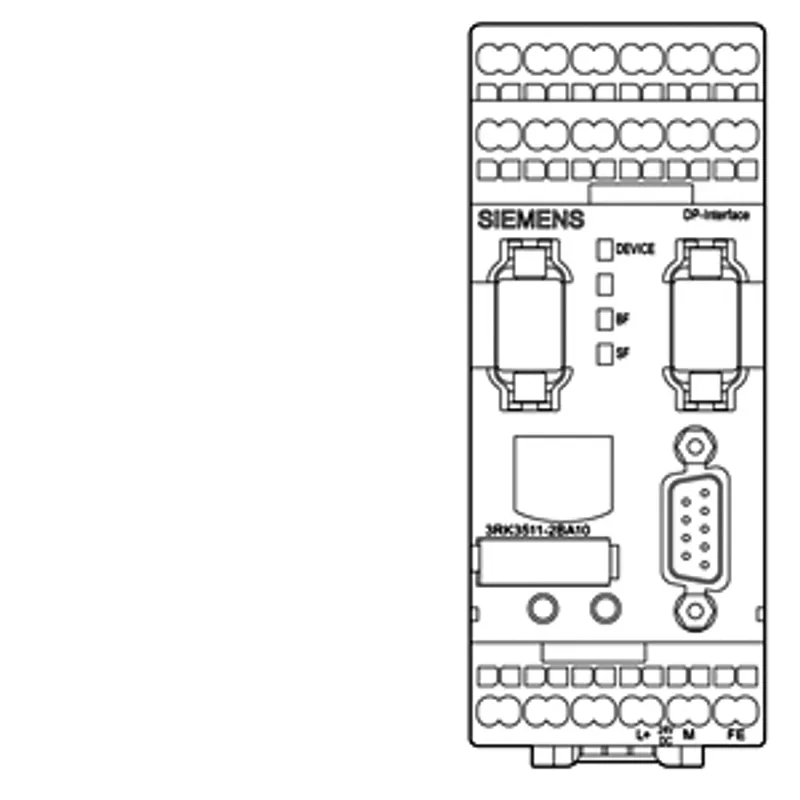

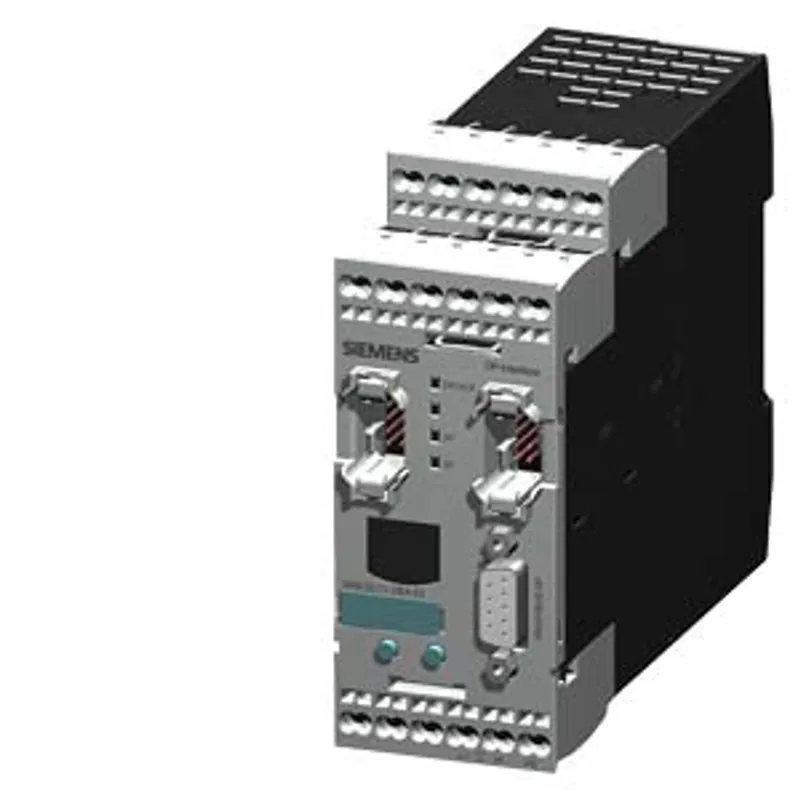

Siemens 3RK3511-2BA10
SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps
- MPN
- 3RK3511-2BA10
- Category
- 3RK35 interface modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RK3511-2BA10?
SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width spring-type terminal can be parameterized via Safety ES without connection cable
Specifications
General
| product brand name | SIRIUS |
| product category | Modular safety system |
| product designation | Interface module |
| design of the product | DP-Interface |
General technical data
| certificate of suitability UL approval | Yes |
| degree of pollution | 2 |
| shock resistance | 15 g / 11 ms |
| vibration resistance — according to IEC 60068-2-6 | 5 ... 500 Hz: 0.75 mm |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 05/01/2012 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.266 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 4 000 m |
| relative humidity during operation | 10 ... 95 % |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV (power ports) |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | Test Level 0.5 KV / 1 KV |
Communication/ Protocol
| protocol is supported — PROFIBUS DP protocol | Yes |
Control circuit/ Control
| type of voltage | DC |
| inrush current peak at 24 V | 70 A |
| duration of inrush current peak at 24 V | 1 ms |

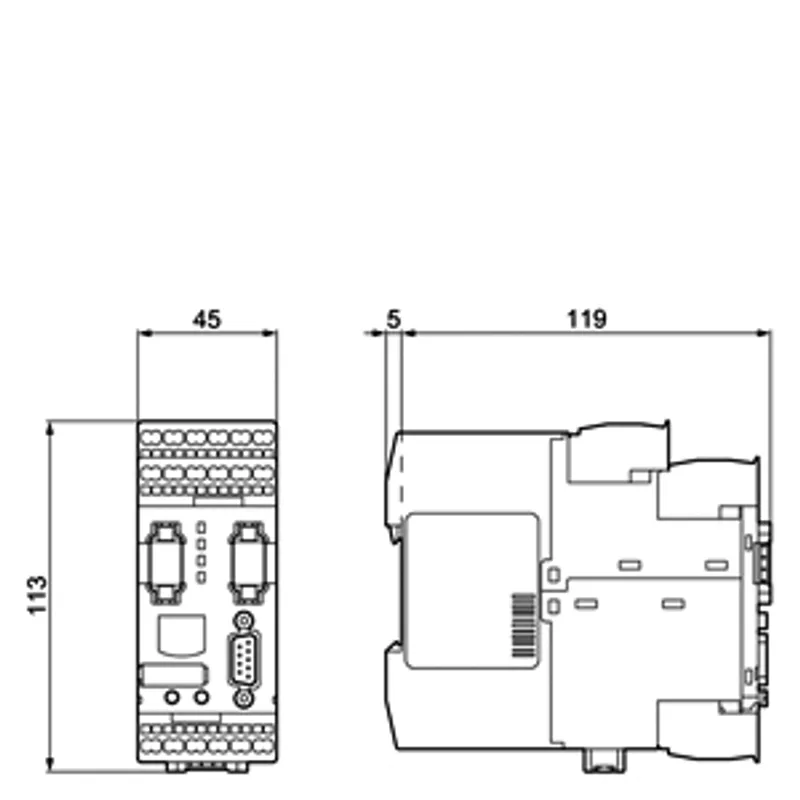

Installation/ mounting/ dimensions
| mounting position | vertical |
| fastening method | DIN rail |
| height | 113 mm |
| width | 45 mm |
| depth | 124 mm |
Connections/ Terminals
| type of connectable conductor cross-sections — for auxiliary contacts — solid | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 2x (20 ... 16) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RK3511-2BA10: frequently asked questions
When can 3RK3511-2BA10 be shipped?
3RK3511-2BA10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RK3511-2BA10 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RK3511-2BA10 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RK3511-2BA10, subject to availability and destination.
