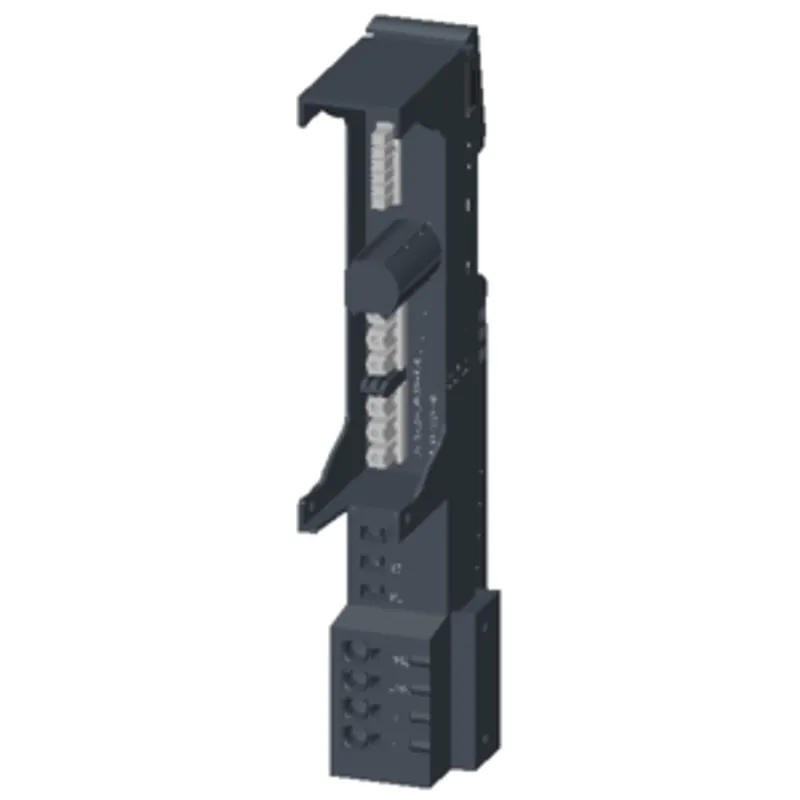

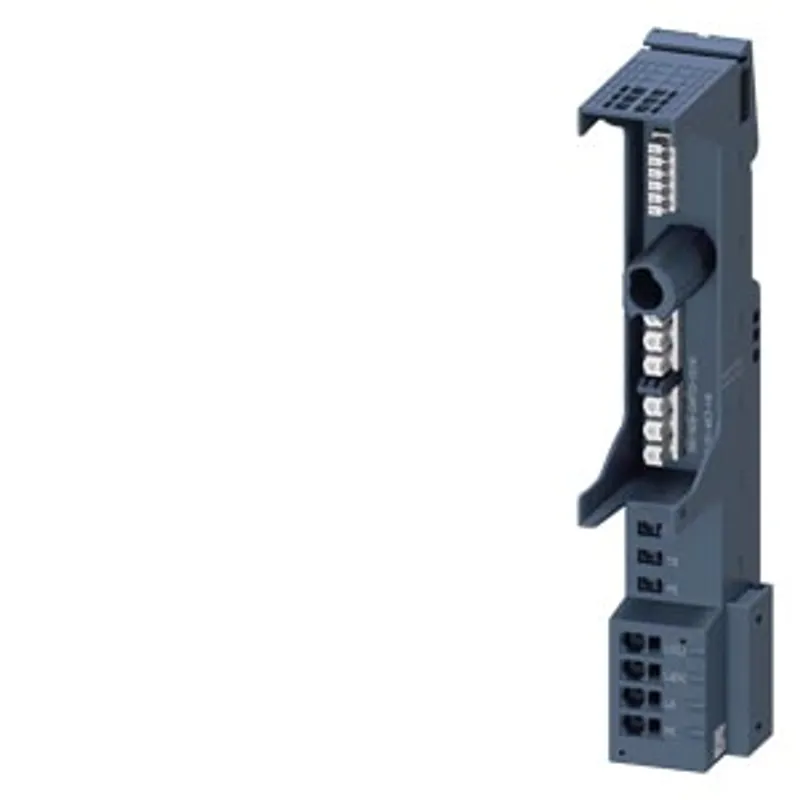

Siemens 3RK1908-0AP00-0CH0
Base unit for ET 200SP motor starter for use in the ET 200SP HA system with infeed 500 V including infeed bus…
- MPN
- 3RK1908-0AP00-0CH0
- Category
- ET 200SP motor starters
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RK1908-0AP00-0CH0?
Base unit for ET 200SP motor starter for use in the ET 200SP HA system with infeed 500 V including infeed bus cover
Specifications
General
| product brand name | SIMATIC |
| product category | Accessories |
| product designation | BaseUnit |
| design of the product | For AC feed in |
| product type designation | ET 200SP |
| product description | for e-starters and motor starters |
General technical data
| insulation voltage rated value | 500 V |
| degree of pollution | 2 |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for protective separation — between main and auxiliary circuit | 500 V |
| shock resistance | 6 g / 11 ms |
| vibration resistance | 15 mm to 6 Hz; 2 g to 500 Hz |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 04/15/2016 |
| SVHC substance name | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 112.58 g |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe |
Main circuit
| number of poles for main current circuit | 3 |
| type of voltage of the operating voltage | AC |
| operating voltage rated value maximum | 500 V |
| operating voltage of AC supply | 500 V |
| operating voltage of AC supply — for motor starter | 500 V |
| operating voltage of AC supply — for ET 200SP e-Starter | 480 V |
| operational current at AC at 400 V rated value | 32 A; Derating, see Manual |
Inputs/ Outputs
| number of digital inputs | 0 |
Supply voltage
| type of voltage of the supply voltage | DC |
| supply voltage 1 at DC rated value | 24 V |
| supply voltage 1 at DC rated value — minimum permissible | 20.4 V |
| supply voltage 1 at DC rated value — maximum permissible | 28.8 V |
| ampacity maximum | 7 A |

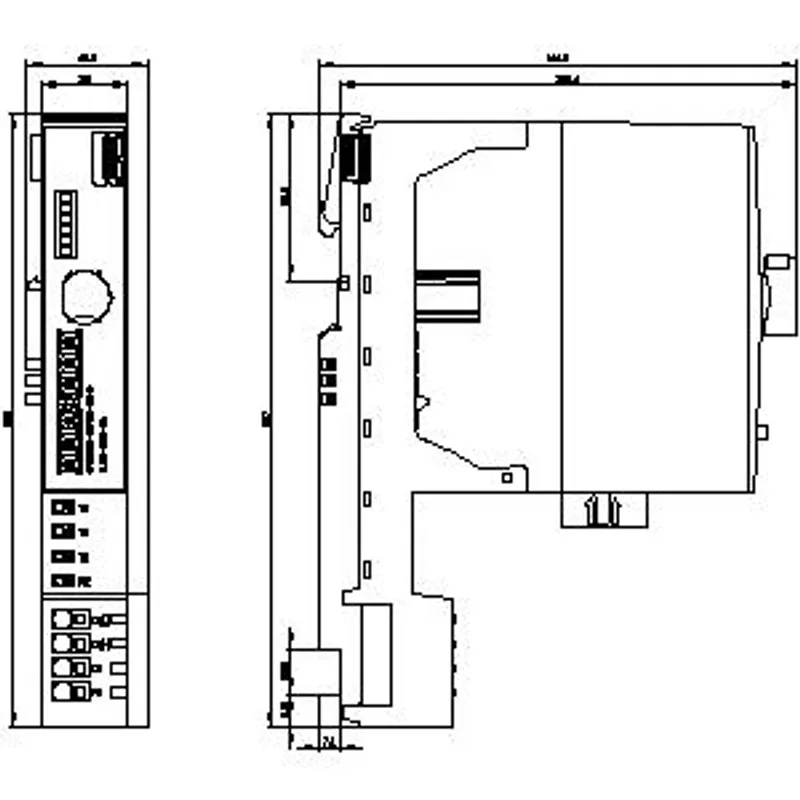

Installation/ mounting/ dimensions
| mounting position | vertical, horizontal |
| fastening method | DIN rail |
| height | 215 mm |
| width | 30 mm |
| depth | 75 mm |
| required spacing with side-by-side mounting — upwards | 50 mm |
| required spacing with side-by-side mounting — downwards | 50 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 4 000 m |
| ambient temperature — during operation | -25 ... +60 °C; For derating see manual |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| environmental category during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices) |
| relative humidity during operation | 10 ... 95 % |
| air pressure according to SN 31205 | 900 ... 1 060 hPa |
Connections/ Terminals
| type of electrical connection — for main current circuit | spring-loaded terminals (push-in) |
| type of electrical connection — for auxiliary and control circuit | spring-loaded terminals (push-in) |
| type of connecting terminal | Push-in terminal |
| type of connectable conductor cross-sections for supply — solid | 1x 1 ... 6 mm² |
| type of connectable conductor cross-sections for supply — finely stranded without core end processing | 1x 1 ... 6 mm² |
| type of connectable conductor cross-sections for supply — finely stranded with core end processing | 1x 1 ... 6 mm² |
| type of connectable conductor cross-sections — for AWG cables for supply | 1x 18 ... 10 |
| type of connectable conductor cross-sections for load-side outgoing feeder — solid | 1x 0,5 ... 2,5 mm² |
| type of connectable conductor cross-sections for load-side outgoing feeder — finely stranded without core end processing | 1x 0,5 ... 2,5 mm² |
| type of connectable conductor cross-sections for load-side outgoing feeder — finely stranded with core end processing | 1x 0,5 ... 2,5 mm² |
| type of connectable conductor cross-sections for AWG cables for load-side outgoing feeder | 1x 20 ... 12 |
| shape of the screwdriver tip | Slot |
| size of the screwdriver tip | Standard screwdriver 0.6 mm x 3.5 mm |
