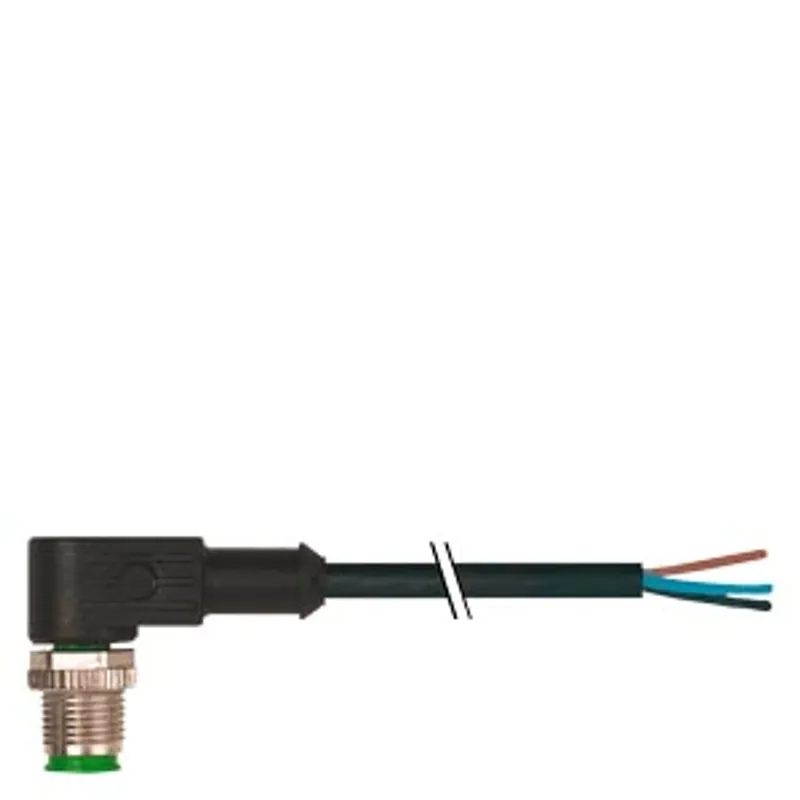

Siemens 3RK1902-4HC01-5AA0
Control cable pre-assembled at one end M12 plug angled
- MPN
- 3RK1902-4HC01-5AA0
- Category
- Miscellaneous accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RK1902-4HC01-5AA0?
control cable pre-assembled at one end M12 plug angled, 5-pole with 10 m cable 5 x 0.34 mm2 A-encoded maximal 4 A PUR sheath black
Specifications
General technical data
| product description | M12 lead, angled on one side |
| wire length | 10 m |
General technical data
| ampacity per pin maximum | 4 A |
| operating voltage at DC maximum | 125 V |
| surge voltage resistance rated value | 1 500 V |
Mechanical data
| type of connection technology | plugged, screwed |
| connector type | M12 |
| connector coding of the M12 circular connector | A |
| number of electrical cores | 5 |
| type of cable outlet | angled |
| number of poles | 5 |
| color of cable sheath | Black |
| material of cable sheath | PUR-OB |

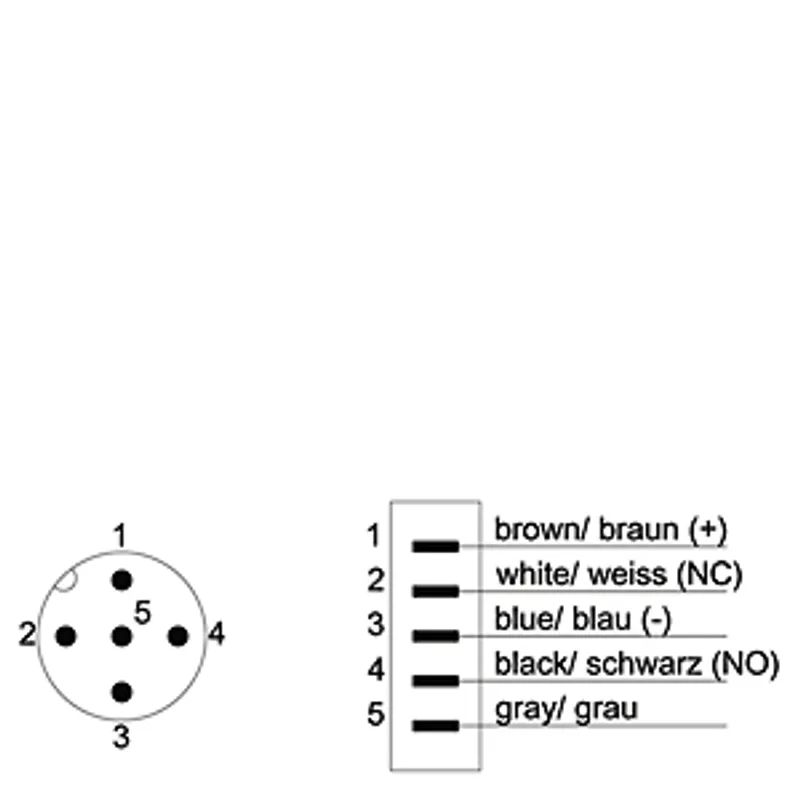

| color of the insulation of data wires | see wiring diagram |
| material of the wire insulation | polypropylene (PP) |
| design of the shield | unshielded |
| type of strain relief | cast |
| outer diameter — of the cable | 5 mm |
| outer diameter — of inner conductor | 0.34 mm |
| type of connectable conductor cross-sections stranded | 5 x 0.34 mm² |
| type of plug interlock | M12 x 1 thread |
| cable end components | open on one side |
Ambient conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 80 °C |
| protection class IP | IP67 |
| chemical resistance — to ASTM oil 2 | conditional, must be checked relative to the application |
| chemical resistance — to mineral oil | conditional, must be checked relative to the application |
| chemical resistance — to water | conditional, must be checked relative to the application |
| chemical resistance — to grease | conditional, must be checked relative to the application |
| degree of pollution | 3 |
Certificates/ approvals
| certificate of suitability — CSA approval | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — IEC approval | Yes |
