Siemens 3RH2911-2GA22

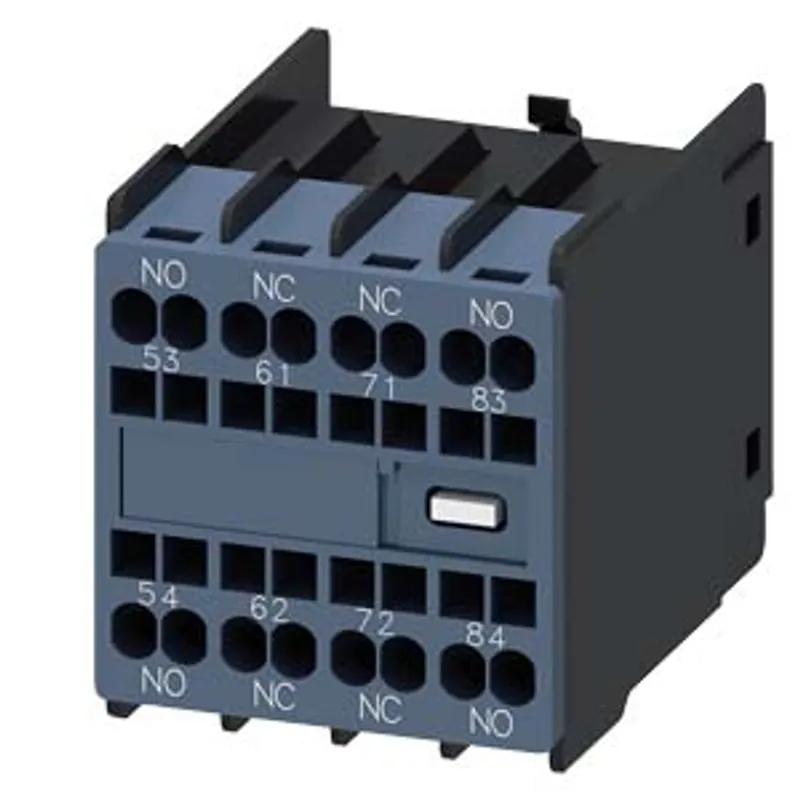

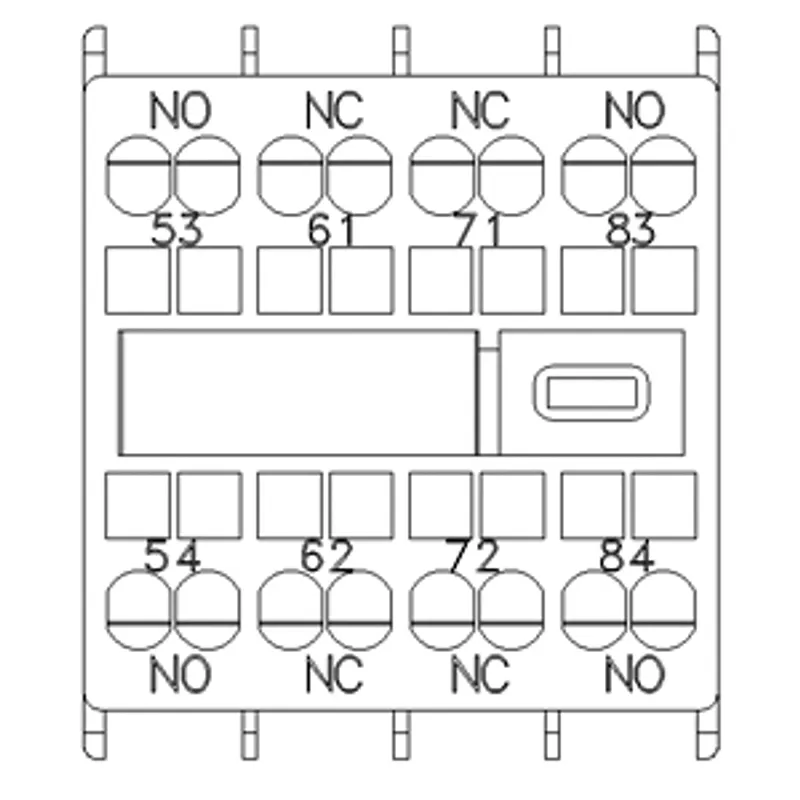

Auxiliary switch, on the front, 2 NO + 2 NC, 53/54, 61/62, 71/72, 83/84, current path: 1 NO, 1 NC, 1 NC, 1 NO

MPN: 3RH2911-2GA22
Category: Instantaneous

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RH2911-2GA22?

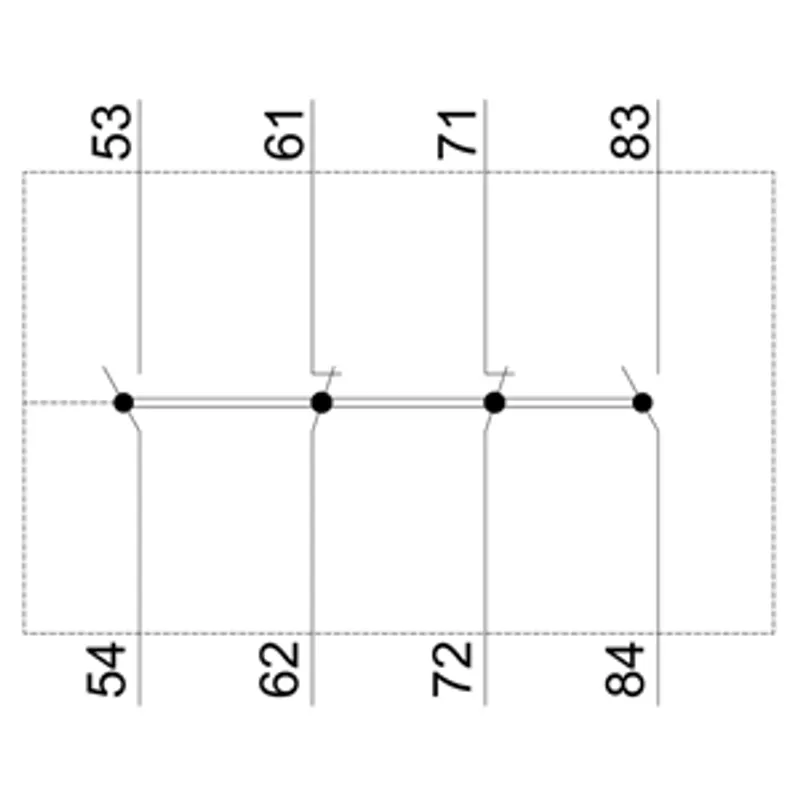

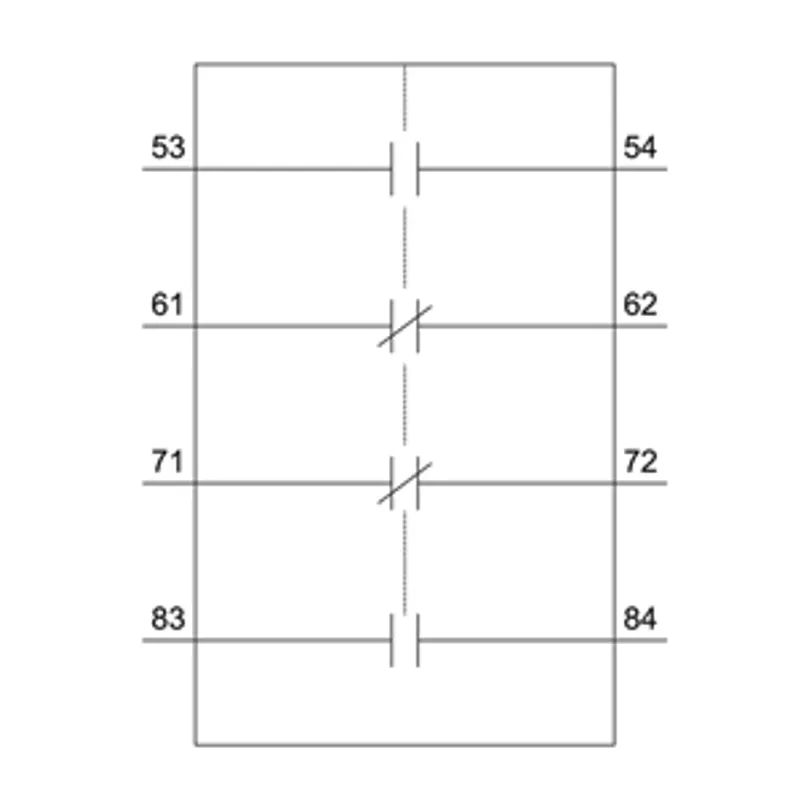

auxiliary switch, on the front, 2 NO + 2 NC, 53/54, 61/62, 71/72, 83/84, current path: 1 NO, 1 NC, 1 NC, 1 NO, spring-loaded terminal, physically coded, only with contactor relays 3RH2140 and 3RH2440 combinable (according to EN 50011)

Specifications

General technical data

insulation voltage with degree of pollution 3 at AC rated value	690 V
surge voltage resistance rated value	6 kV
protection class IP on the front	IP20
mechanical service life (operating cycles) typical	10 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical	200 000
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	60.69 g
number of NC contacts for auxiliary contacts – instantaneous contact	2
number of NC contacts for auxiliary contacts – lagging switching	0
number of NO contacts for auxiliary contacts – instantaneous contact	2
number of NO contacts for auxiliary contacts – leading contact	0
number of CO contacts of auxiliary contacts instantaneous contact	0
operational current at AC-15 at 690 V rated value	1 A
operational current of auxiliary contacts at AC-12 – at 24 V	10 A
operational current of auxiliary contacts at AC-12 – at 230 V	10 A
operational current of auxiliary contacts at AC-14 – at 125 V	6 A
operational current of auxiliary contacts at AC-14 – at 250 V	6 A
operational current of auxiliary contacts at AC-12 maximum	10 A
operational current of auxiliary contacts at AC-15 – at 24 V	6 A
operational current of auxiliary contacts at AC-15 – at 230 V	6 A
operational current of auxiliary contacts at AC-15 – at 400 V	3 A
operational current of auxiliary contacts at DC-12 – at 24 V	10 A
operational current of auxiliary contacts at DC-12 – at 110 V	3 A
operational current of auxiliary contacts at DC-12 – at 220 V	1 A
operational current with 2 current paths in series at DC-12 – at 24 V rated value	10 A
operational current with 2 current paths in series at DC-12 – at 60 V rated value	10 A
operational current with 2 current paths in series at DC-12 – at 110 V rated value	4 A
operational current with 2 current paths in series at DC-12 – at 220 V rated value	2 A
operational current with 2 current paths in series at DC-12 – at 440 V rated value	1.3 A
operational current with 2 current paths in series at DC-12 – at 600 V rated value	0.65 A
operational current with 3 current paths in series at DC-12 – at 24 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 60 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 110 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 220 V rated value	3.6 A
operational current with 3 current paths in series at DC-12 – at 440 V rated value	2.5 A
operational current with 3 current paths in series at DC-12 – at 600 V rated value	1.8 A
operational current with 2 current paths in series at DC-13 – at 24 V rated value	10 A
operational current with 2 current paths in series at DC-13 – at 60 V rated value	3.5 A
operational current with 2 current paths in series at DC-13 – at 110 V rated value	1.3 A
operational current with 2 current paths in series at DC-13 – at 220 V rated value	0.9 A
operational current with 2 current paths in series at DC-13 – at 440 V rated value	0.2 A
operational current with 2 current paths in series at DC-13 – at 600 V rated value	0.1 A
operational current with 3 current paths in series at DC-13 – at 24 V rated value	10 A
operational current with 3 current paths in series at DC-13 – at 60 V rated value	4.7 A
operational current with 3 current paths in series at DC-13 – at 110 V rated value	3 A
operational current with 3 current paths in series at DC-13 – at 220 V rated value	1.2 A
operational current with 3 current paths in series at DC-13 – at 440 V rated value	0.5 A
operational current with 3 current paths in series at DC-13 – at 600 V rated value	0.26 A
operational current of auxiliary contacts at DC-13 – at 24 V	6 A
operational current of auxiliary contacts at DC-13 – at 48 V	2 A
operational current of auxiliary contacts at DC-13 – at 60 V	2 A
operational current of auxiliary contacts at DC-13 – at 110 V	1 A
operational current of auxiliary contacts at DC-13 – at 125 V	0.9 A
operational current of auxiliary contacts at DC-13 – at 220 V	0.3 A
operational current of auxiliary contacts at DC-13 – at 250 V	0.3 A
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V	C characteristic: 10 A; 0.4 kA
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)

Ambient conditions

ambient temperature – during operation	-25 ... +60 °C
ambient temperature – during storage	-55 ... +80 °C

Safety related data

product function – mirror contact according to IEC 60947-4-1	No
product function – positively driven operation according to IEC 60947-5-1	Yes

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V	C characteristic: 10 A; 0.4 kA
design of the fuse link for short-circuit protection of the auxiliary switch required	gG: 10 A (690 V, 1 kA)

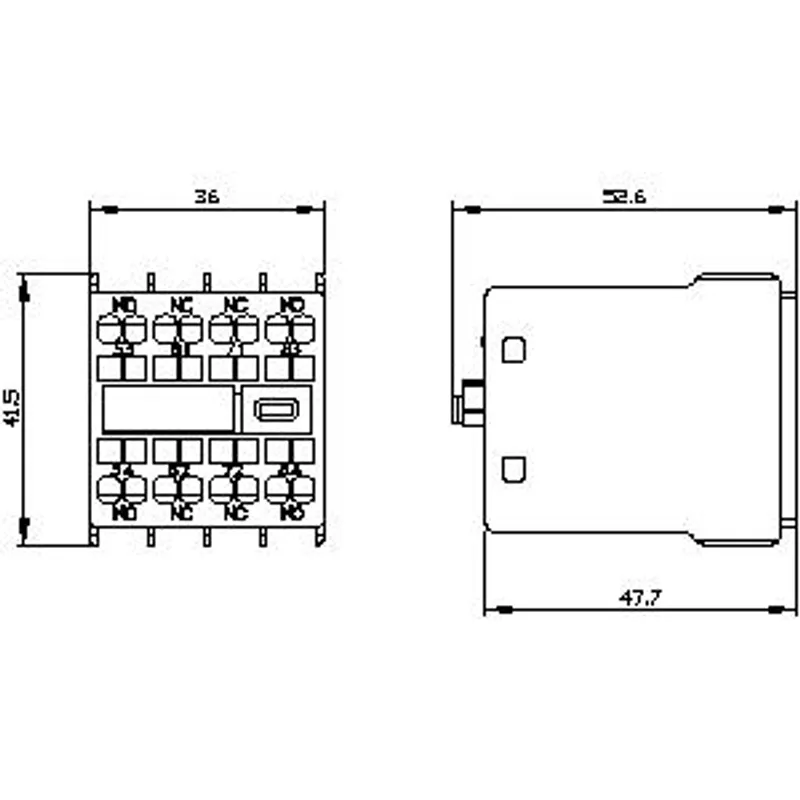

Installation/ mounting/ dimensions

fastening method	snap-on mounting
height	41.5 mm
width	36 mm
depth	47.7 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuit	spring-loaded terminals
connectable conductor cross-section for auxiliary contacts – solid or stranded	0.5 ... 2.5 mm²
connectable conductor cross-section for auxiliary contacts – finely stranded with core end processing	0.5 ... 2.5 mm²
connectable conductor cross-section for auxiliary contacts – finely stranded without core end processing	0.5 ... 2.5 mm²
for auxiliary contacts – — solid or stranded	2x (0.5 ... 2.5 mm²)
for auxiliary contacts – — finely stranded with core end processing	2x (0.5 ... 1.5 mm²)
for auxiliary contacts – — finely stranded without core end processing	2x (0.5 ... 2.5 mm²)
for auxiliary contacts – for AWG cables for auxiliary contacts	2x (20 ... 14)
AWG number as coded connectable conductor cross section for auxiliary contacts	20 ... 14
