Instantaneous Parts
Compare Instantaneous
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | number of NC contacts for auxiliary contacts — instantaneous contact | number of NO contacts for auxiliary contacts — instantaneous contact | height | depth |
|---|---|---|---|---|---|
| 3RH2911-1HA22 | 54.69 g | 2 | 2 | 37.5 mm | 43.7 mm |
| 3RH2911-1HA21 | 0.052 g | 1 | 2 | 37.5 mm | 43.7 mm |
| 3RH2911-1HA20 | 44.69 g | — | — | 37.5 mm | 43.7 mm |
| 3RH2911-1HA13 | 55.69 g | 3 | 1 | 37.5 mm | 43.7 mm |
| 3RH2911-2GA22 | 60.69 g | — | — | 41.5 mm | 47.7 mm |
| 3RH2911-1GA04 | 55.69 g | 4 | 0 | 37.5 mm | 43.7 mm |
| 3RH2911-1FC22 | 52 g | 0 | 0 | 37.5 mm | 43.7 mm |
| 3RH2911-2FA40 | 61.69 g | 0 | 4 | 41.5 mm | 47.7 mm |

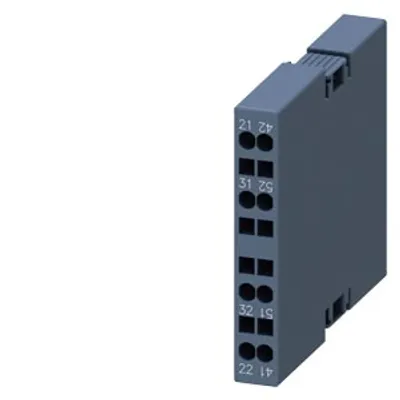

| 3RH2911-2DA02 | 49.69 g | 2 | 0 | 64.8 mm | 66 mm |
| 3RH2911-1YA21-0MA0 | 0.052 kg | 1 | 2 | 37.5 mm | 43.7 mm |
| 3RH2911-1XA31-0MA0 | 0.058 g | 1 | 3 | 37.5 mm | 43.7 mm |
| 3RH2911-1FA40 | 56.69 g | 0 | 4 | 37.5 mm | 43.7 mm |
| 3RH2911-1FA22-0MA0 | 0.055 g | 2 | 2 | 37.5 mm | 43.7 mm |
| 3RH2911-1XA04-0MA0 | 0.052 g | 4 | 0 | 37.5 mm | 43.7 mm |
| 3RH2911-1NF20 | 0.045 g | 0 | 2 | 37.5 mm | 43.7 mm |
| 3RH2911-1NF11 | 0.047 g | 1 | 1 | 37.5 mm | 43.7 mm |
| 3RH2911-1NF02 | 0.043 g | 2 | 0 | 37.5 mm | 43.7 mm |
| 3RH2911-1NE22 | 0.055 g | 2 | 2 | 37.5 mm | 43.7 mm |

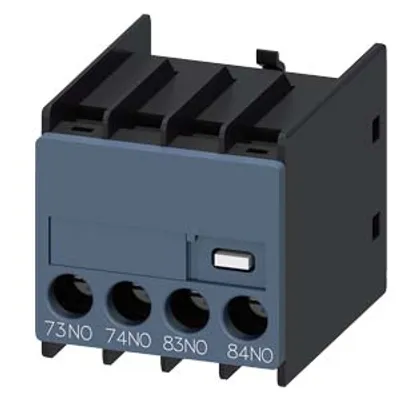

| 3RH2911-1MA20 | 50.99 g | 0 | 2 | 37.5 mm | 43.7 mm |

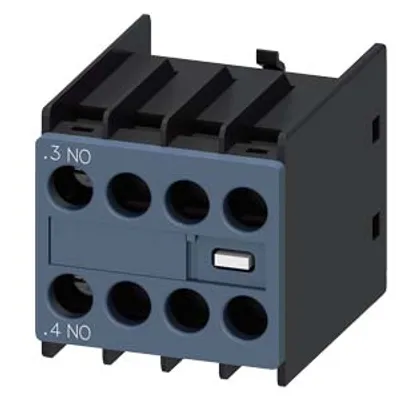

| 3RH2911-1HA10 | 0.04 g | 0 | 1 | 37.5 mm | 43.7 mm |
| 3RH2911-1HA03 | 0.052 g | 3 | 0 | 37.5 mm | 43.7 mm |
| 3RH2911-2HA30 | 0.06 g | 0 | 3 | 41.5 mm | 47.7 mm |

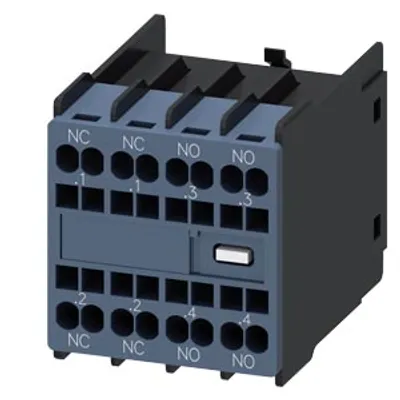

| 3RH2911-2HA22 | 59.69 g | 2 | 2 | 41.5 mm | 47.7 mm |
| 3RH2911-2HA21 | 0.056 g | 1 | 2 | 41.5 mm | 47.7 mm |
Common to all listed parts
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
| protection class IP on the front | IP20 |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| number of CO contacts of auxiliary contacts instantaneous contact | 0 |
| fastening method | snap-on mounting |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 14 |
