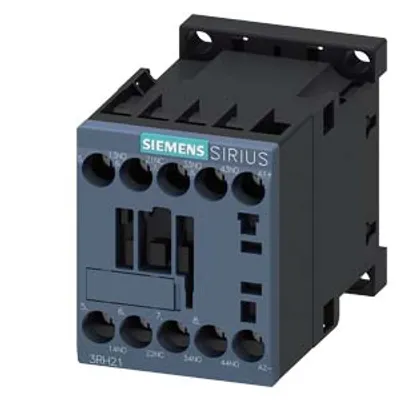

Siemens 3RH2131-1VB40-Z W96 – Coupling contactor relay, 3 NO + 1 NC, 24 V DC

Name: Siemens 3RH2131-1VB40-Z W96 – Coupling contactor relay, 3 NO + 1 NC, 24 V DC
Brand: Siemens
SKU: 3RH2131-1VB40-Z W96

MPN: 3RH2131-1VB40-Z W96 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Circuit Protection & Switching
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.29 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3RH2131-1VB40-Z W96 be shipped?

3RH2131-1VB40-Z W96 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RH2131-1VB40-Z W96 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RH2131-1VB40-Z W96 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RH2131-1VB40-Z W96, subject to availability and destination.

coupling contactor relay, 3 NO + 1 NC, 24 V DC, 0.85-1.85* Us, with integrated diode, screw terminal, frame size S00, multi-unit packaging, pack = 72 units

Specifications

General technical data

size of contactor	S00
product extension auxiliary switch	No
power loss [W] for rated value of the current without load current share typical	1.6 W
insulation voltage with degree of pollution 3 at AC rated value	690 V
degree of pollution	3
surge voltage resistance rated value	6 kV
shock resistance at rectangular impulse – at DC	10 g / 5 ms, 5 g / 10 ms
shock resistance with sine pulse – at DC	15 g / 5 ms, 8 g / 10 ms
mechanical service life (operating cycles) – of contactor typical	30 000 000
reference code according to IEC 81346-2	K
Substance Prohibitance (day/month/year)	10/01/2009
SVHC substance name	Lead CAS-No. 7439-92-1
Net Weight	0.279 kg

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature – during operation	-25 ... +50 °C
ambient temperature – during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %

Main circuit

no-load switching frequency – at AC	10 000 1/h
no-load switching frequency – at DC	10 000 1/h

Control circuit/ Control

type of voltage of the control supply voltage	DC
control supply voltage at DC rated value	24 V
operating range factor control supply voltage rated value of magnet coil at DC – initial value	0.85
operating range factor control supply voltage rated value of magnet coil at DC – full-scale value	1.85
design of the surge suppressor	diode
closing power of magnet coil at DC	1.6 W
holding power of magnet coil at DC	1.6 W
closing delay – at DC	25 ... 120 ms
opening delay – at DC	20 ... 80 ms
arcing time	10 ... 15 ms

Auxiliary circuit

number of NC contacts for auxiliary contacts	1
instantaneous contact	1
number of NO contacts for auxiliary contacts	3
instantaneous contact	3
identification number and letter for switching elements	31 E
operational current at AC-12 maximum	10 A
operational current at AC-15 – at 230 V rated value	10 A
operational current at AC-15 – at 400 V rated value	3 A
operational current at AC-15 – at 500 V rated value	2 A
operational current at AC-15 – at 690 V rated value	1 A
operational current at 1 current path at DC-12 – at 24 V rated value	10 A
operational current at 1 current path at DC-12 – at 60 V rated value	6 A
operational current at 1 current path at DC-12 – at 110 V rated value	3 A
operational current at 1 current path at DC-12 – at 220 V rated value	1 A
operational current at 1 current path at DC-12 – at 440 V rated value	0.3 A
operational current at 1 current path at DC-12 – at 600 V rated value	0.15 A
operational current with 2 current paths in series at DC-12 – at 24 V rated value	10 A
operational current with 2 current paths in series at DC-12 – at 60 V rated value	10 A
operational current with 2 current paths in series at DC-12 – at 110 V rated value	4 A
operational current with 2 current paths in series at DC-12 – at 220 V rated value	2 A
operational current with 2 current paths in series at DC-12 – at 440 V rated value	1.3 A
operational current with 2 current paths in series at DC-12 – at 600 V rated value	0.65 A
operational current with 3 current paths in series at DC-12 – at 24 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 60 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 110 V rated value	10 A
operational current with 3 current paths in series at DC-12 – at 220 V rated value	3.6 A
operational current with 3 current paths in series at DC-12 – at 440 V rated value	2.5 A
operational current with 3 current paths in series at DC-12 – at 600 V rated value	1.8 A
operating frequency at DC-12 maximum	1 000 1/h
operational current at 1 current path at DC-13 – at 24 V rated value	10 A
operational current at 1 current path at DC-13 – at 60 V rated value	2 A
operational current at 1 current path at DC-13 – at 110 V rated value	1 A
operational current at 1 current path at DC-13 – at 220 V rated value	0.3 A
operational current at 1 current path at DC-13 – at 440 V rated value	0.14 A
operational current at 1 current path at DC-13 – at 600 V rated value	0.1 A
operational current with 2 current paths in series at DC-13 – at 24 V rated value	10 A
operational current with 2 current paths in series at DC-13 – at 60 V rated value	3.5 A
operational current with 2 current paths in series at DC-13 – at 110 V rated value	1.3 A
operational current with 2 current paths in series at DC-13 – at 220 V rated value	0.9 A
operational current with 2 current paths in series at DC-13 – at 440 V rated value	0.2 A
operational current with 2 current paths in series at DC-13 – at 600 V rated value	0.1 A
operational current with 3 current paths in series at DC-13 – at 24 V rated value	10 A
operational current with 3 current paths in series at DC-13 – at 60 V rated value	4.7 A
operational current with 3 current paths in series at DC-13 – at 110 V rated value	3 A
operational current with 3 current paths in series at DC-13 – at 220 V rated value	1.2 A
operational current with 3 current paths in series at DC-13 – at 440 V rated value	0.5 A
operational current with 3 current paths in series at DC-13 – at 600 V rated value	0.26 A
operating frequency at DC-13 maximum	1 000 1/h
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to UL

A600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V	C characteristic: 10 A; 0.4 kA
design of the fuse link for short-circuit protection of the auxiliary switch required	gG: 10 A (690 V, 1 kA)

Installation/ mounting/ dimensions

mounting position	+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	57.5 mm
width	45 mm
depth	73 mm
with side-by-side mounting – — forwards	10 mm
with side-by-side mounting – — upwards	10 mm
with side-by-side mounting – — downwards	10 mm
with side-by-side mounting – — at the side	0 mm
for grounded parts – — forwards	10 mm
for grounded parts – — upwards	10 mm
for grounded parts – — at the side	6 mm
for grounded parts – — downwards	10 mm
for live parts – — forwards	10 mm
for live parts – — upwards	10 mm
for live parts – — downwards	10 mm
for live parts – — at the side	6 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuit	screw-type terminals
for auxiliary contacts – — solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
for auxiliary contacts – — finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
for auxiliary contacts – for AWG cables for auxiliary contacts	2x (20 ... 16), 2x (18 ... 14), 2x 12

Safety related data

product function – positively driven operation according to IEC 60947-5-1	Yes
product function – suitable for safety function	Yes
suitability for use safety-related switching OFF	Yes
service life maximum	20 a
proportion of dangerous failures – with low demand rate according to SN 31920	40 %
proportion of dangerous failures – with high demand rate according to SN 31920	73 %
B10 value with high demand rate according to SN 31920	1 000 000; With 0.3 x Ie
failure rate [FIT] with low demand rate according to SN 31920	100 FIT
device type according to ISO 13849-1	3
overdimensioning according to ISO 13849-2 necessary	Yes
safety device type according to IEC 61508-2	Type A
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
