Siemens 3RF2900-0EA18
Converter control voltage 24 V AC/DC for semiconductor relay / contactor
- MPN
- 3RF2900-0EA18
- Category
- SIRIUS 3RF29 function modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

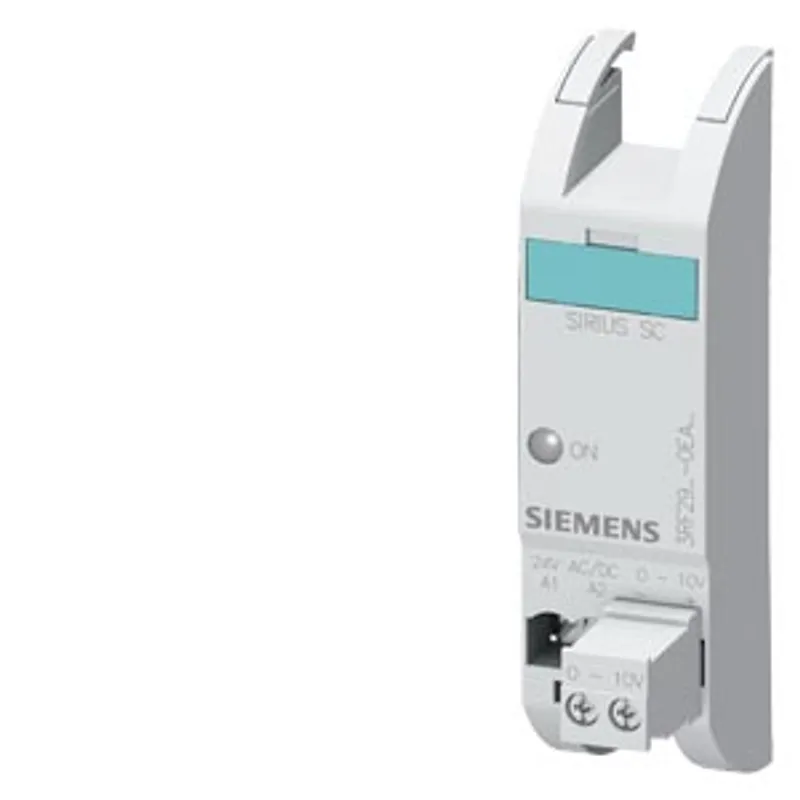

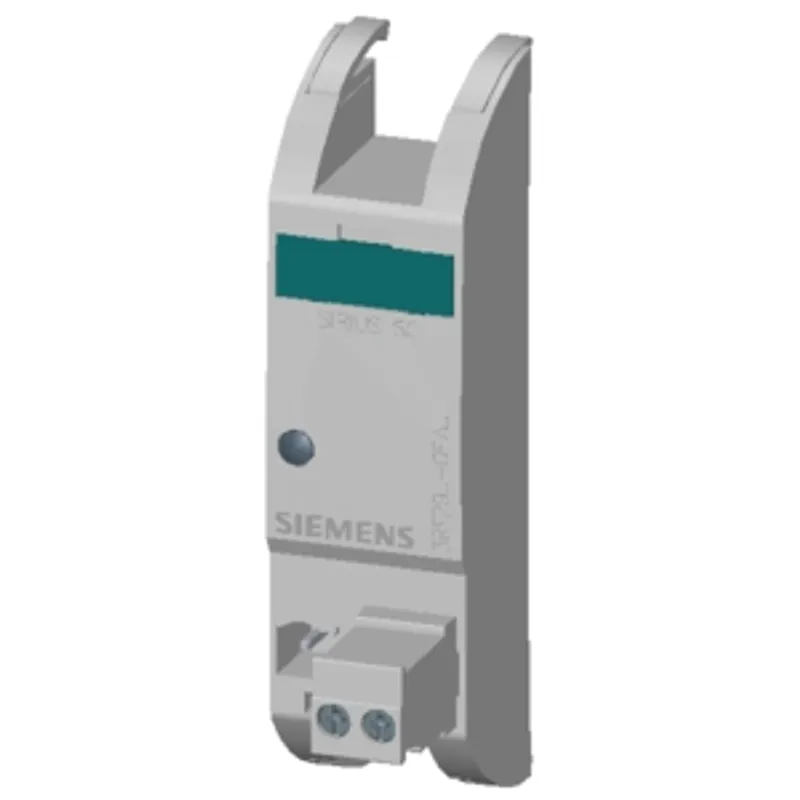

What is the Siemens 3RF2900-0EA18?
converter control voltage 24 V AC/DC for semiconductor relay / contactor
Specifications
General
| product brand name | SIRIUS |
| product designation | converter |
| product type designation | 3RF29 |
General technical data
| product function | solid-state relay / solid-state contactor 3RF2 |
| degree of pollution | 3 |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| reference code according to IEC 81346-2 | T |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.033 kg |
Main circuit
| number of poles for main current circuit | 0 |
| number of NO contacts for main contacts | 0 |
| number of NC contacts for main contacts | 0 |
| operating frequency rated value | 50 ... 60 Hz |
| relative symmetrical tolerance of the operating frequency | 10 % |
| derating temperature | 40 °C |

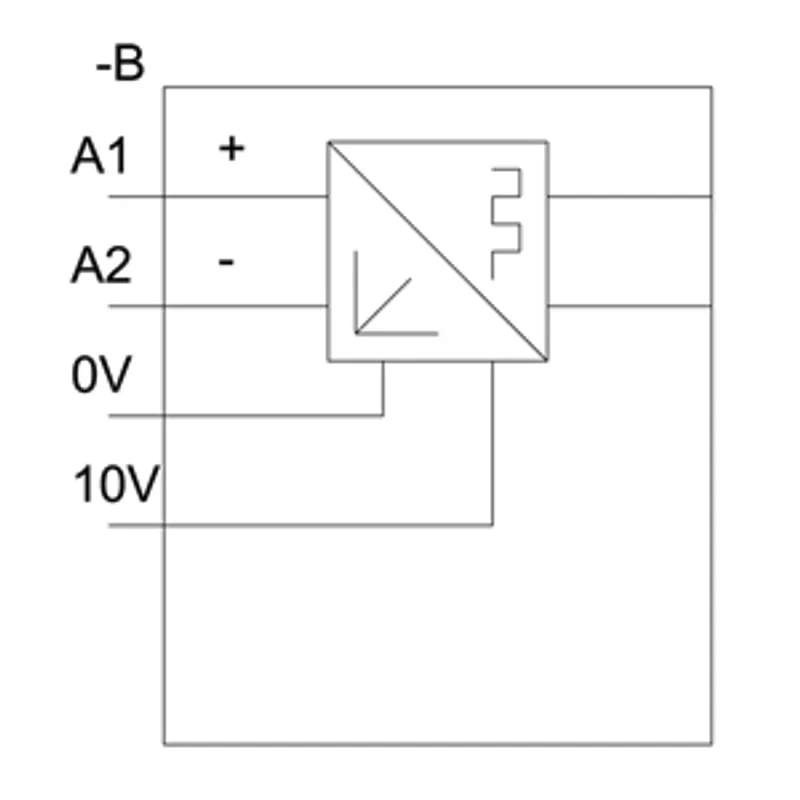

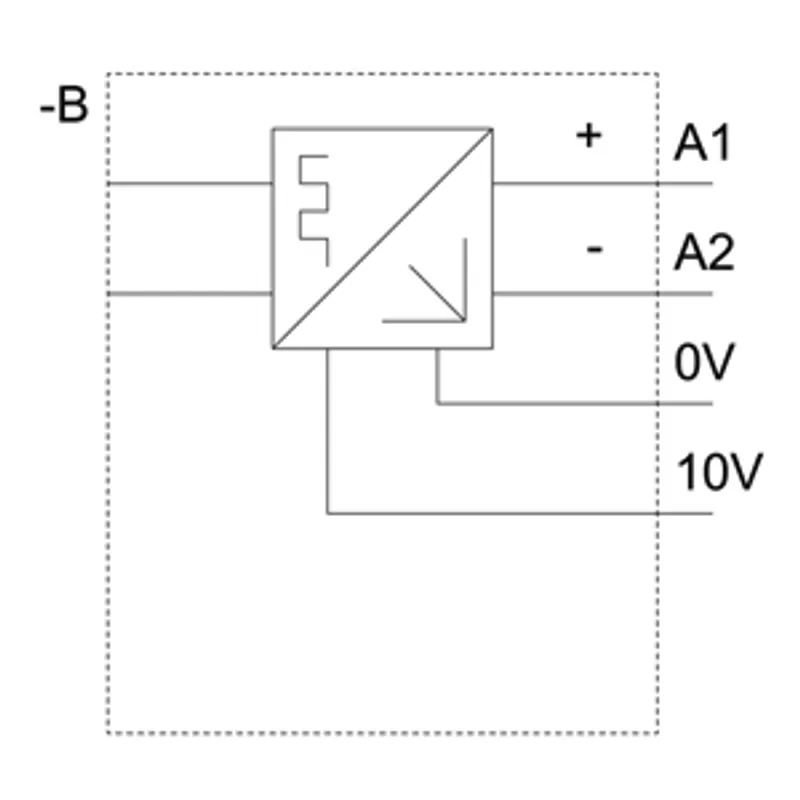

Control circuit/ Control
| type of voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 20.5 ... 26.5 V |
| control supply voltage at AC — at 60 Hz rated value | 20.5 ... 26.5 V |
| control supply voltage at DC rated value | 18 ... 30 V |
| supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz |
| symmetrical line frequency tolerance | 5 Hz |
| control current at AC rated value | 25 mA |
| control current at DC rated value | 25 mA |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |

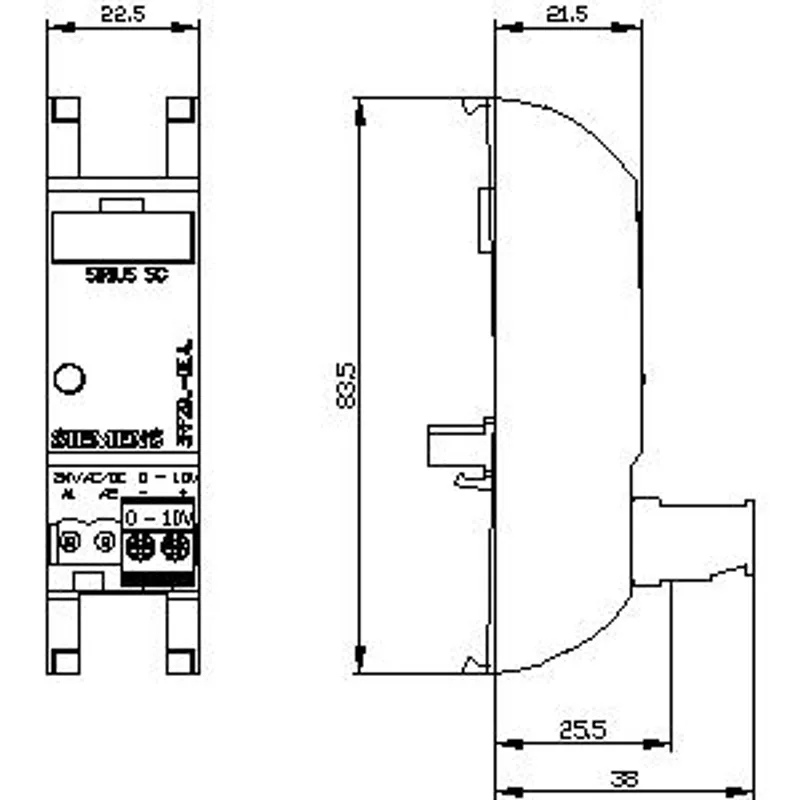

Installation/ mounting/ dimensions
| fastening method side-by-side mounting | Yes |
| fastening method | clip-on |
| height | 83.5 mm |
| width | 22.5 mm |
| depth | 38 mm |
Connections/ Terminals
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — for auxiliary and control contacts — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for auxiliary and control contacts — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary and control contacts | 1x (20 ... 12) |
| tightening torque for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| design of the thread of the connection screw of the auxiliary and control contacts | M3 |
| stripped length of the cable for auxiliary and control contacts | 7 mm |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Ambient conditions
| installation altitude at height above sea level maximum | 1 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -55 ... +80 °C |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz, behavior criterion 2 |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV, behavior criterion 2 |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV, behavior criterion 2 |
| conducted interference — due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
