SIRIUS 3RF29 function modules Parts
Compare SIRIUS 3RF29 function modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | reference code according to IEC 81346-2 | Net Weight | teach range current initial value | height |
|---|---|---|---|---|---|
| 3RF2990-0KA16 | power controller | K | 0.142 kg | 2.9 A | 111.5 mm |
| 3RF2990-0KA13 | power controller | K | 0.142 kg | 2.9 A | 111.5 mm |
| 3RF2990-0HA16 | power regulator | K | 0.146 kg | 18 A | 111.5 mm |
| 3RF2950-0HA16 | power regulator | K | 0.142 kg | 10 A | 111.5 mm |
| 3RF2950-0HA13 | power regulator | K | 0.141 kg | 10 A | 111.5 mm |
| 3RF2950-0GA16 | extended load monitoring | B | 0.14 kg | 1.62 A | 111.5 mm |

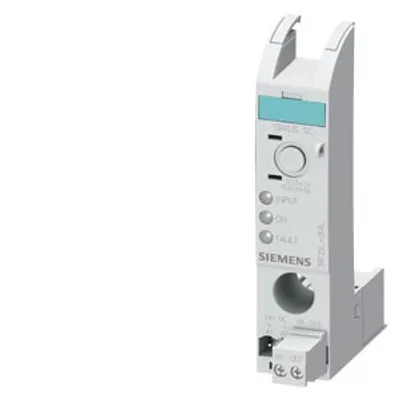

| 3RF2920-0FA08-0KH0 | load monitoring, basis | B | 0.055 kg | 0.65 A | 101.5 mm |
| 3RF2920-0FA08 | load monitoring, basis | B | 55.58 g | 0.65 A | 101.5 mm |

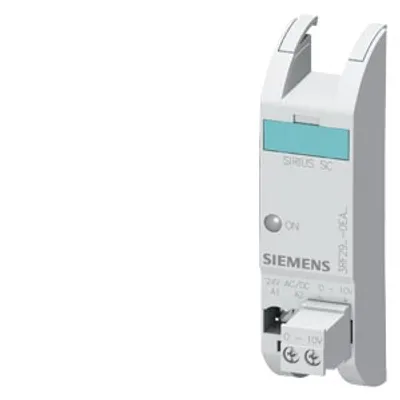

| 3RF2900-0EA18 | converter | T | 0.033 kg | — | 83.5 mm |
| 3RF2950-0KA16 | power controller | K | 0.145 kg | 1.6 A | 111.5 mm |

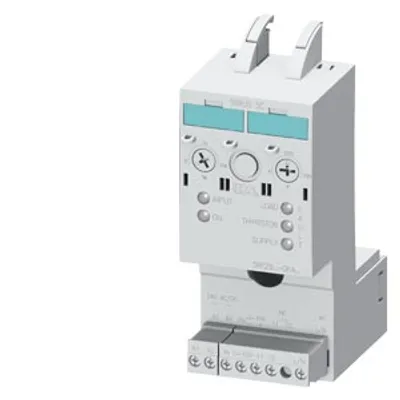

| 3RF2950-0KA13 | power controller | K | 0.147 kg | 1.6 A | 111.5 mm |
| 3RF2920-0HA13 | power regulator | K | 0.142 kg | 4 A | 111.5 mm |
| 3RF2920-0GA16 | extended load monitoring | B | 156.03 g | 0.56 A | 111.5 mm |

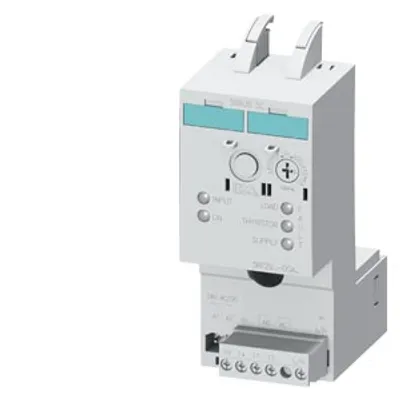

| 3RF2920-0GA13 | extended load monitoring | B | 155.2 g | 0.56 A | 111.5 mm |
Common to all listed parts
| product type designation | 3RF29 |
| degree of pollution | 3 |
| protection class IP | IP20 |
| protection class IP on the front according to IEC 60529 | IP20 |
| shock resistance according to IEC 60068-2-27 | 15 g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 2 g |
| number of poles for main current circuit | 0 |
| number of NO contacts for main contacts | 0 |
