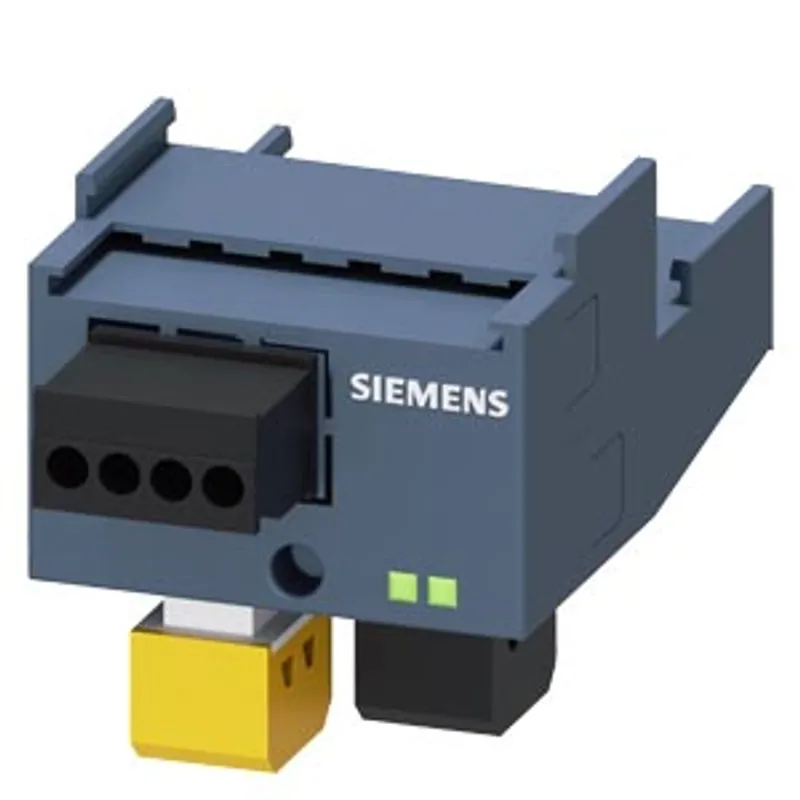

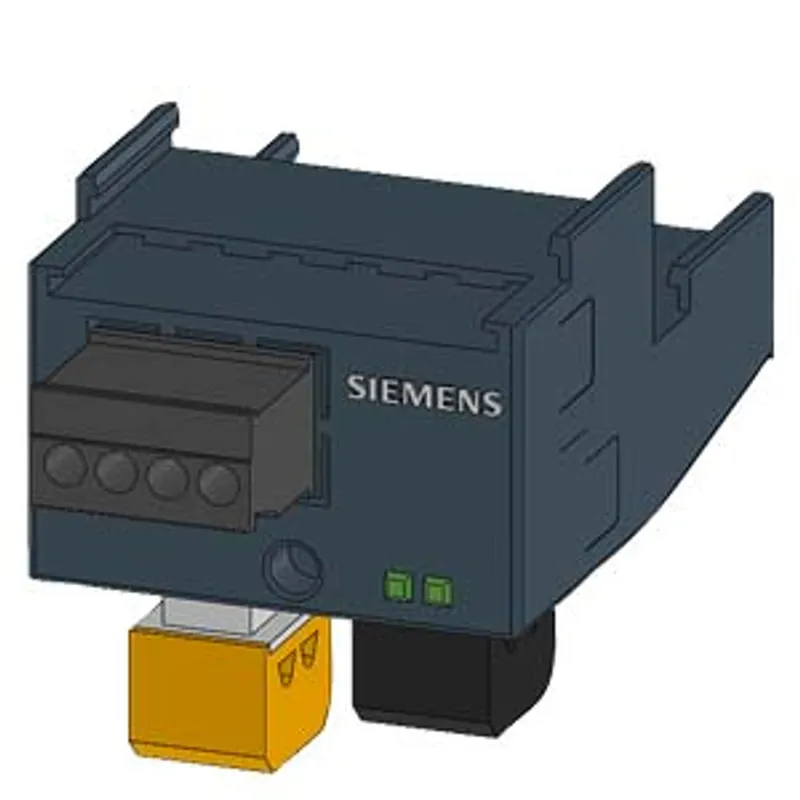

Siemens 3RA6970-3D
AS-i add-on module with 1 free external input and output each
- MPN
- 3RA6970-3D
- Category
- Add-on modules for AS-Interface
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RA6970-3D?
AS-i add-on module with 1 free external input and output each
Specifications
General technical data
| product brand name | SIRIUS |
| product designation | AS-i mounting module with one free input and one free output |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | Finger-safe, for vertical contact |
| relative humidity during operation | 10 ... 90 % |
| ambient temperature — during transport | -25 ... +70 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during operation | -20 ... +60 °C |
| reference code according to EN 61346-2 | K |

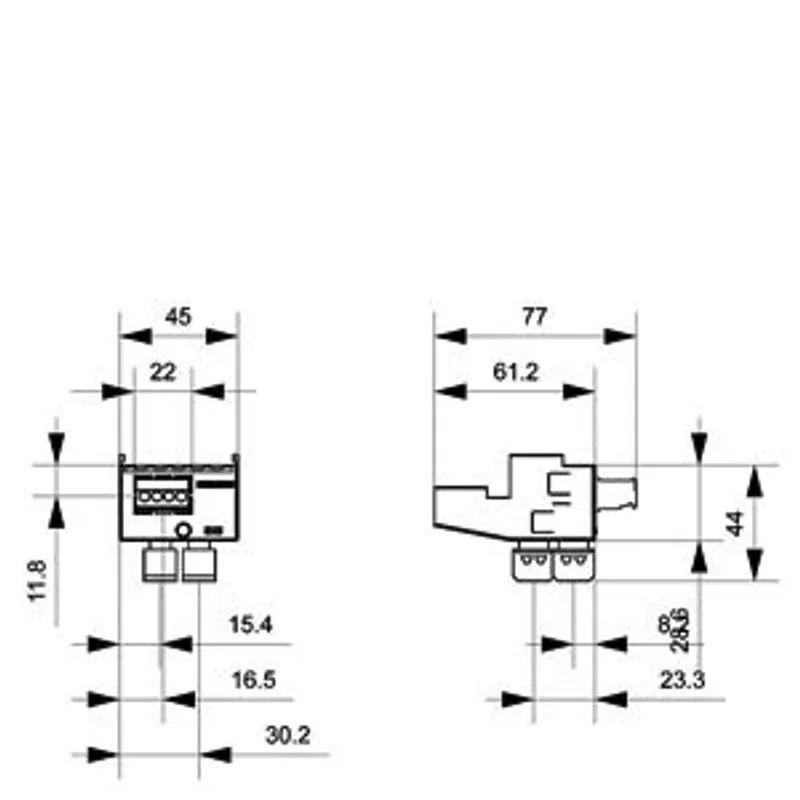

Installation/ mounting/ dimensions
| width | 45 mm |
| height | 50 mm |
| depth | 78 mm |
Connections/ Terminals
| stripped length | 7 mm |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| tightening torque for auxiliary contacts with screw-type terminals | 0.5 ... 0.6 N·m |
Certificates/ approvals
| certificate of suitability | IEC / EN 60947-6-2 |
