Siemens 3RA6970-3C
AS-i add-on module with 2 free external inputs
- MPN
- 3RA6970-3C
- Category
- Add-on modules for AS-Interface
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RA6970-3C?
AS-i add-on module with 2 free external inputs
Specifications
General technical data
| product brand name | SIRIUS |
| product designation | AS-i mounting module with two free inputs |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | Finger-safe, for vertical contact |
| relative humidity during operation | 10 ... 90 % |
| ambient temperature — during transport | -25 ... +70 °C |
| ambient temperature — during storage | -25 ... +80 °C |
| ambient temperature — during operation | -20 ... +60 °C |
| reference code according to EN 61346-2 | K |

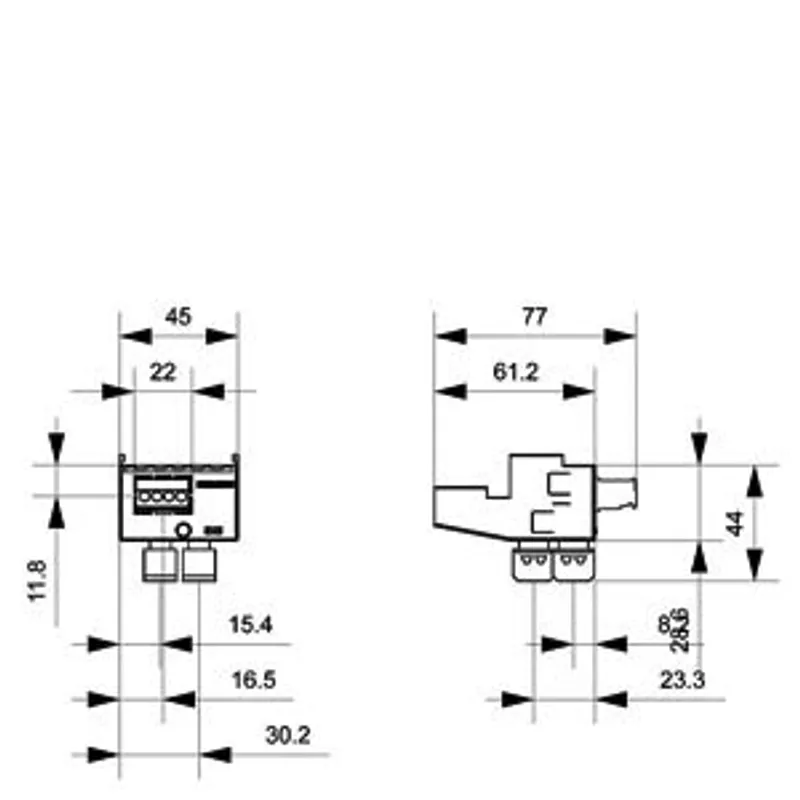

Installation/ mounting/ dimensions
| width | 45 mm |
| height | 50 mm |
| depth | 78 mm |
Connections/ Terminals
| stripped length | 7 mm |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| tightening torque for auxiliary contacts with screw-type terminals | 0.5 ... 0.6 N·m |
Certificates/ approvals
| certificate of suitability | IEC / EN 60947-6-2 |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RA6970-3C: frequently asked questions
When can 3RA6970-3C be shipped?
3RA6970-3C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RA6970-3C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RA6970-3C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RA6970-3C, subject to availability and destination.
