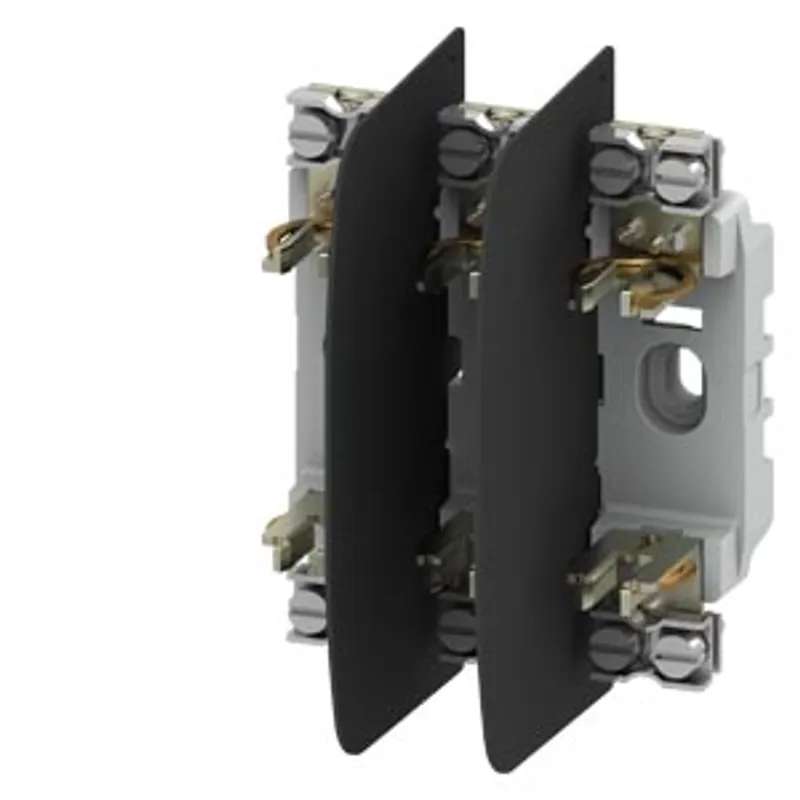

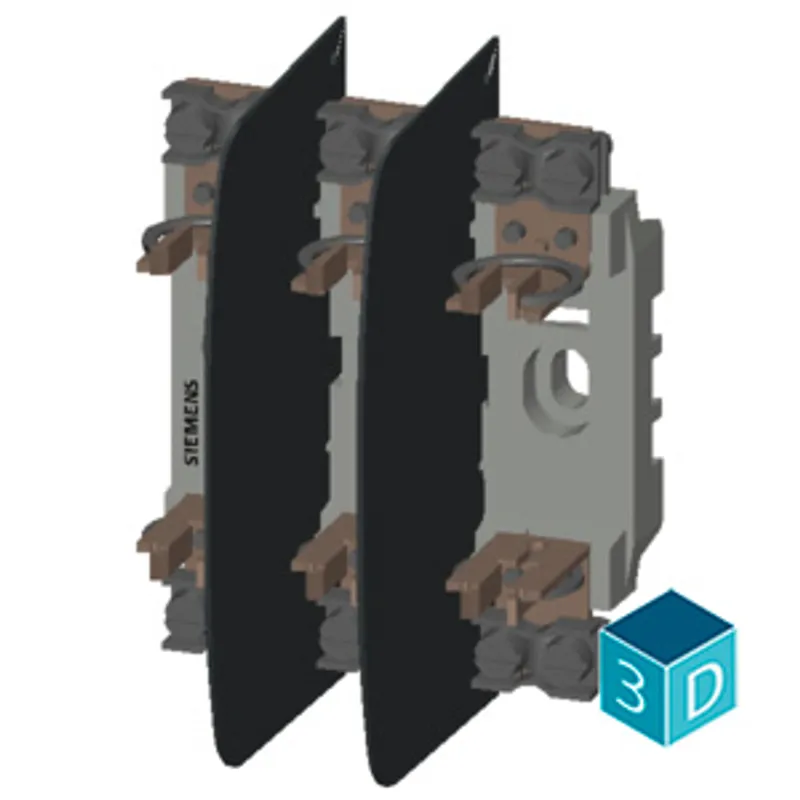

Siemens 3NH2032

HRC fuse base plastic Sz. 00 3-pole 160A 690V clamp connection 6 x 70 mm2

MPN: 3NH2032

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NH2032?

HRC fuse base plastic Sz. 00 3-pole 160A 690V clamp connection 6 x 70 mm2

Specifications

Model

product brand name	SENTRON
product designation	LV HRC fuse base
design of the thread of the nut	M6
design of the thread of the connection screw	M6

General technical data

number of poles	3
size of fuse system according to EN 60269-1	NH00
utilization category	Without

Supply voltage

supply voltage — at AC	690 V
supply voltage — at DC	690 V

Product details

product component swivel-in mechanism	No
maximum short-circuit current breaking capacity (Icu) — at AC rated value	120 kA
maximum short-circuit current breaking capacity (Icu) — at DC rated value	120 kA

Connections

connectable conductor cross-section on saddle-type connector — minimum	6 mm²
connectable conductor cross-section on saddle-type connector — maximum	70 mm²
tightening torque of the screw for securing the equipment maximum	3 N·m
tightening torque with screw-type terminals maximum	4 N·m
type of electrical connection	saddle-type connector
type of electrical connection — for main current circuit	Saddle-type terminal

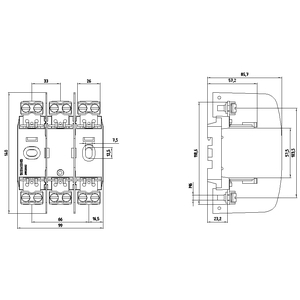

Mechanical Design

height	140 mm
width	99 mm
depth	86 mm
fastening method	fixed mounting
fastening method bus-mounting	No
Net Weight	439 g
