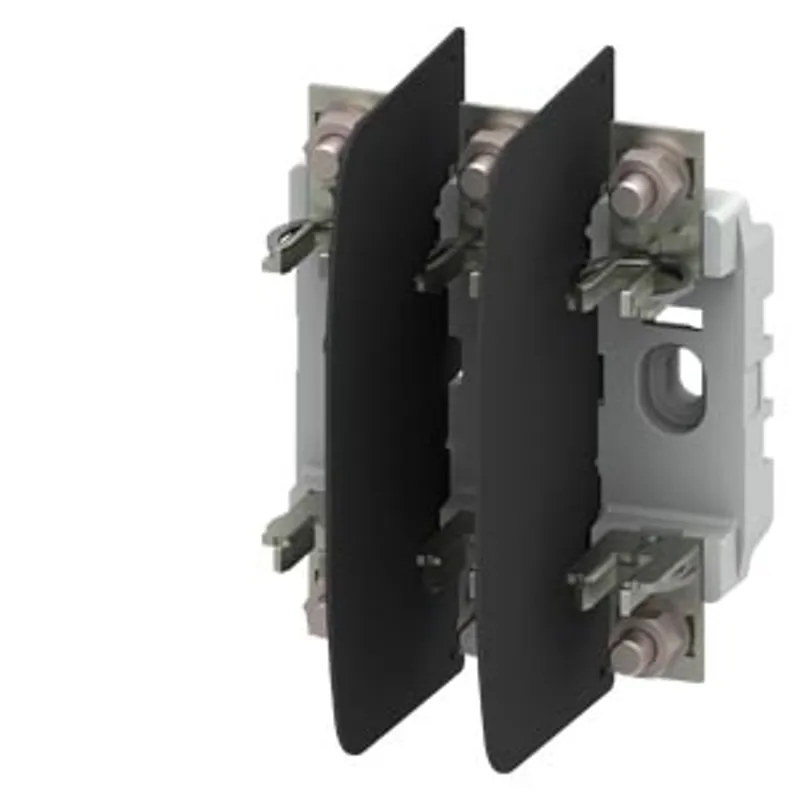

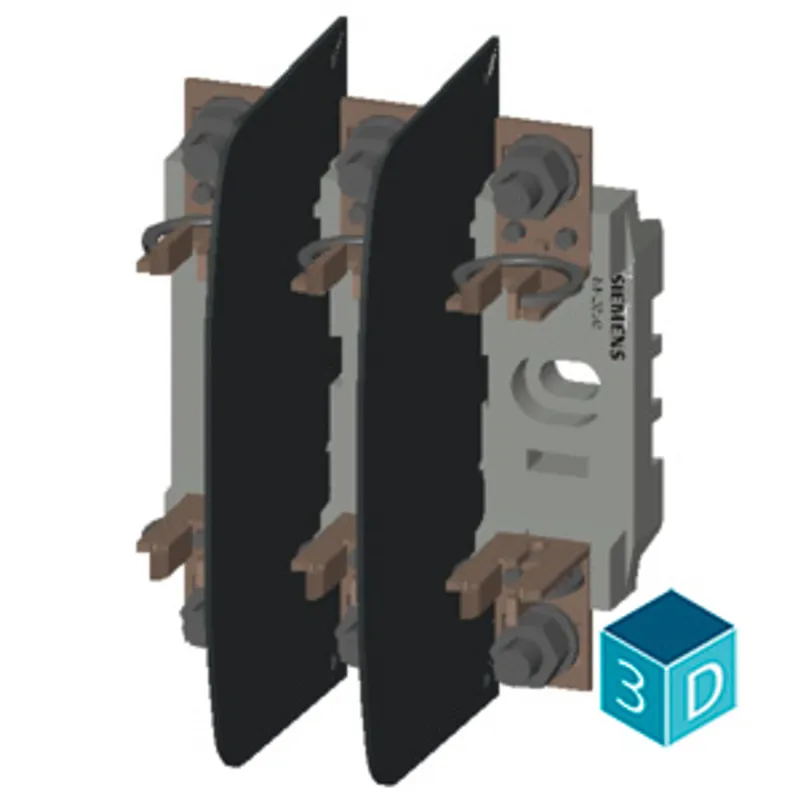

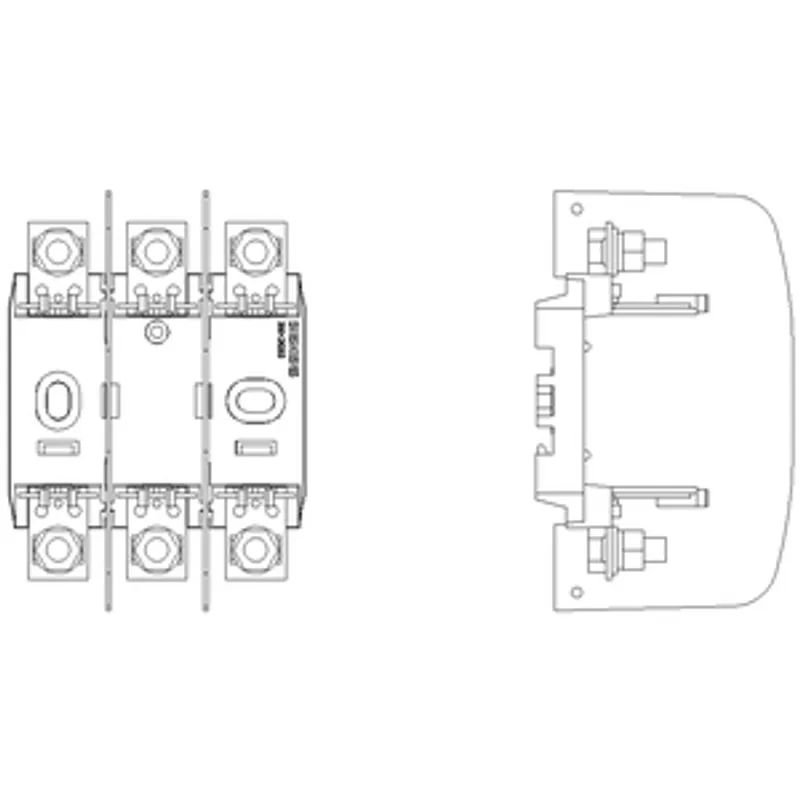

Siemens 3NH2030
HRC fuse base plastic Sz. 00 3-pole 160A 690V flat terminal
- MPN
- 3NH2030
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NH2030?
HRC fuse base plastic Sz. 00 3-pole 160A 690V flat terminal
Specifications
Model
| product brand name | SENTRON |
| product designation | LV HRC fuse base |
| design of the thread of the nut | M8 |
| design of the thread of the connection screw | M8 |
General technical data
| number of poles | 3 |
| size of fuse system according to EN 60269-1 | NH00 |
| utilization category | Without |
Supply voltage
| supply voltage — at AC | 690 V |
| supply voltage — at DC | 690 V |
Product details
| product component swivel-in mechanism | No |
| maximum short-circuit current breaking capacity (Icu) — at AC rated value | 120 kA |
| maximum short-circuit current breaking capacity (Icu) — at DC rated value | 120 kA |
Connections
| connectable conductor cross-section on terminal strip — minimum | 6 mm² |
| connectable conductor cross-section on terminal strip — maximum | 95 mm² |
| tightening torque of the screw for securing the equipment maximum | 3 N·m |
| tightening torque with screw-type terminals maximum | 10 N·m |
| type of electrical connection | With flat-type terminal |
| type of electrical connection — for main current circuit | with flat-type terminal |
Mechanical Design
| height | 140 mm |
| width | 99 mm |
| depth | 86 mm |
| fastening method | fixed mounting |
| fastening method bus-mounting | No |
| Net Weight | 401 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3NH2030: frequently asked questions
When can 3NH2030 be shipped?
3NH2030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3NH2030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3NH2030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3NH2030, subject to availability and destination.
