Siemens

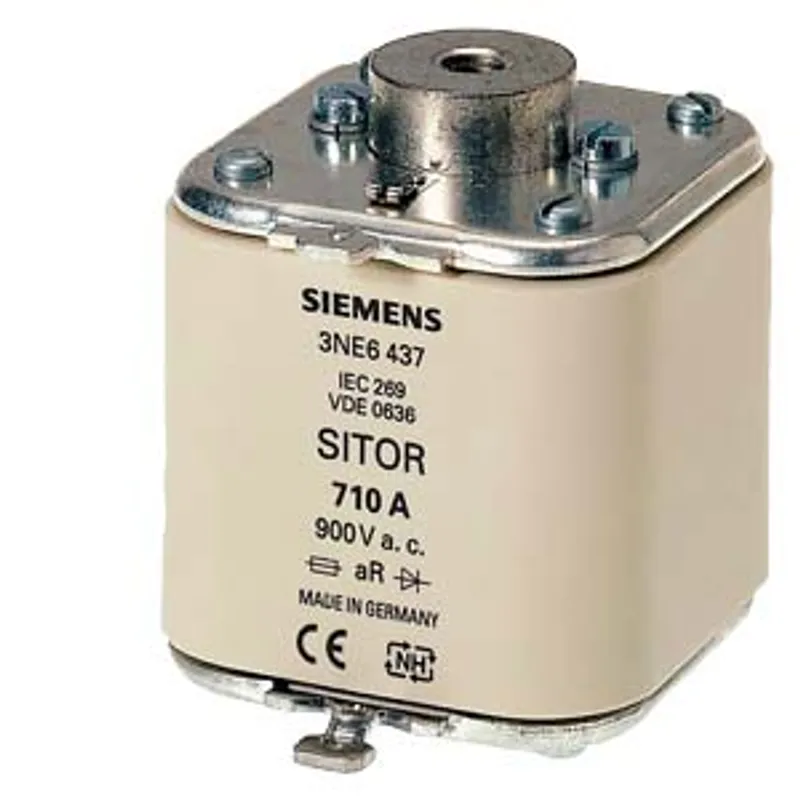

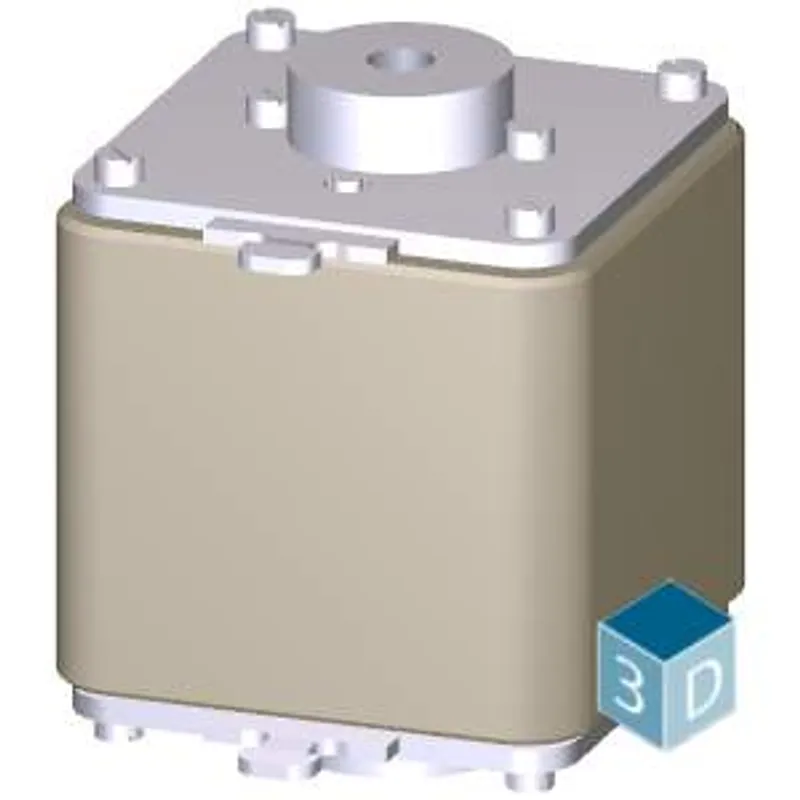

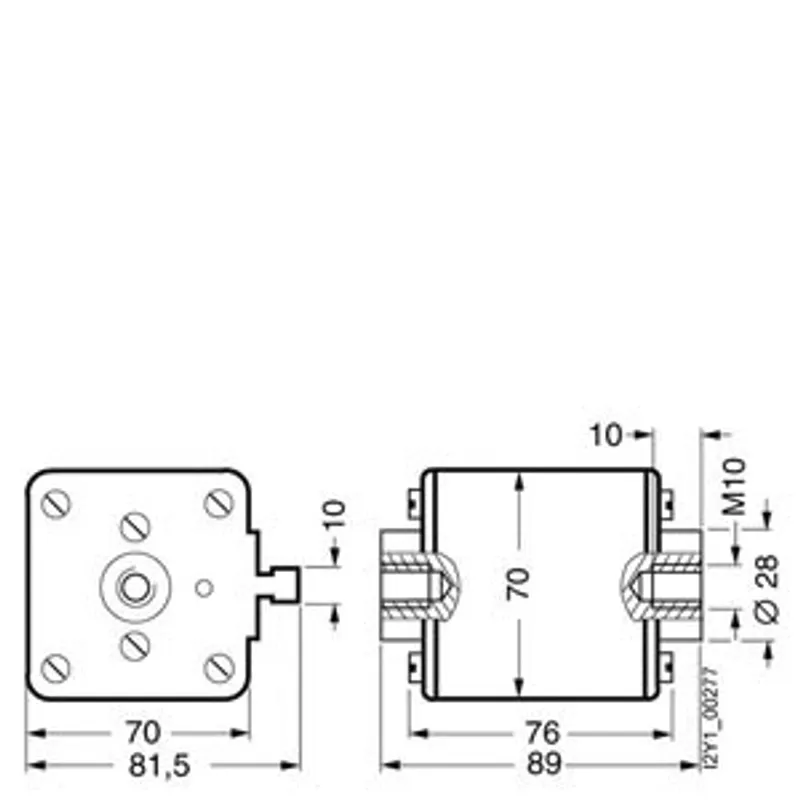

Siemens 3NE6437

SITOR fuse link, with female thread on both sides, In: 710 A, gR, Un AC: 900 V, front indicator

MPN: 3NE6437
Category: LV HRC Design

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NE6437?

SITOR fuse link, with female thread on both sides, In: 710 A, gR, Un AC: 900 V, front indicator

Specifications

Model

product brand name	SENTRON
product designation	SITOR fuse link
design of the product	With female thread on both sides
design of an identification indicator	front indicator
design of the switching contact	special terminals
design of the fuse link	Fuses for special applications

General technical data

size of fuse system according to EN 60269-1	others
operating class of the fuse link	gR
varying load factor (WL)	0.9
type of voltage of the operating voltage	AC
operating voltage at AC according to UL rated value	900 V

Supply voltage

supply voltage — at AC

900 V

Breaking Capacity

switching capacity current — according to IEC 60947-2 rated value

100 kA

Dissipation

power loss [W]	150 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	150 W
power loss [W] — maximum	150 W

Product details

accessories included

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	1.054 kg

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3NE6437PDF

3NE6437: frequently asked questions

When can 3NE6437 be shipped?

3NE6437 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3NE6437 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3NE6437 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3NE6437, subject to availability and destination.
