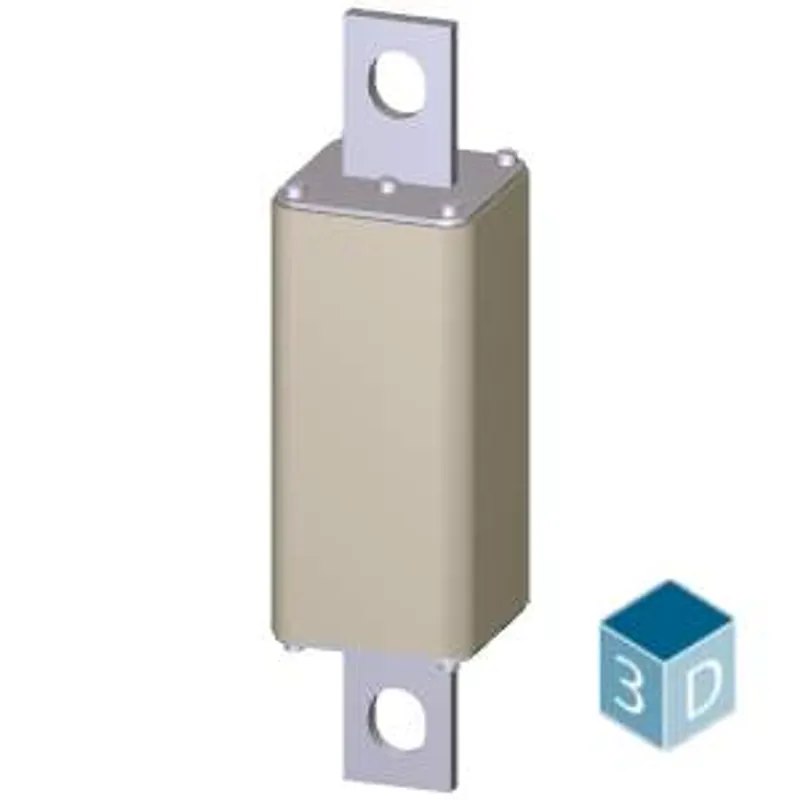

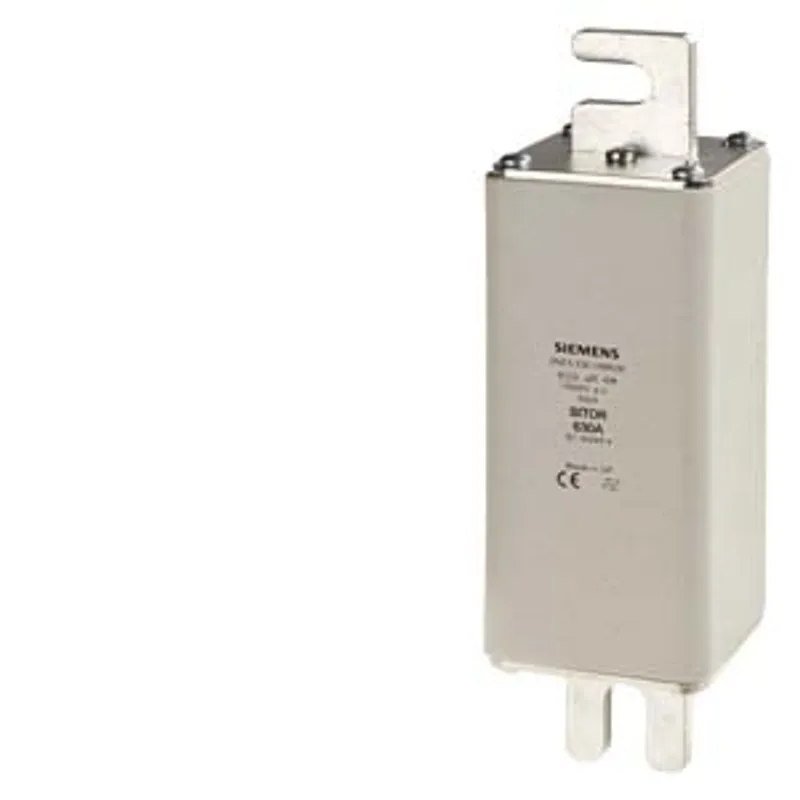

Siemens 3NE5336-0MK66

SITOR fuse link, with slotted blade contacts, NH2, In: 630 A, aR, Un AC: 1500 V, Un DC: 1000 V

MPN: 3NE5336-0MK66
Category: LV HRC Design

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NE5336-0MK66?

SITOR fuse link, with slotted blade contacts, NH2, In: 630 A, aR, Un AC: 1500 V, Un DC: 1000 V, without Indicator

Specifications

Model

product brand name	SENTRON
product designation	SITOR fuse link
design of the product	With slotted blade contacts
design of an identification indicator	Without indicator
design of the switching contact	with slotted knife blade contacts for screw mounting. mounting dimensions: 190 mm
design of the fuse link	SITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1	NH2
operating class of the fuse link	aR
type of voltage of the operating voltage	AC/DC

Supply voltage

supply voltage — at AC	1 500 V
supply voltage — at DC	1 000 V

Breaking Capacity

switching capacity current — at DC according to IEC 60947-2 rated value	45 kA
switching capacity current — according to IEC 60947-2 rated value	30 kA

Dissipation

power loss [W]	163 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	163 W
power loss [W] — maximum	163 W

Product details

product description	with bolt-on links, silver-plated
accessories included	no

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	1.43 kg

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity
