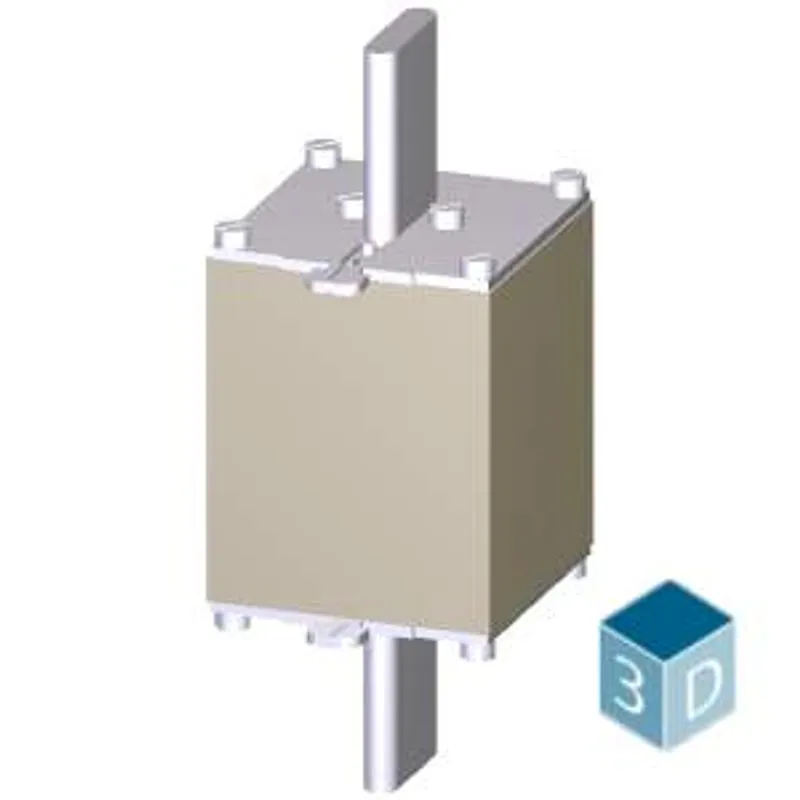

Siemens 3NE1222-4

PV fuse link, with blade contacts, NH1, In: 125 A, gPV, Un DC: 1000 V, front indicator

MPN: 3NE1222-4
Category: PV Cumulative Fuses

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3NE1222-4?

PV fuse link, with blade contacts, NH1, In: 125 A, gPV, Un DC: 1000 V, front indicator

Specifications

Model

product brand name	SENTRON
product designation	PV fuse link
design of the product	with blade contacts without slots
design of an identification indicator	front indicator
design of the switching contact	with blade contacts
design of the fuse link	Photovoltaic fuse, LV HRC design

General technical data

size of fuse system according to EN 60269-1	NH1
operating class of the fuse link	gPV
varying load factor (WL)	1
type of voltage of the operating voltage	DC

Supply voltage

supply voltage — at DC

1 000 V

Breaking Capacity

switching capacity current — at DC according to IEC 60947-2 rated value

30 kA

Dissipation

power loss [W]	26 W
power loss [W] — for rated value of the current at AC in hot operating state per pole	26 W
power loss [W] — maximum	26 W

Product details

product description	non-corroding, silver-plated
accessories included	no

Mechanical Design

mounting position	Any, preferably vertical
Net Weight	606 g

Environmental conditions

ambient temperature during operation — minimum	-20 °C
ambient temperature during operation — maximum	50 °C
environmental category	-20 to +50 at 95% relative humidity

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3NE1222-4PDF
