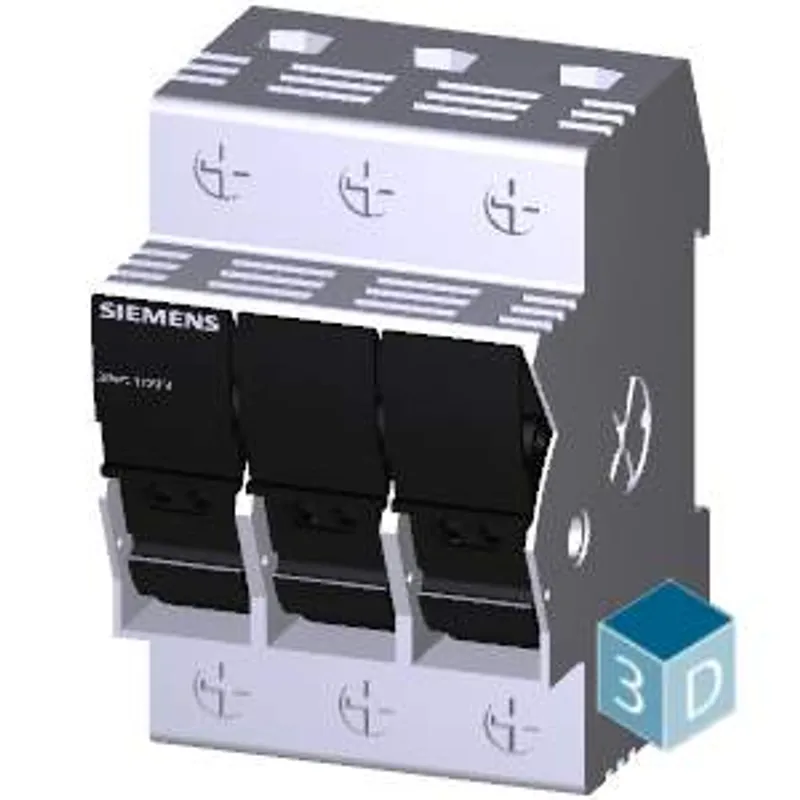

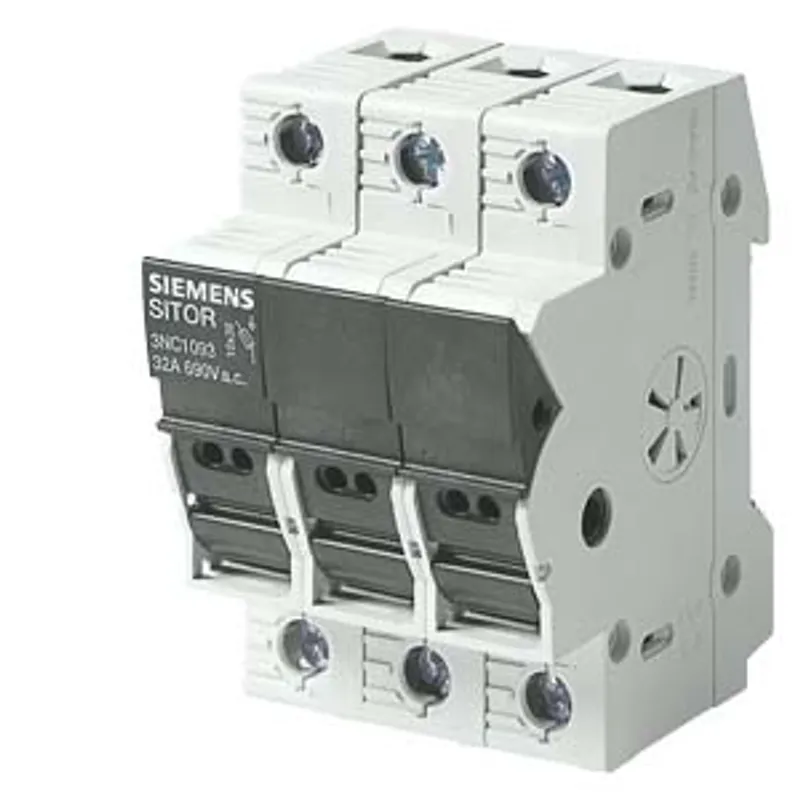

Siemens 3NC1093
SITOR fuse switch 10x 38, Up to 32 A, 690 V AC, 3-pole
- MPN
- 3NC1093
- Category
- Cylindrical Fuse Design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NC1093?
SITOR fuse switch 10x 38, Up to 32 A, 690 V AC, 3-pole
Specifications
Model
| product brand name | SENTRON |
| product designation | SITOR fuse switch disconnector |
| design of the actuating element | swivel knob |
General technical data

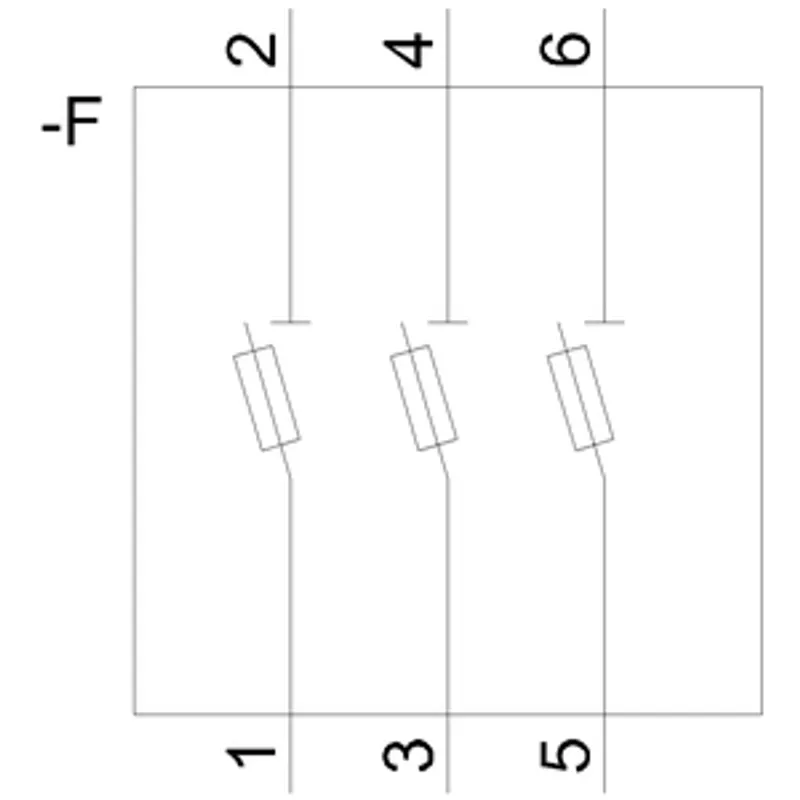

| number of poles | 3 |
| size of fuse link | 10x38 |
| utilization category | According to IEC 60947-3; AC 22B/32 A/400 V; AC22B/10 A/690 V |
| size of the fuse link | 10 x 38 mm |
| operating voltage — at AC rated value maximum | 690 V |
| operating voltage — at DC rated value maximum | 800 V |
Protection class
| protection class IP on the front | IP20 |
Main circuit
| operational current rated value | 32 A |
Suitability
| suitability for use main switch | No |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | No |
Product function
| product function fuse monitoring | No |
Short circuit
| conditional short-circuit current (Iq) rated value | 50 kA |
Connections
| connectable conductor cross-section solid — minimum | 1.5 mm² |
| connectable conductor cross-section solid — maximum | 25 mm² |
| type of electrical connection for main current circuit | screw-type terminals |

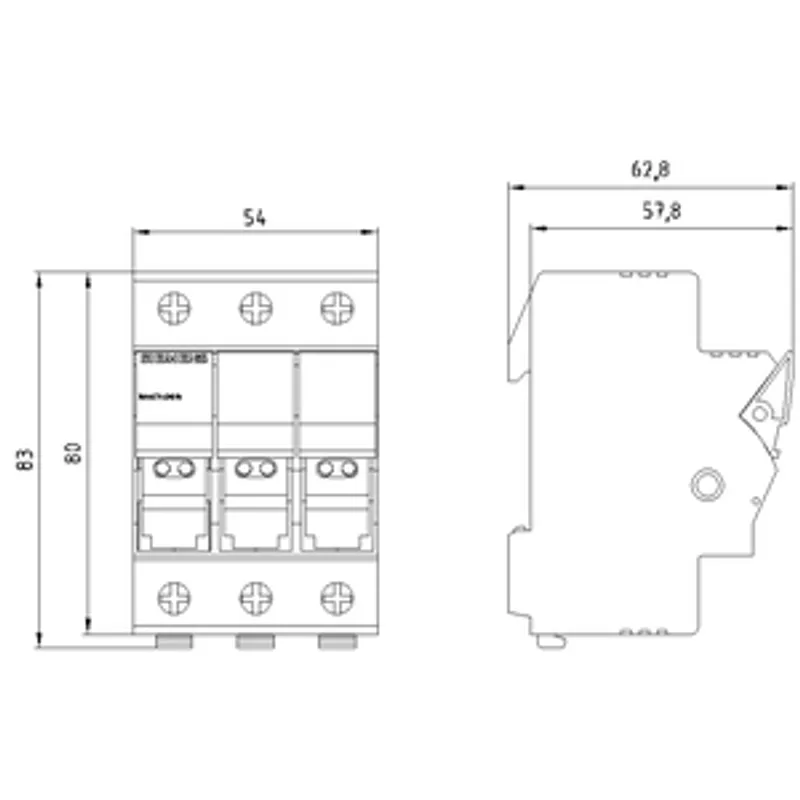

Mechanical Design
| height | 80 mm |
| depth | 58 mm |
| fastening method — floor mounting | No |
| fastening method — rail mounting | No |
| Net Weight | 155 g |
