Siemens 3LD9344-3CA

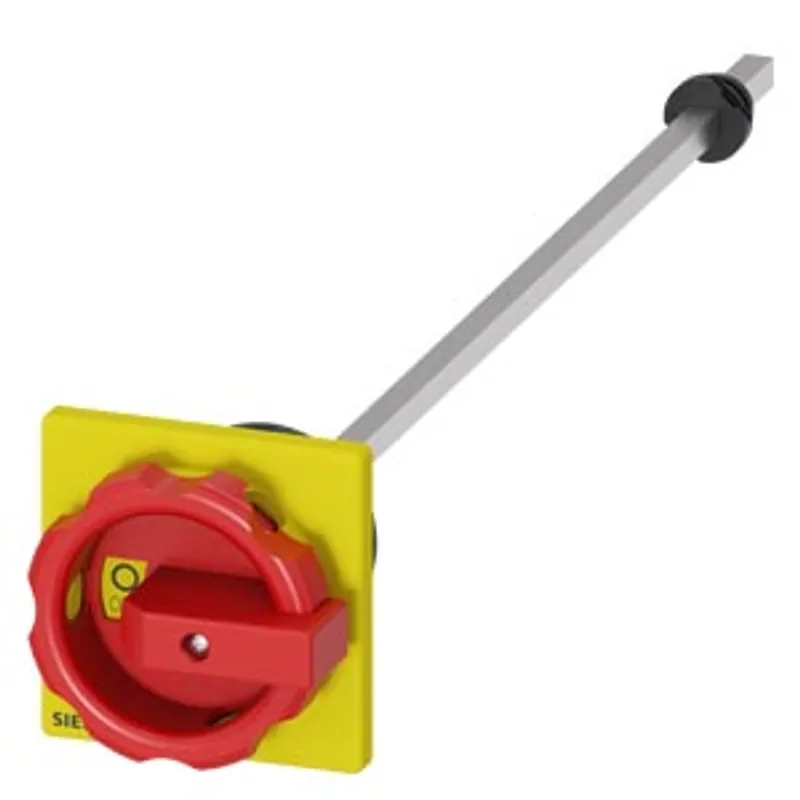

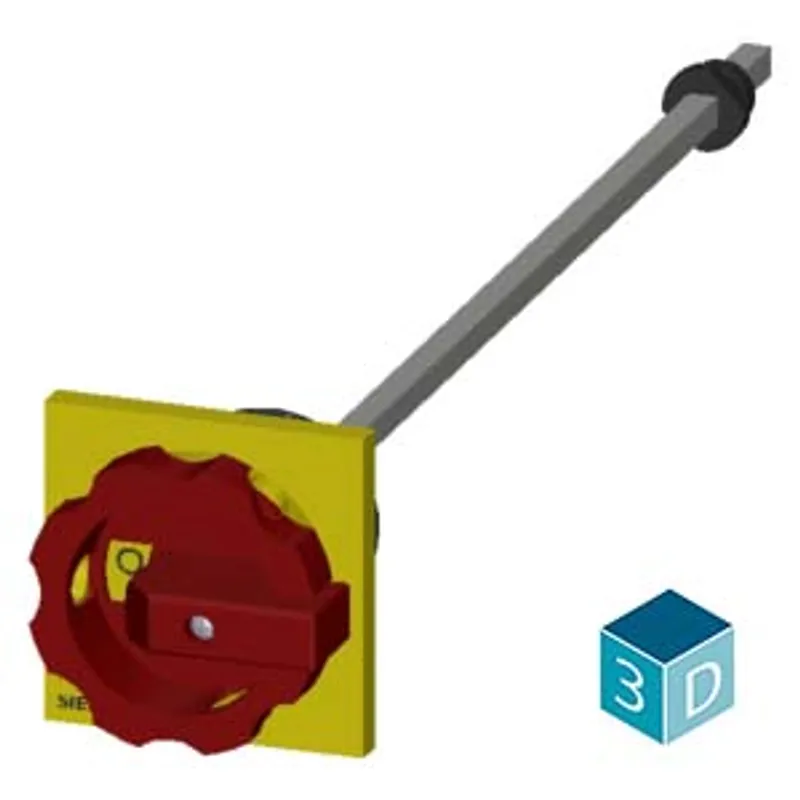

Door-coupling rotary operating mechanism red / yellow 66x66 mm

MPN: 3LD9344-3CA
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3LD9344-3CA?

Door-coupling rotary operating mechanism red / yellow 66x66 mm, Front plate mounting Central hole mounting 22.5mm with coupling part with shaft 300 mm long, 6x6 mm, accessories for load disconnector 3LD3

Specifications

Model

product designation	Door mounted rotary operator
design of the product	accessories for 3LD3 switch disconnectors
degree of protection NEMA rating	1. 3R. 4X. 12
color of the actuating element	red / yellow
product feature interlock	No
product feature can be locked into OFF position	Yes
length of the extension shaft	300 mm
Net Weight	225 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3LD9344-3CAPDF
