Siemens 3LD9344-3C
Rotary operating mechanism
- MPN
- 3LD9344-3C
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3LD9344-3C?

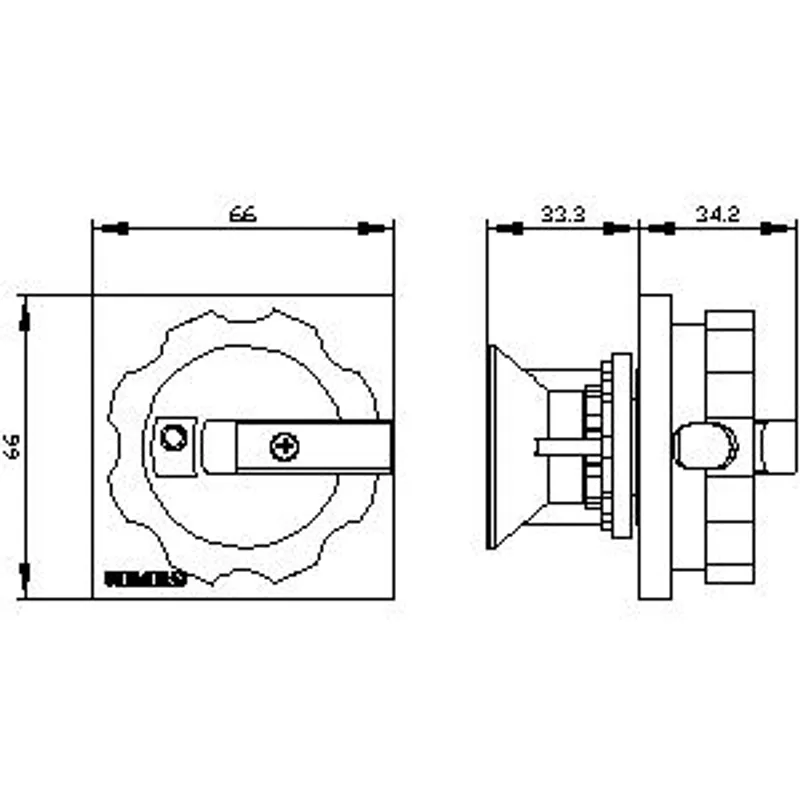

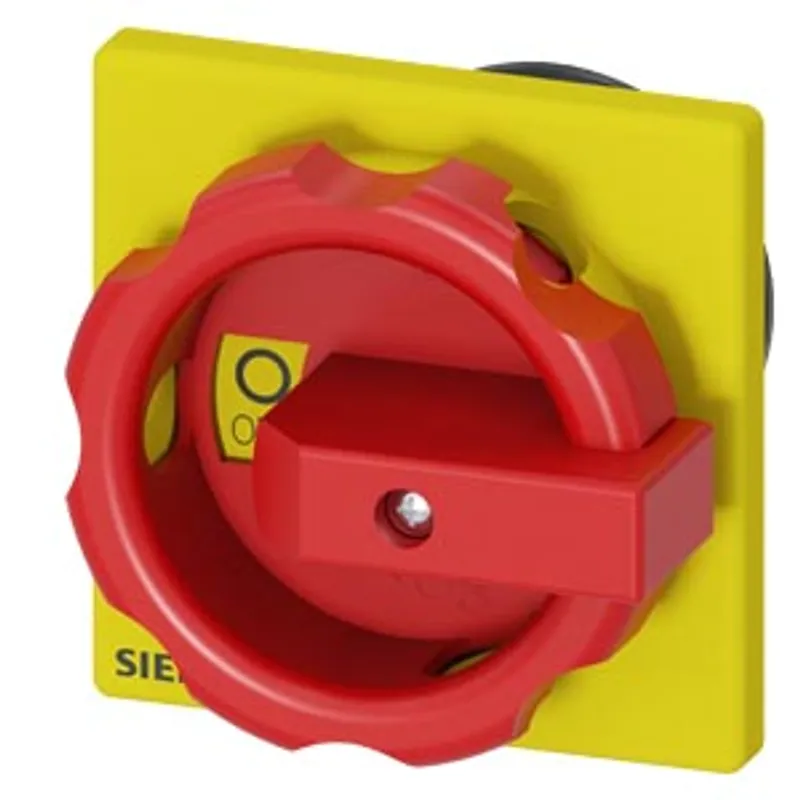

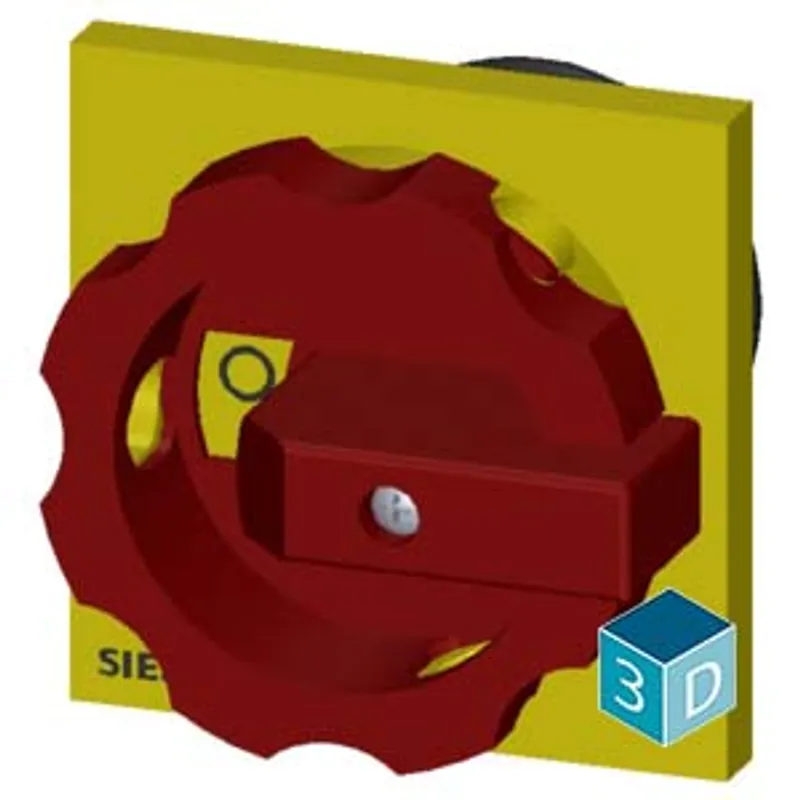

rotary operating mechanism, red / yellow 66x66 mm Front plate mounting Central hole mounting 22.5mm for shaft 6x6 mm, accessory for Load disconnector 3LD3
Specifications
Model
| product brand name | SENTRON |
| product designation | Rotary operators |
| design of the product | accessories for 3LD3 switch disconnectors |
| degree of protection NEMA rating | 1, 3R, 4X, 12 |
| suitability for use switch disconnector | Yes |
| suitability for use circuit breaker | No |
| suitability for use EMERGENCY OFF switch | Yes |
| color | red / yellow |
| color — of the actuating element | red / yellow |
| product feature can be locked in ON position | No |
| Product component with axis | No |
| product component restart inhibit function block | No |
| product component padlock locking mechanism | No |
| product component key lock | No |
| product feature can be locked into OFF position | Yes |
| number of bracket locks maximum | 3 |
| hasp thickness of the bracket locks | 4 ... 8 mm |
| Net Weight | 97 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3LD9344-3C: frequently asked questions
When can 3LD9344-3C be shipped?
3LD9344-3C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3LD9344-3C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3LD9344-3C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3LD9344-3C, subject to availability and destination.
