Wireless and batteryless range, Harmony XB5R, Relay Antenna, AC DC, 5m cable output

Name: Wireless and batteryless range, Harmony XB5R, Relay Antenna, AC DC, 5m cable output
Brand: Schneider Electric
SKU: ZBRA1

MPN: ZBRA1 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Harmony Wireless Push buttons & Ecosystem
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.2 kg

Shipping & availability

When can ZBRA1 be shipped?

ZBRA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZBRA1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZBRA1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZBRA1, subject to availability and destination.

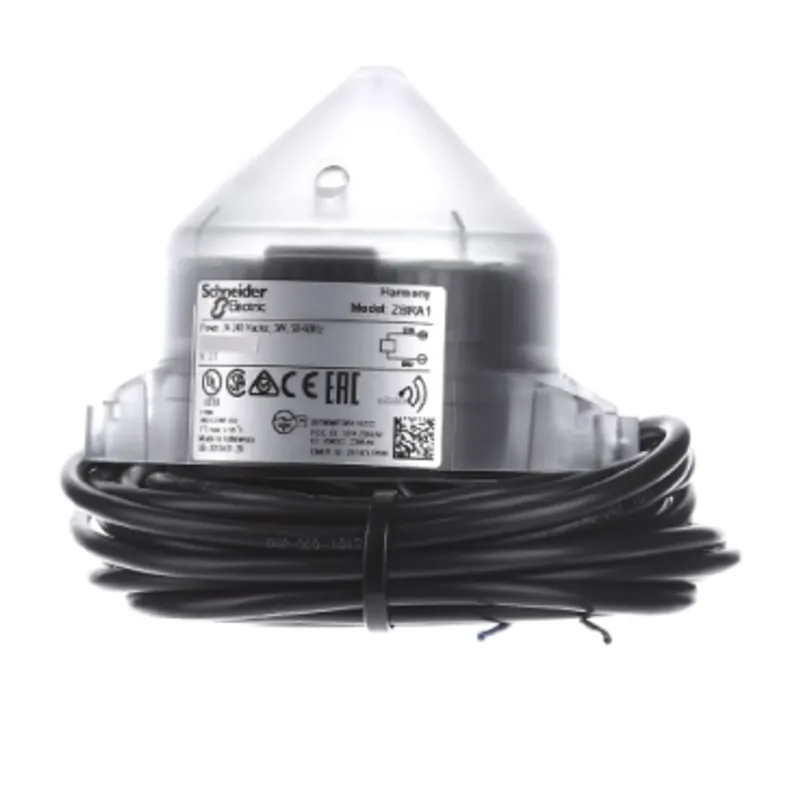

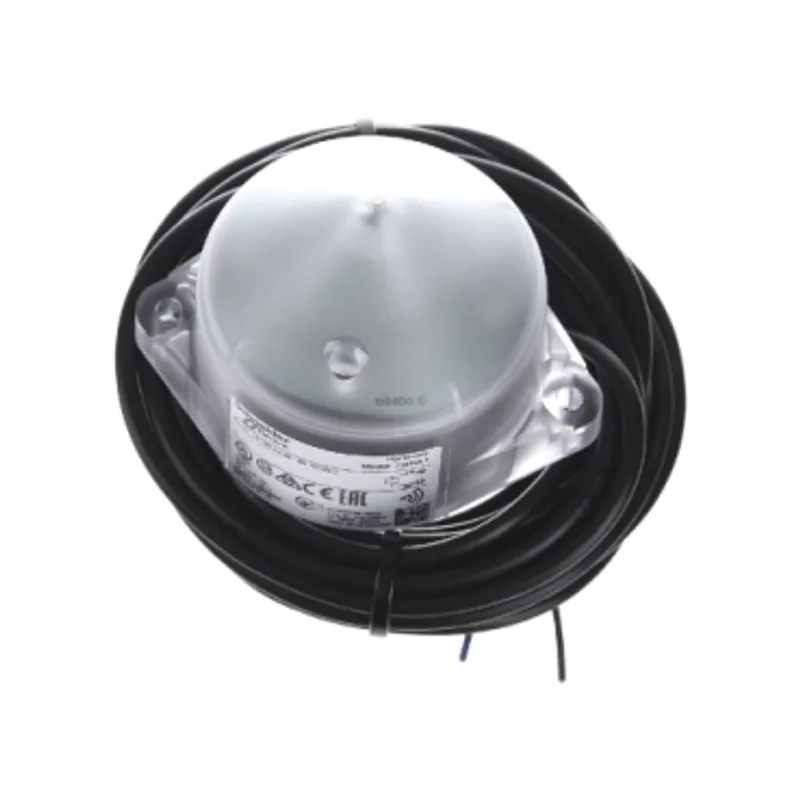

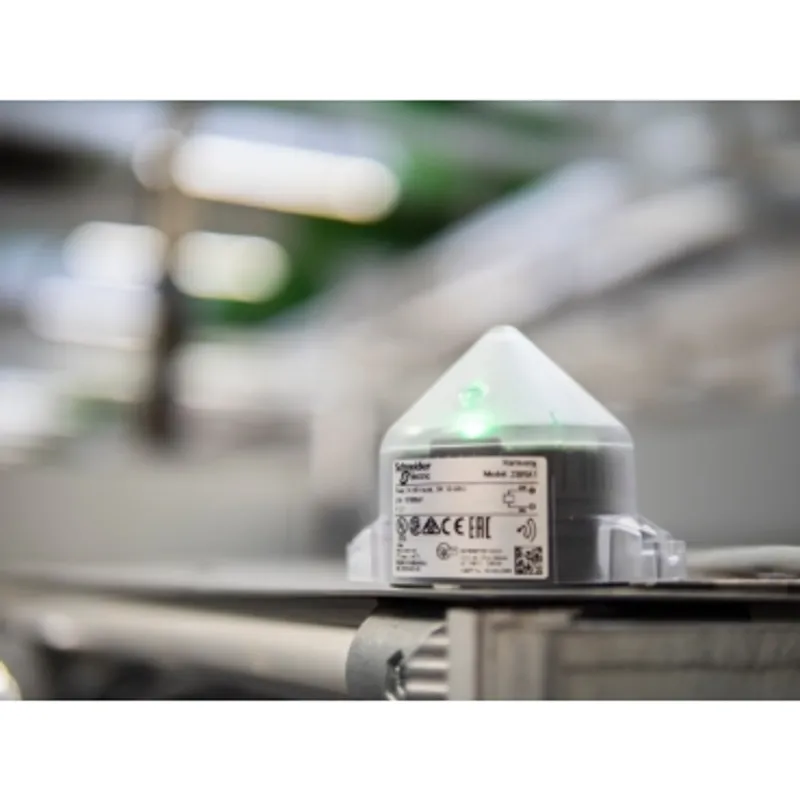

This relay antenna is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. Installed between transmitter and receiver it is used to increase the range and/or get round obstacles. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

Specifications

Range of product	Harmony XB5R
Product or component type	Wireless and batteryless range
Device short name	ZBRA
Product destination	Wireless Schneider Electric ecosystem devices
Control station application	Transceiver (emission and reception)
Colour of base of enclosure	Black (RAL 9011)
Colour of cover	Transparent
Material	Polycarbonate
frequency	2405 MHz for transmitter, 2405 MHz for receiver
emission class	5M00G7W
Antenna type	Omnidirectional
Communication port protocol	Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Antenna gain	0 dBi
Maximum sensing distance	300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Emission power	3 mW
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz - 10...10 %
Maximum power consumption in W	4 W AC/DC
Operating position	Vertical
Status LED	1 LED green for power ON, 1 LED green for emission signal
Overvoltage category	III conforming to IEC 60664-1
Rated short-duration power frequency withstand voltage	4 kV 50 Hz conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage	4 kV
Electrical connection	2 conductors cable 0.34 mm² - flexible - 5 m conforming to IEC 60947-1
Tightening torque	0.6 N.m conforming to IEC 60947-1
Housing material	Polycarbonate
Short-circuit protection	0.4 A fuse type fast blow
Max power consumption in W	1 mW
Number of channels	1
Modulation Technique	O-QPSK
Bandwidth	5 MHz
Net weight	0.2 kg
Ambient air temperature for storage	-40…70 °C
Relative humidity	90 % at -20…55 °C, without condensation conforming to ETSI EN 300 440-1
Electrical shock protection class	Class II conforming to IEC 61140
IP degree of protection	IP65 conforming to IEC 60529 55 °C 0.1 m
Pollution degree	3 conforming to IEC 60664-1
IK degree of protection	IK03 conforming to IEC 62262
Radio agreement	RSS, SRRC, ANATEL, type III conforming to ETSI EN 301 489-3, ARIB T66, class 2 conforming to ETSI EN 301 489-3, FCC, category 2 conforming to ETSI EN 300 440-1, ICASA, category 1 conforming to ETSI EN 300 440-1
Product certifications	CCC, BT 2006/95/EC, UL, GOST, CSA, CE, C-Tick
Directives	1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
Vibration resistance	+/-0.5 mm (f= 10…55 Hz) conforming to IEC 60068-2-6, 6 gn (f= 55…150 Hz) conforming to IEC 60068-2-6
Shock resistance	25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27, 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Insulation resistance	> 500 MOhm at 500 V DC conforming to NF C 20030
[Ui] rated insulation voltage	250 V conforming to IEC 60664-1
Electromagnetic compatibility	Immunity for industrial environments conforming to IEC 61000-6-2, Conducted and radiated emissions class B conforming to CISPR 22, Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 2 kV conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5, Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11, Radiated emission conforming to ETSI EN 300 440-1, Conducted emission conforming to EN 300-489-1, Conducted emission conforming to ETSI EN 300 489-3, Radiated emission conforming to ETSI EN 300 440-2
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.000 cm
Package 1 Width	8.000 cm
Package 1 Length	18.700 cm
Package 1 Weight	267.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.293 kg
Warranty (in months)	18
