Schneider Electric XPEM111

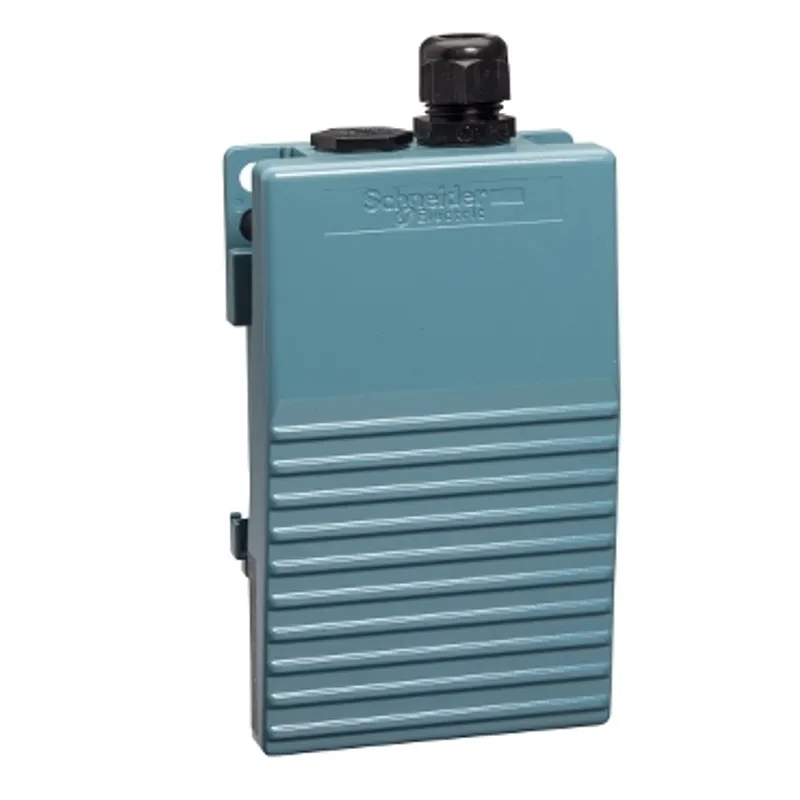

Single foot switch, Harmony XPE, metal, blue, without cover, 1 step, 2 contacts 1NC+NO, IP66
- MPN
- XPEM111
- EAN
- 3389110650129
- Category
- Harmony XPE
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric XPEM111?
This Harmony XPE consists of a blue single-step metal safety foot switch without a protective cover. It features 1 normally open (NO) and 1 normally closed (NC) contact. It preserves the ergonomy of your machines, while ensuring their compliance with the latest safety standards. It provides long life in harsh conditions thanks to its resistance to hydraulic oil and various greases. It weighs 1.220kg (2.690Ib). This foot switch is designed for bending machines, dosing machines, assembly stations, packaging machines, cutting presses, stamping presses, and machine tools. Harmony XPE offers a complete range of foot switches, with or without covers, to provide the appropriate resistance and protection for your applications.
Specifications
Specifications
| Range of product | Harmony XPE |
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Single foot switch |
| Device short name | XPEM |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 2 NC + NO |
| Colour | Blue |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 1.2 kg |
| Standards | IEC 60947-5-1, VDE 0660-200 |
| Product certifications | FIMKO, CSA |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class I conforming to IEC 61140, Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 18.800 cm × 12.000 cm × 8.800 cm (L × W × H), 1.338 kg |
| Package 2 | 4 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 5.733 kg |
| Package 3 | 64 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 101.540 kg |
