Schneider Electric XPEG110

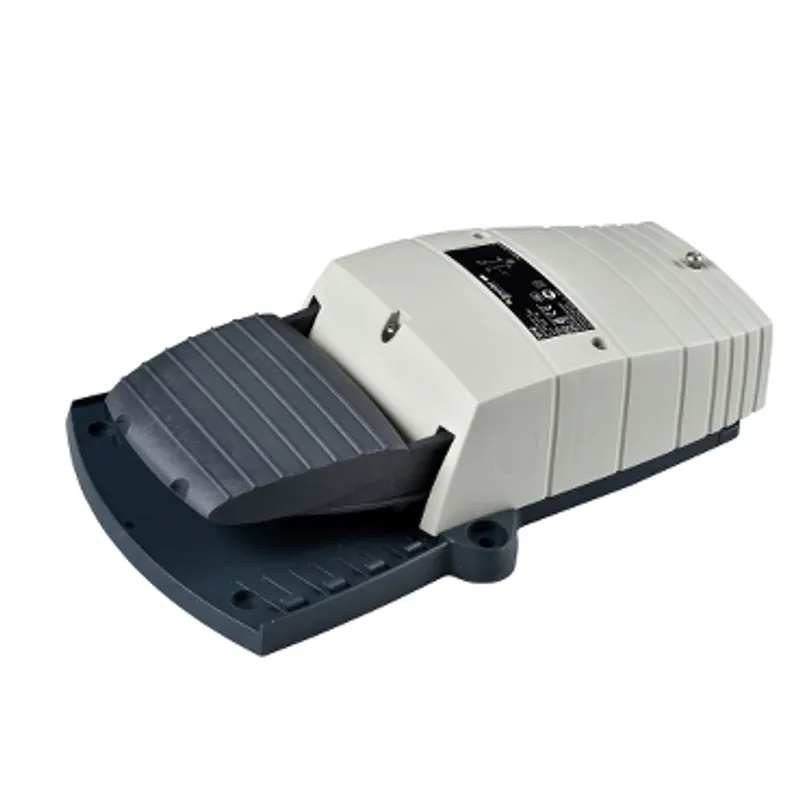

Single foot switch, plastic, Harmony XPE, grey, without cover, 1 step, 1 contact 1NC+NO, IP66
- MPN
- XPEG110
- EAN
- 3389110166637
- Category
- Harmony XPE
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original XPEG110 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric XPEG110?
This Harmony XPEG110 is a single foot switch. Its degree of protection is IP66. It has no cover, plastic material, grey color, 1 NC + 1 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Specifications
Specifications
| Range of product | Harmony XPE |
| Product or component type | Foot switch |
| Material | Plastic |
| Foot switch type | Single foot switch |
| Device short name | XPEG |
| Trigger mechanism | Without trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 1 NC + 1 NO |
| Colour | Grey |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 2 plain holes for M20 cable gland |
| Mechanical durability | 10000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 0.57 kg |
| Standards | UL 508, CSA C22.2 No 14, IEC 60947-5-1 |
| Product certifications | UL, CSA |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140, Class II conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 28.500 cm × 18.000 cm × 11.000 cm (L × W × H), 806.000 g |
| Package 2 | 12 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.320 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
XPEG110: frequently asked questions
Can I still buy the XPEG110 now that it is discontinued?
Yes. Schneider Electric has discontinued the XPEG110, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the XPEB110 as its successor — we can quote both.
When can XPEG110 be shipped?
XPEG110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XPEG110 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XPEG110 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XPEG110, subject to availability and destination.
