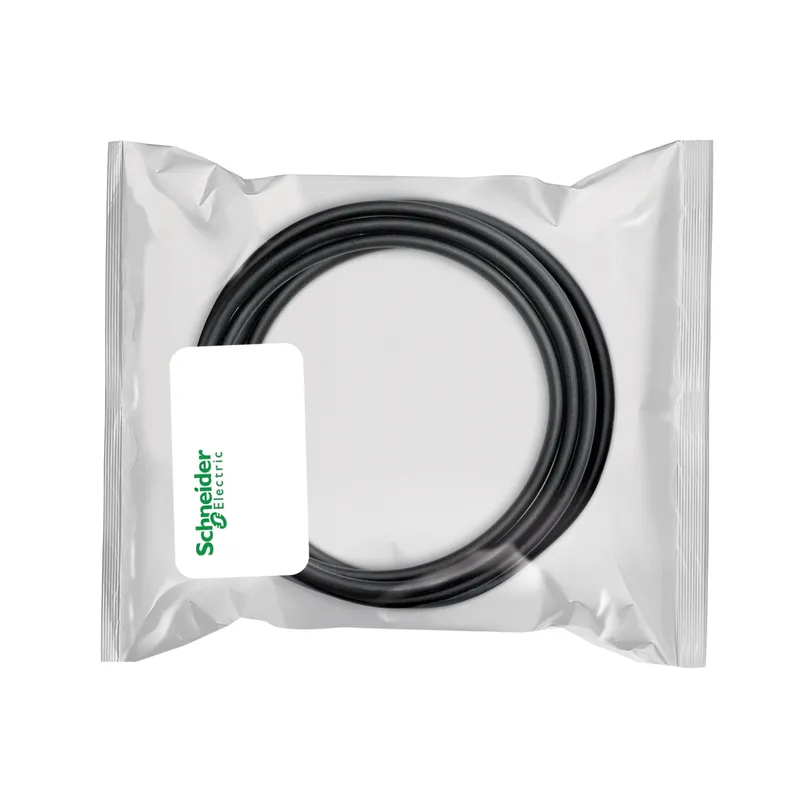

Schneider Electric XBTZG9778 – Harmony XBT - cable for 2-port adaptor - 5 m
Discontinued by Schneider Electric — we can still source the original XBTZG9778 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magelis XBT GT |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | JP |
| UPC / EAN | 3595863885613 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the XBTZG9778 now that it is discontinued?
Yes. Schneider Electric has discontinued the XBTZG9778, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can XBTZG9778 be shipped?
XBTZG9778 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up XBTZG9778 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for XBTZG9778 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for XBTZG9778, subject to availability and destination.
This Magelis XBTZ is a RS 422 cable for connecting Magelis terminals to third-party PLCs. It enables connection of XBTGH and XBTGT terminals to Mitsubishi Melsec PLC with XBTZGCOM1 adaptor. It is equipped with one 9-way SUB-D connector at one end and one free end at the other end, it is 5 meters long. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Harmony XBT |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part designation | Cable for 2-port adaptor |
| Accessory / separate part destination | Connection of XBT terminal to Mitsubishi Melsec PLC with XBTZGCOM1 adaptor |
Complementary
| Product compatibility | XBTGK....; XBTGT4...; XBTGT6...; XBTGT2...; XBTOT...; XBTGT5...; XBTGT7340 |
| Range compatibility | Mitsubishi FX; Mitsubishi QnA CPU; Harmony HMI GTO; Mitsubishi A CPU |
| Cable length | 5 m |
| Electrical connection | 1 connector SUB-D 9; Free end |
| Communication port protocol | QnA CPU (SIO); A CPU (SIO); FX (CPU) |
| Physical interface | RS422 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet XBTZG9778 |
